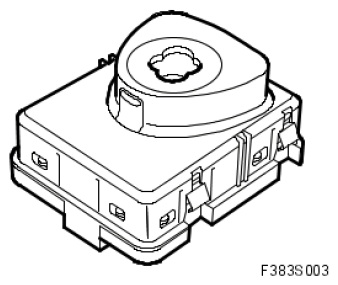

Ignition switch
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. IGNITION SWITCH SPECIFICATIONS
| Communication cable |
Pin 2 |
| +X |
Pin 3 |
| Ground |
Pin 4 |
| +30 |
Pin 5 |
| +B |
Pin 6 |
| +15 |
Pin 12 |
| Key positions |
LOCK, OFF, ON and ST |
| Illumination |
LEDs |
| Key inhibitor |
Solenoid |
