Installation Procedure

  1. NOTE: Only with new windshield pane.

    Apply primer.

  2. Apply adhesive bead.

    Cut into the tip of the cartridge in such a way that a bead of adhesive approximately 13 mm (0.5 in)  thick is produced.

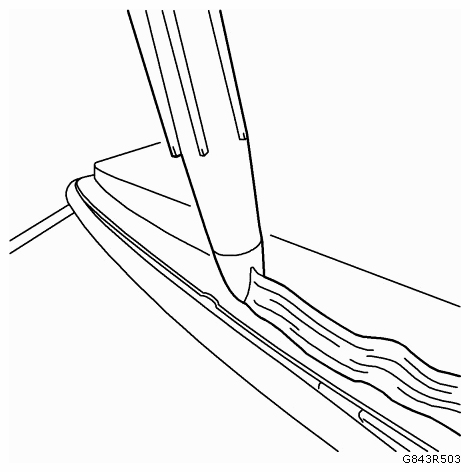

    Fig 1: Applying Adhesive Bead
    G09435620Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install windshield into the opening.
    • Second mechanic required.
    • Insert windshield with BO-641  suction holder.
    • Position using fibre tape.
  4. Remove BO-641  suction holder.
  5. Install lower windshield trim strip.
  6. Install the plenum water deflector. Refer to PLENUM WATER DEFLECTOR REPLACEMENT .
  7. Install the windshield pillar garnish molding. Refer to WINDSHIELD SIDE GARNISH MOLDING REPLACEMENT .
  8. Install the inside rearview mirror. Refer to INSIDE REARVIEW MIRROR REPLACEMENT .
  9. Install the front view camera, if equipped. Refer to FRONT VIEW CAMERA REPLACEMENT (OBJECT LENS CLEANING) or FRONT VIEW CAMERA REPLACEMENT (BASE) .
  10. Install the windshield outside moisture sensor, if equipped. Refer to WINDSHIELD OUTSIDE MOISTURE AND HEADLAMP AUTOMATIC CONTROL AMBIENT LIGHT SENSOR REPLACEMENT .
  11. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  12. Close the hood.
