Front Seat Heater Control Module Replacement (Base)

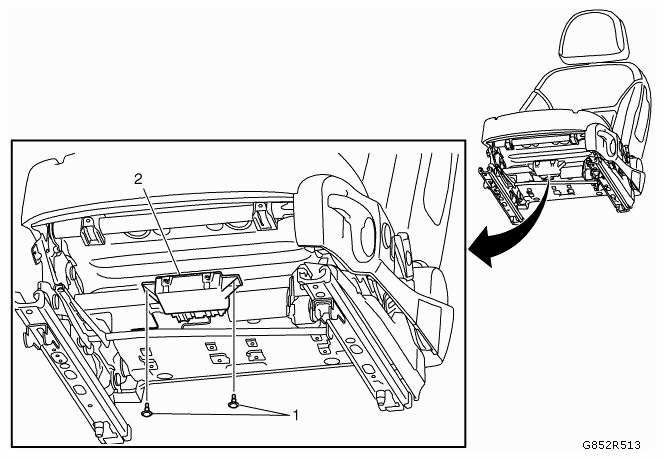

Fig 1: Identifying Front Seat Heater Control Module And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Front Seat Heater Control Fastener (Qty: 2) Refer to FASTENER CAUTION . Procedure  Move the front seat full backward. Move the front seat in upper position. Turn OFF the ignition. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Disconnect wiring harness connectors. Tighten  3, 5 Nm (31 lb in)
2	Front Seat Heater Control Module
