Rear Seat Heater Control Module Replacement

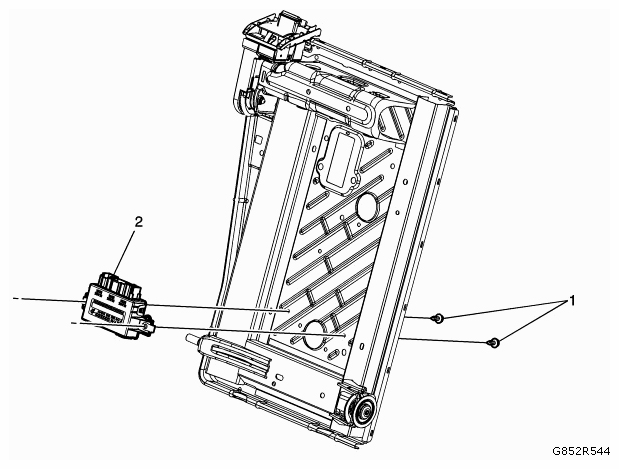

Fig 1: Identifying Rear Seat Heater Control Module And Fastener
G09438118Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove rear seat back cushion cover and pad. Refer to REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (40%)  or REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (60%) .
1 Rear Seat Heater Control Module Fastener (Qty: 2)
2 Rear Seat Heater Control Module
Procedure
  1. Disconnect the electrical connector.
  2. Refer to CONTROL MODULE REFERENCES for programming and setup information.
