Module Power, Ground, Serial Data, and Controls (A45 or AUN)
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module Power, Ground, Serial Data, and Controls (A45 or AUN): Notes

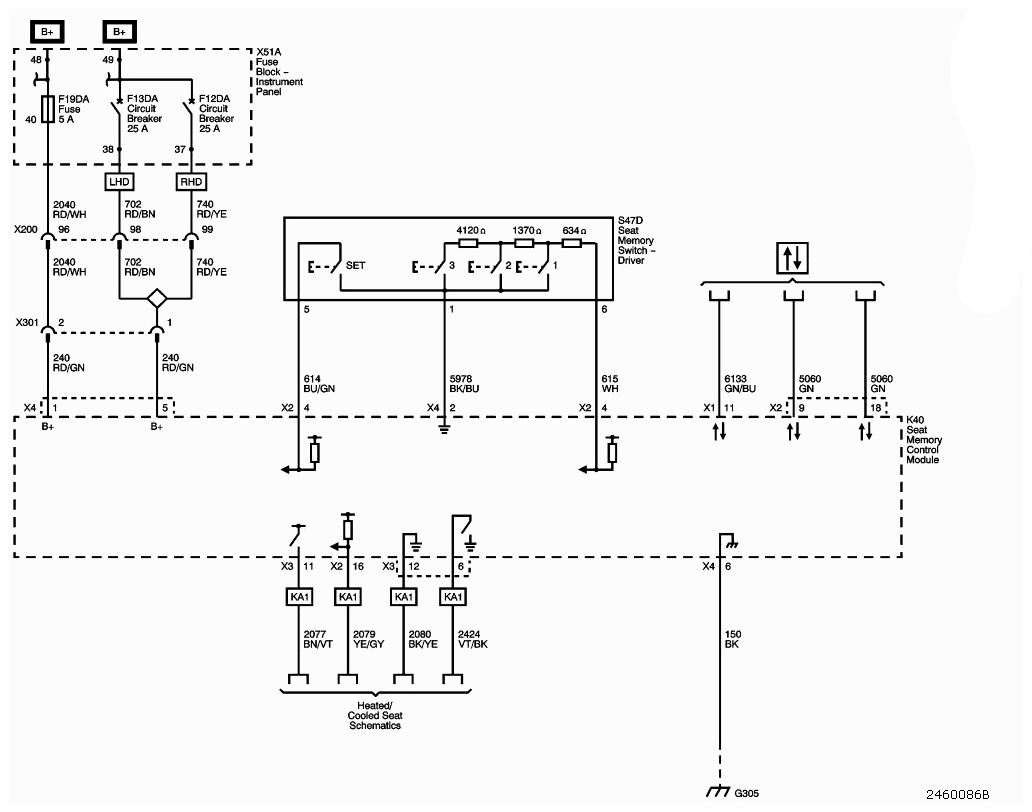

Fig 1: Module Power, Ground, Serial Data And Controls (A45/AUN) - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
