Battery Current Sensor Replacement

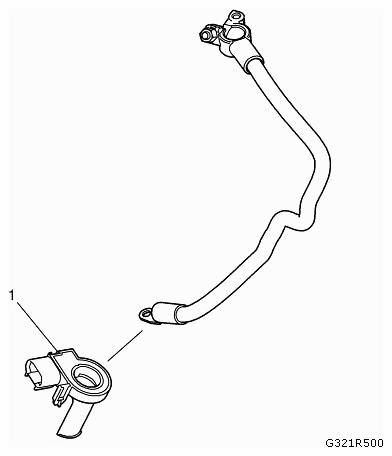

Fig 1: Identifying Battery Current Sensor
G09435143Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the battery negative cable. Refer to BATTERY NEGATIVE CABLE REPLACEMENT (GASOLINE) .
1 Battery Current Sensor
Procedure
  1. Detach electrical connector.
  2. Ensure that the location measurement of the battery current sensor is recorded for reference during installation.
  3. Remove the sensor from the cable.
