Trailer Lamp Control Module Replacement

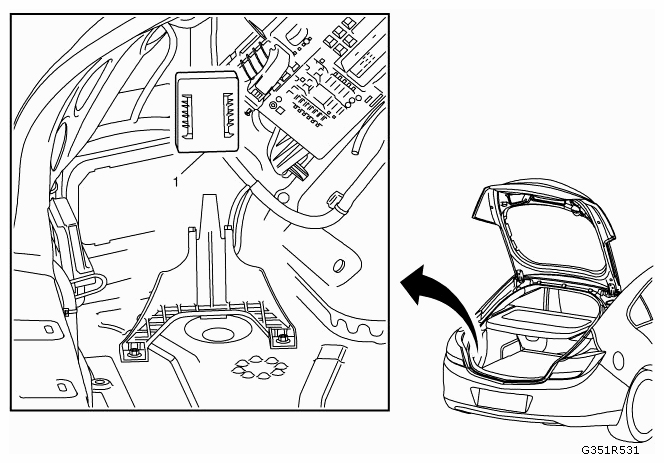

Fig 1: Identifying Trailer Lamp Control Module
G09435163Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Trailer Lamp Control Module
Procedure
  1. Release the trailer lamp control module bracket locking retainer from the trailer lamp control module.
  2. Disconnect the trailer lamp control module electrical connector.
