Engine Block Bottom

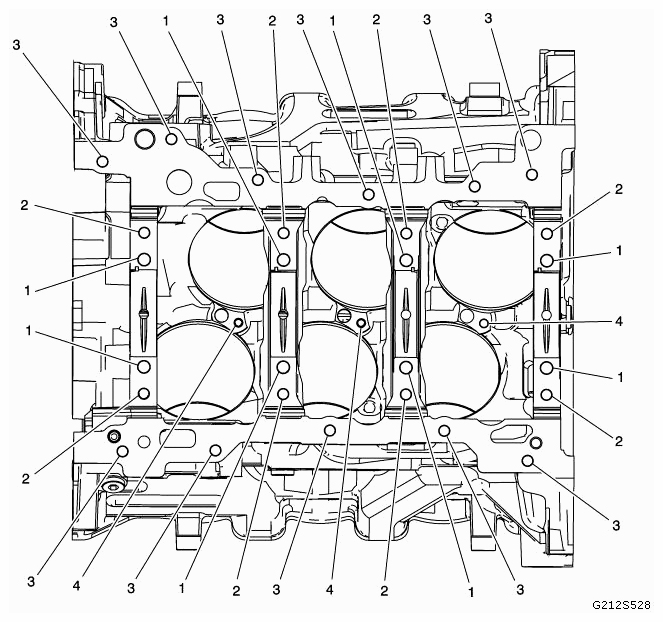

Fig 1: Engine Block Bottom Components Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

THREAD REPAIR SPECIFICATIONS

Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)
		J 42385-						MM	(IN)
1	M10 x 2.0	720	N/A	N/A	721	722	104	56.0	2.2047
2	M8 x 1.25	702	N/A	N/A	703	704	620	46.0	1.8110
3	M8 x 1.25	206	207	N/A	208	209	210	28.5	1.1220
4	M6 x 1.0	201	202	N/A	203	204	205	THRU
