Engine Block Front

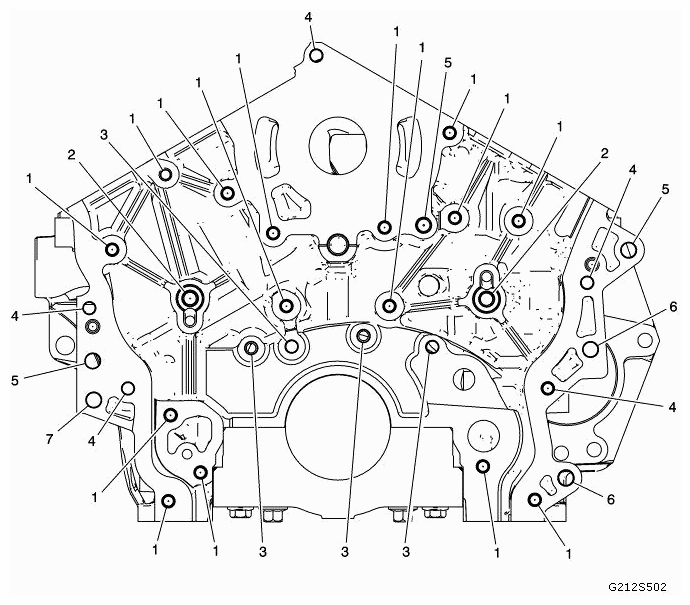

Fig 1: Engine Block Front Components Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

THREAD REPAIR SPECIFICATIONS

Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)
		J 42385-						MM	(IN)
1	M8 x 1.25	206	207	N/A	208	209	210	28.5	1.1220
2	M10 x 1.5	211	212	N/A	213	214	215	33.5	1.3189
3	M8 x 1.25	206	207	N/A	208	209	210	THRU
4	M8 x 1.25	206	207	N/A	208	209	210	THRU
5	M10 x 1.5	211	212	N/A	213	214	215	28.0	1.1024
6	M10 x 1.5	211	212	N/A	213	214	215	THRU
7	M10 x 1.5	211	212	N/A	213	214	215	THRU
