Engine Block Right Side

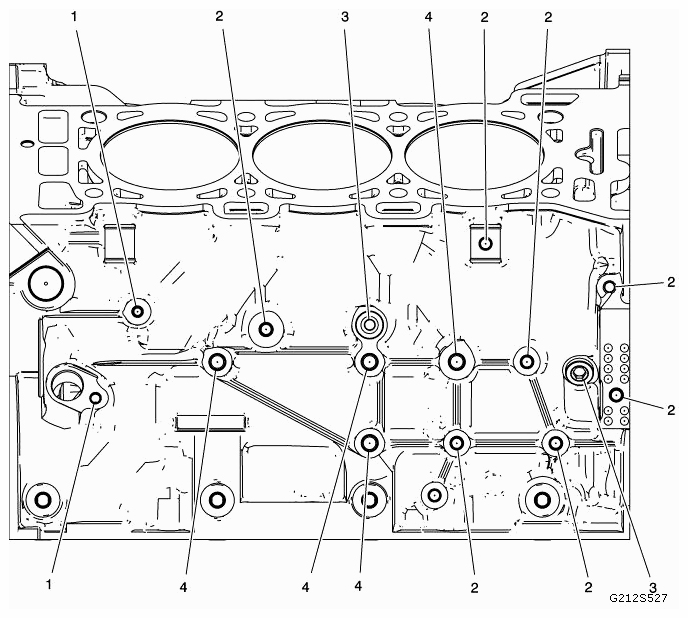

Fig 1: Engine Block Right Side Components Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

THREAD REPAIR SPECIFICATIONS

Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)
		J 42385-						MM	(IN)
1	M6 x 1.0	201	202	N/A	203	204	205	22.5	0.8858
2	M8 x 1.25	206	207	N/A	208	209	210	28.5	1.1220
3	M14 x 1.5	409	410	N/A	411	412	735	THRU
4	M10 x 1.5	211	212	N/A	213	214	215	33.5	1.3190
