Controlled/Monitored Subsystem References: Notes

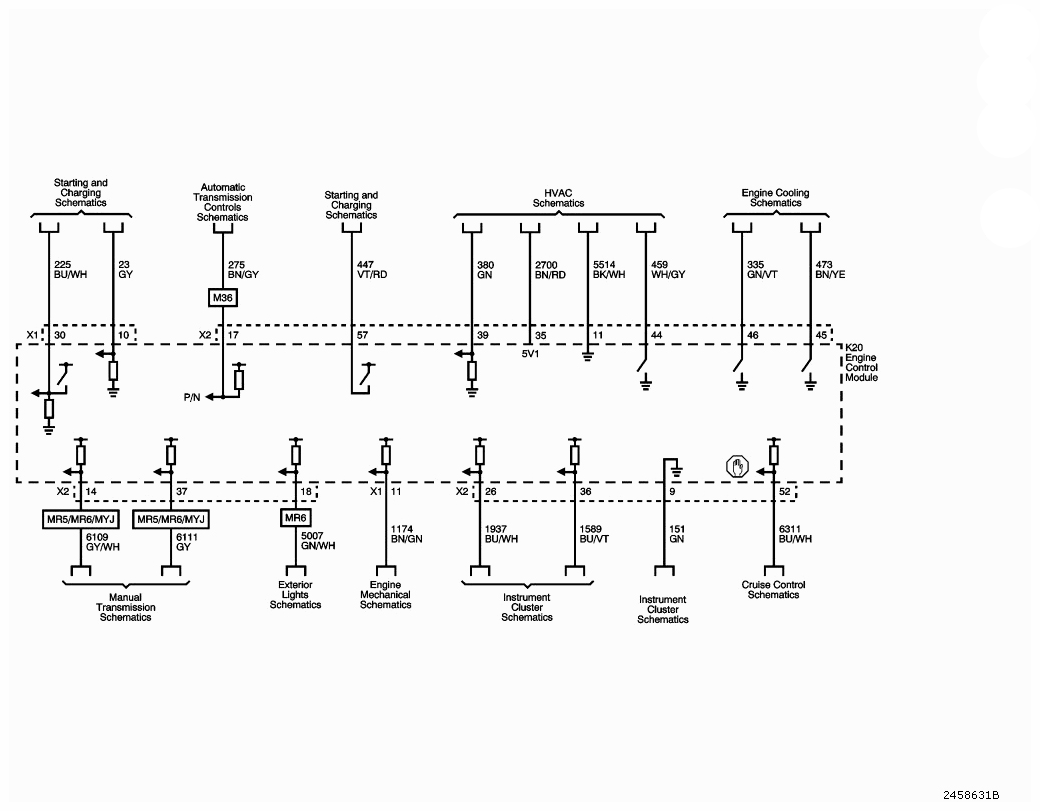

Fig 1: Controlled/Monitored Subsystem References - Wiring Diagram
G09407953Courtesy of SAAB-SCANIA OF AMERICA, INC.
