Module Power, Ground, Serial Data, and MIL: Notes

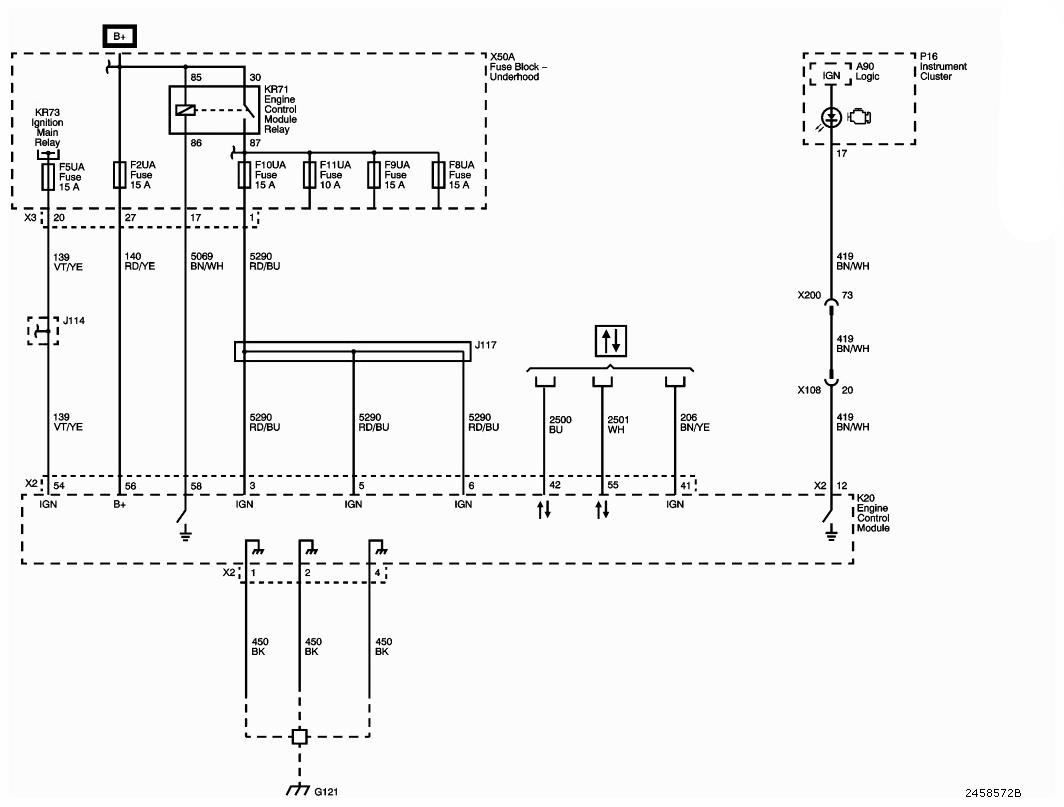

Fig 1: Module Power, Ground, Serial Data, And MIL - Wiring Diagram
G09407943Courtesy of SAAB-SCANIA OF AMERICA, INC.
