Connector H8-6

Location:  black connector on the side panel between the REC and the wheel housing

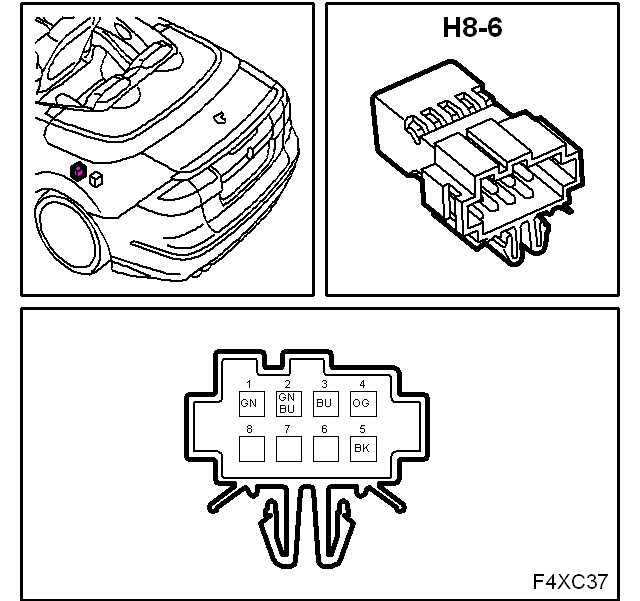

Fig 1: Identifying Connector H8-6
G05054511Courtesy of SAAB-SCANIA OF AMERICA, INC.
