Headlamp control module (682)
WARNING:
This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
on underside of headlamp assembly
FL

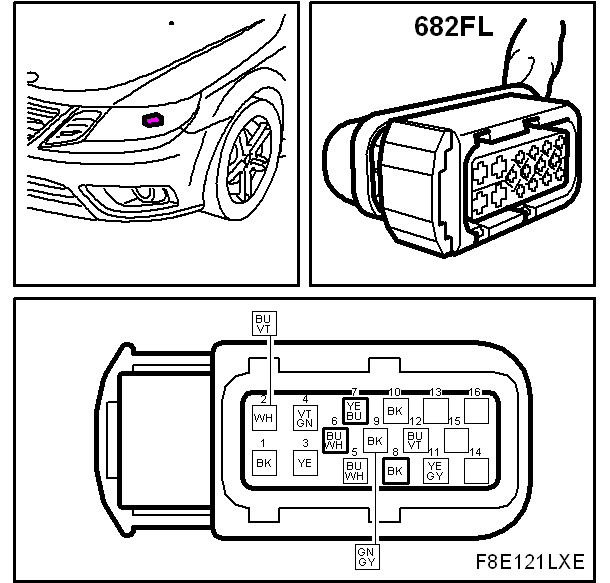

Fig 1: Identifying Headlamp Control Module (682) Connector Pinouts - FL
Courtesy of SAAB-SCANIA OF AMERICA, INC.
FR

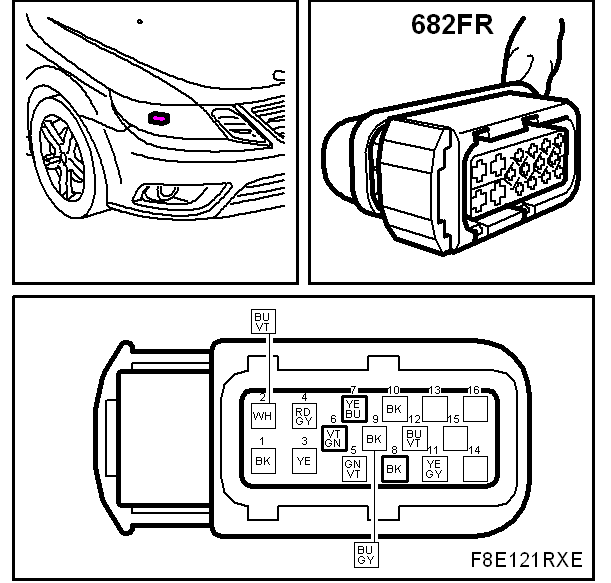

Fig 2: Identifying Headlamp Control Module (682) Connector Pinouts - FR
Courtesy of SAAB-SCANIA OF AMERICA, INC.
