Light switch unit (684)
WARNING:
This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
on dashboard between steering wheel and driver's door

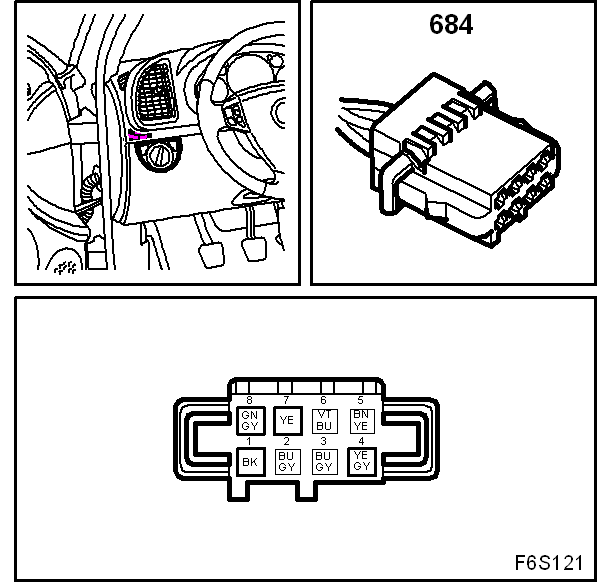

Fig 1: Identifying Light Switch Unit (684) Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
