To fit

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the connector.

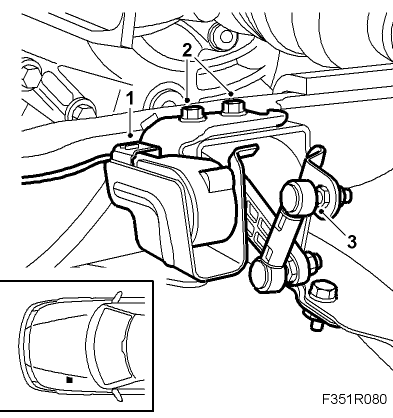

    Fig 1: Illustration For Steps 1-3
    G05055409Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refit console with sensor.
  3. Refit upper ball section in link arm.
  4. Carry out AHL control module calibration .
