To remove

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the upper ball section in the link arm.

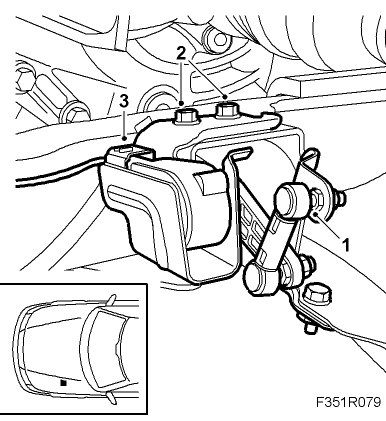

    Fig 1: Illustration For Steps 1-3
    G05055408Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the console and sensor.
  3. Separate connector.
