Grounding point G3, CV: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

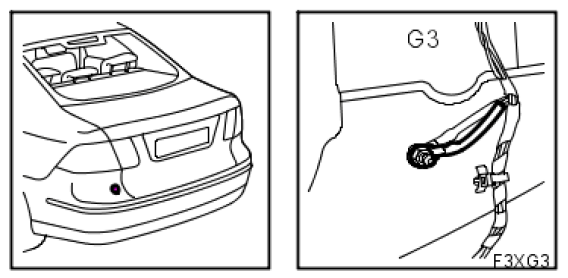

Fig 1: Identifying Grounding Point G3, CV
G05568241Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In luggage compartment below left light cluster
