Microswitch, bootlid/tailgate: Fitting

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Fit the microswitch.

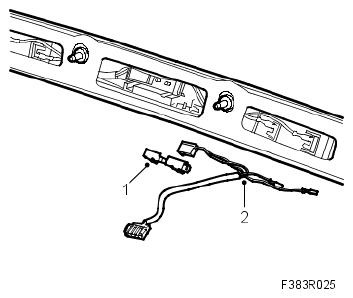

Fig 1: Illustrations For Steps 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Plug in the flat pin connector. Use a screwdriver to lift up the seal.
Fit the catch securing the microswitch. Make sure it engages properly.
Fit the molding to the bootlid.

Fig 2: Illustrations For Steps 4-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the nuts securing the molding to the bootlid.
Plug in the microswitch connector.
Fit the bootlid trim. See BOOT LID TRIM .

Fig 3: Identifying Bootlid Trim
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Functional check
