Microswitch, bootlid/tailgate: Removing

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bootlid trim. See BOOT LID TRIM .

Fig 1: Identifying Bootlid Trim
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the microswitch connector.

Fig 2: Illustrations For Steps 2-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the 4 nuts securing the molding to the bootlid.
Press in the clips securing the molding. Pull out the molding.
Remove the catch securing the microswitch using a screwdriver in the edge of the catch.
Unplug the flat pin connector to the microswitch.

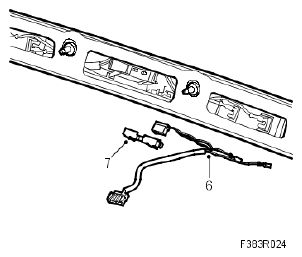

Fig 3: Illustrations For Steps 6-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the microswitch.
