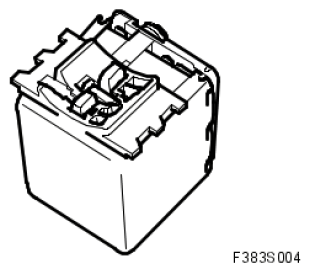

Steering column lock
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. STEERING COLUMN LOCK SPECIFICATIONS
| +30 |
Pin 1 |
| Ground |
Pin 2 |
| Trigger from CIM |
Pin 3 |
| Communication cable <-> CIM |
Pin 4 |
| Motor, lock/unlock |
12V |
| Motor, unlocked and secured |
12V |
