Turn Signal Multifunction Switch Replacement

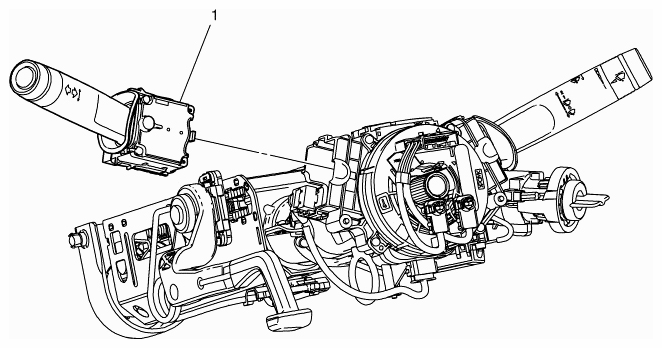

Fig 1: Identifying Turn Signal Multifunction Switch
G09405616Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the steering column shroud. Refer to STEERING COLUMN SHROUD REPLACEMENT .
1 Turn Signal Multifunction Switch
Procedure
  1. Disconnect any electrical connectors.
  2. Depress the locking tabs to remove the turn signal multifunction switch.
