Keyless Entry Control Module Replacement

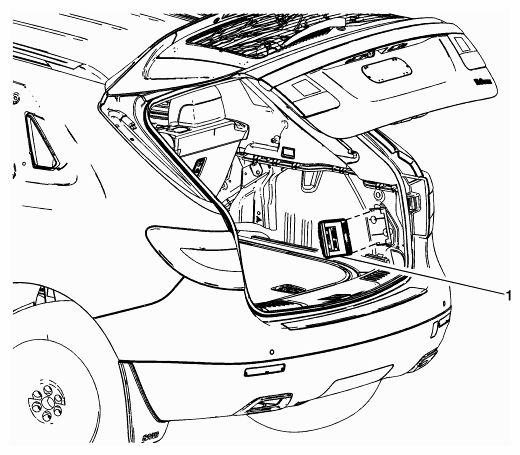

Fig 1: Removing Keyless Entry Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures Remove the right body side trim panel. Refer to BODY SIDE TRIM PANEL REPLACEMENT .
1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Unsnap the receiver from the bracket. For programming and set up, refer to CONTROL MODULE REFERENCES
