Installation Procedure

  1. Install the fuel feed line (3) into the plastic retainers (2).

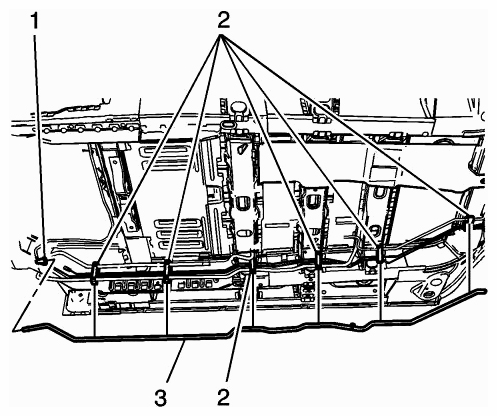

    Fig 1: Identifying Fuel Feed Line Quick Connect, Fuel Feed Line And Plastic Retainers
    G09405062Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the fuel feed line quick connect (1). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .
  3. Install the fuel pressure sensor. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe .
  4. Engage the fuel feed line (1) to the plastic retainer (2).

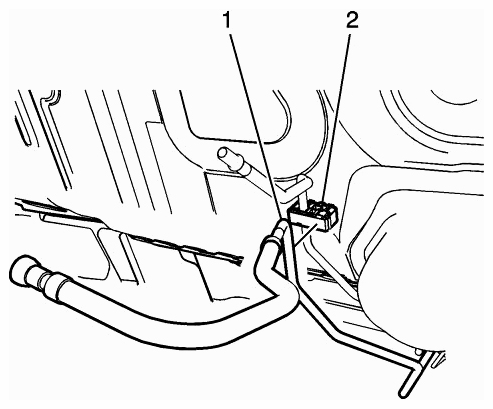

    Fig 2: Identifying Fuel Feed Line And Plastic Retainer
    G09405063Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Connect the fuel feed line (1). Refer to METAL COLLAR QUICK CONNECT FITTING SERVICE .

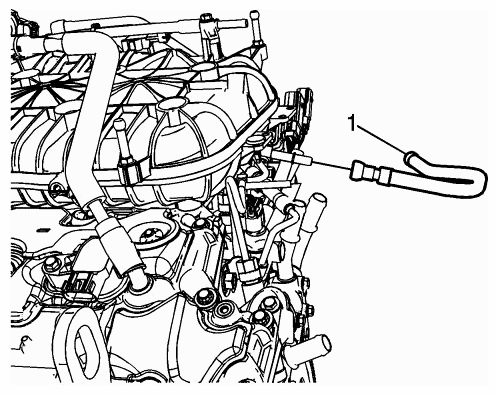

Fig 3: Identifying Fuel Feed Line
G09405064Courtesy of SAAB-SCANIA OF AMERICA, INC.
