Installation Procedure

Install the EBCM seals, if removed.

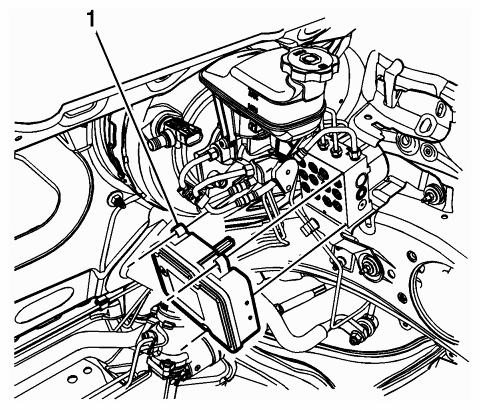

Fig 1: Identifying EBCM Seals
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the EBCM (1) to the BPMV.
Refer to CAUTION: RETAINER .

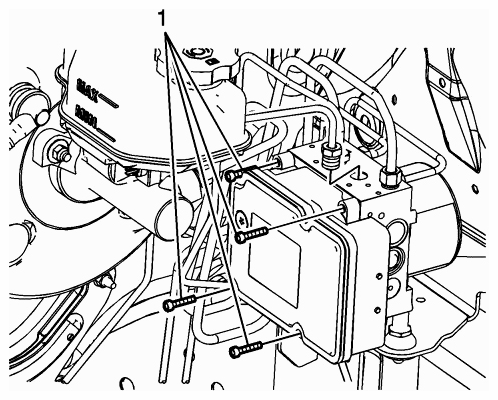

Install the EBCM bolts (1) and tighten in a crosswise pattern to 3 Nm (27 lb in).

Fig 2: Identifying EBCM Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the master cylinder heat shield, if equipped.

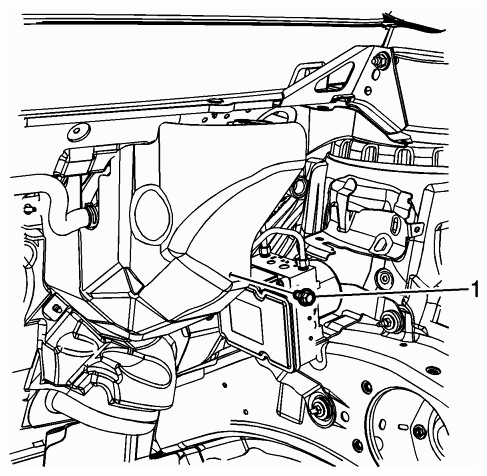

Fig 3: Identifying Master Cylinder Heat Shield Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the master cylinder heat shield bolt (1) and tighten to 10 Nm (89 lb in).
NOTE: Lift the dash panel insulator slightly to install the upper master cylinder heat shield nut.

Install the master cylinder heat shield nuts (1) and tighten to 25 Nm (18 lb ft).

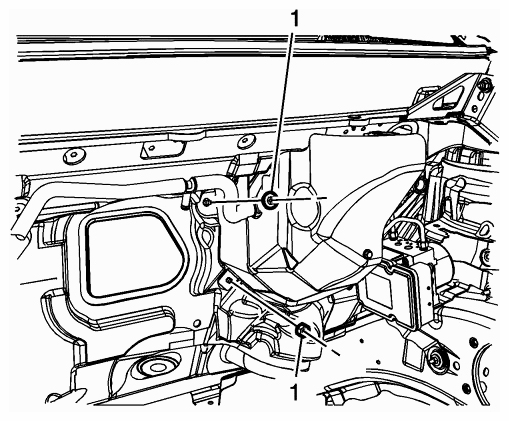

Fig 4: Identifying Master Cylinder Heat Shield Nuts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the radiator surge tank. Refer to RADIATOR SURGE TANK REPLACEMENT (LAU) or RADIATOR SURGE TANK REPLACEMENT (LF1) .
If a new EBCM is installed it must be programmed. Refer to CONTROL MODULE REFERENCES .
Perform the DIAGNOSTIC SYSTEM CHECK - VEHICLE .
