Installation Procedure

Connect the wheel speed sensor electrical connector (1) and secure the connector to the steering knuckle.

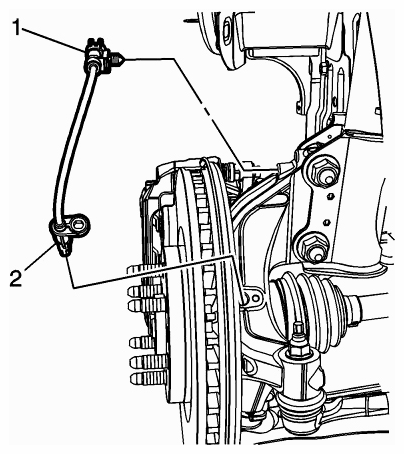

Fig 1: Identifying Wheel Speed Sensor And Electrical Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the wheel speed sensor (2) to the steering knuckle.
Refer to CAUTION: RETAINER
Install the wheel speed sensor bolt (1) and tighten to 9 Nm (80 lb in).

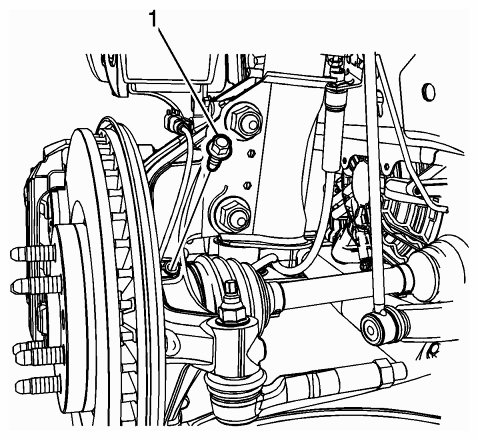

Fig 2: Identifying Wheel Speed Sensor Bolt
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Perform the DIAGNOSTIC SYSTEM CHECK - VEHICLE .
