Fuel Pump Flow Control Module Replacement

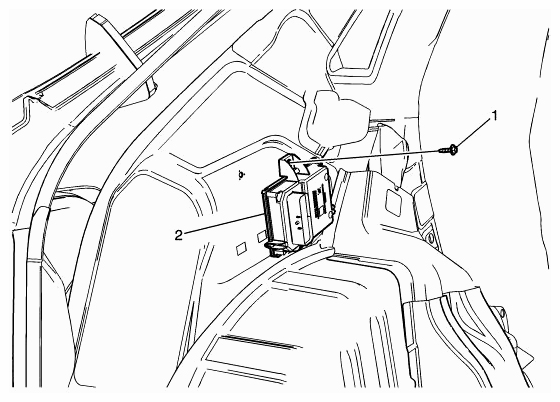

Fig 1: Identifying Fuel Pump Flow Control Module And Mounting Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Fuel Pump Flow Control Module Fastener Refer to CAUTION: RETAINER Tighten 8 Nm (71 lb in)
2	Fuel Pump Flow Control Module Procedure Remove the left body side trim panel. Refer to BODY SIDE TRIM PANEL REPLACEMENT . Disconnect the electrical connector. If replacing, reprogram the module. Refer to CONTROL MODULE REFERENCES
