Steering Power Variable Control Module Replacement

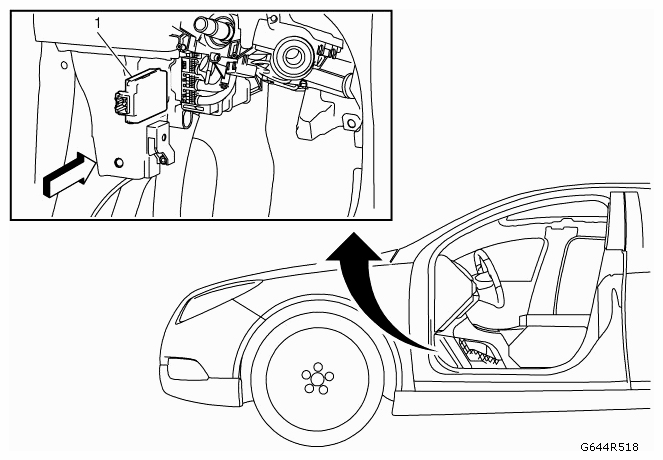

Fig 1: Identifying Steering Power Variable Control Module Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Procedure  Disconnect the battery, refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION Remove the Instrument panel lower trim panel insulator, refer to INSTRUMENT PANEL LOWER TRIM PANEL INSULATOR REPLACEMENT - DRIVER SIDE
1	Steering Power Variable Control Module Procedure  Release the control module from its clips. Disconnect the connector from the control module. Refer to CONTROL MODULE REFERENCES for programming and setup information.
