Passive Restraint Control Module

Chime/Delayed Dome:

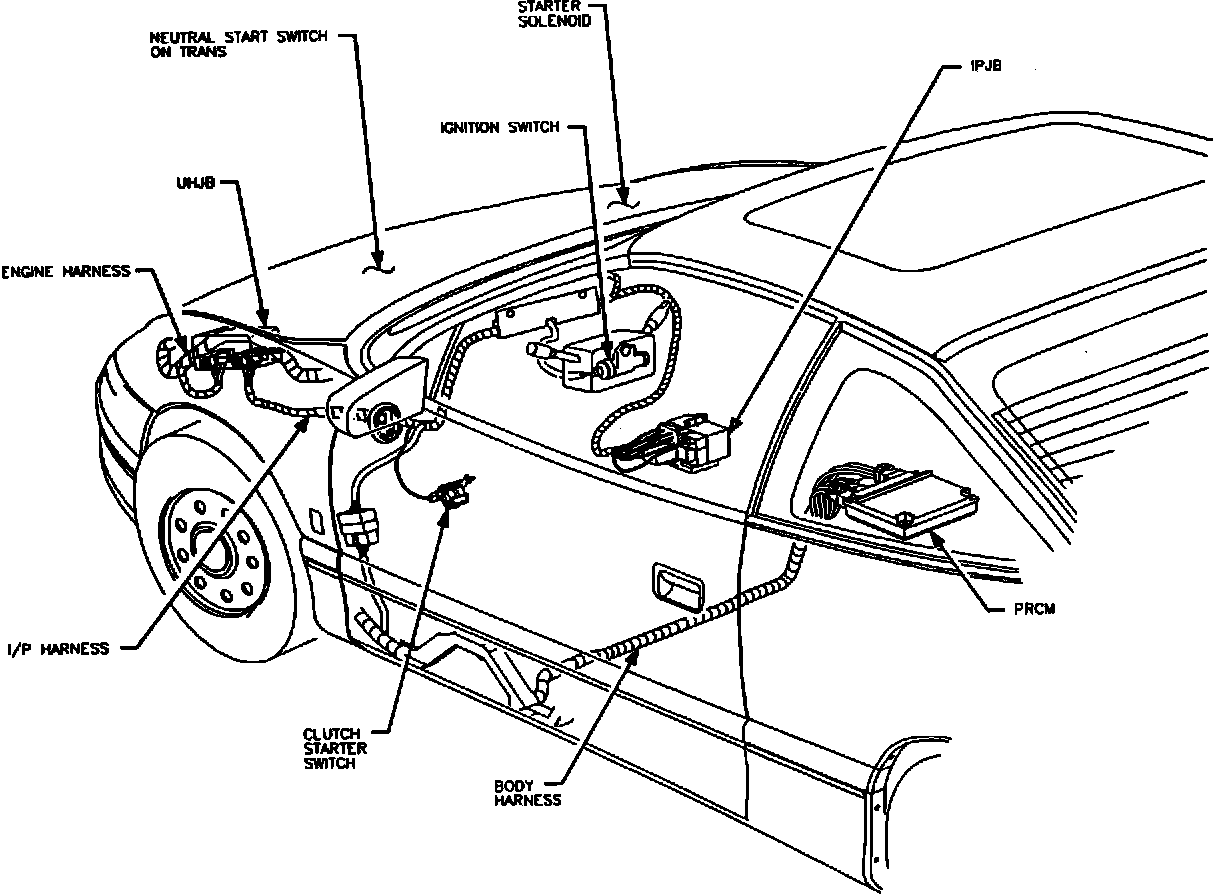

Ignition Switch:




I/P Cluster Indicators:

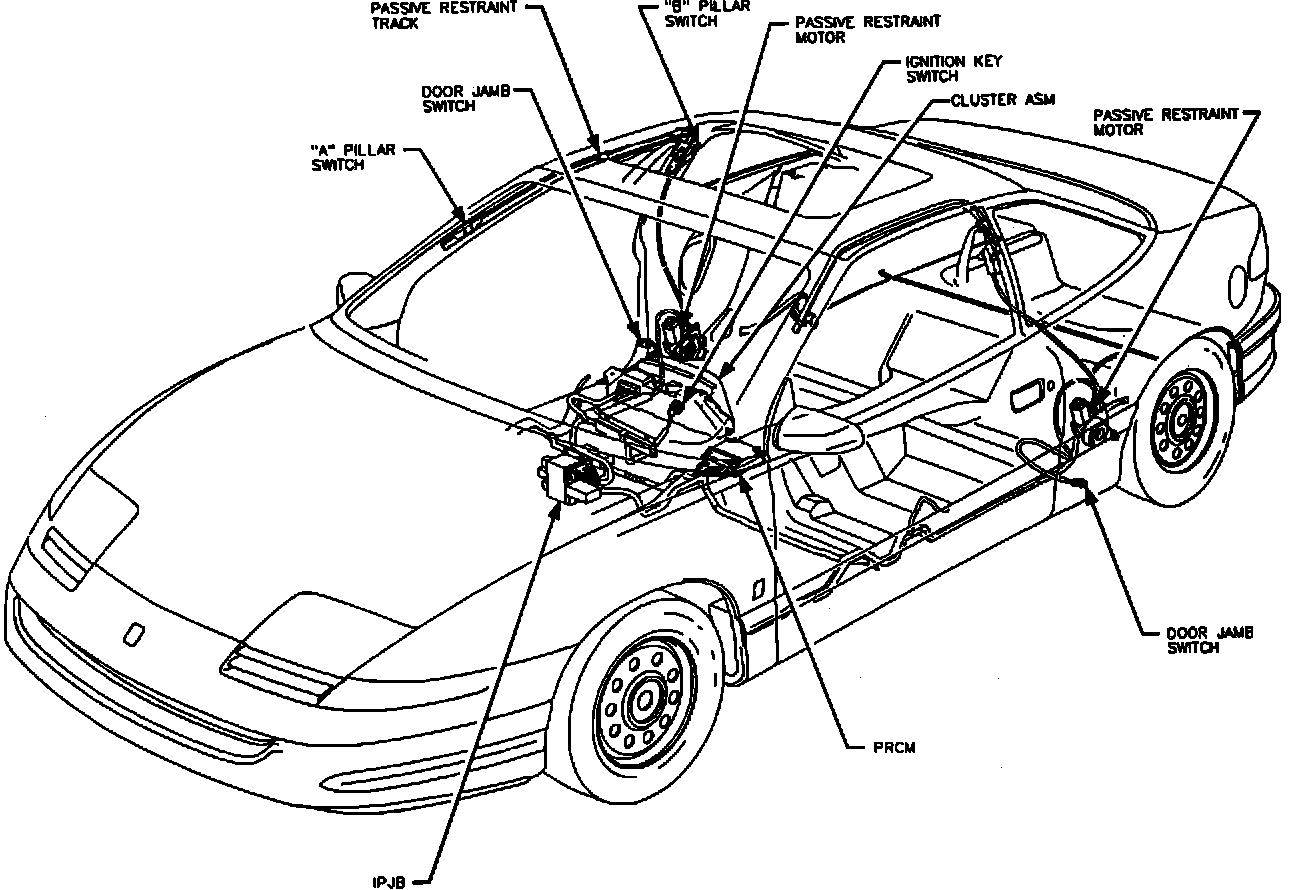

Passive Restraint System:




Under RH Side Of Front Seat
