Front Toe Adjustment

Front Wheel Toe In/Out Adjustment:

Rear wheel alignment must be set to specifications before front alignment adjustment.


1. Lock steering wheel in straight ahead position.
2. Loosen left and right outer tie rod jam nuts.

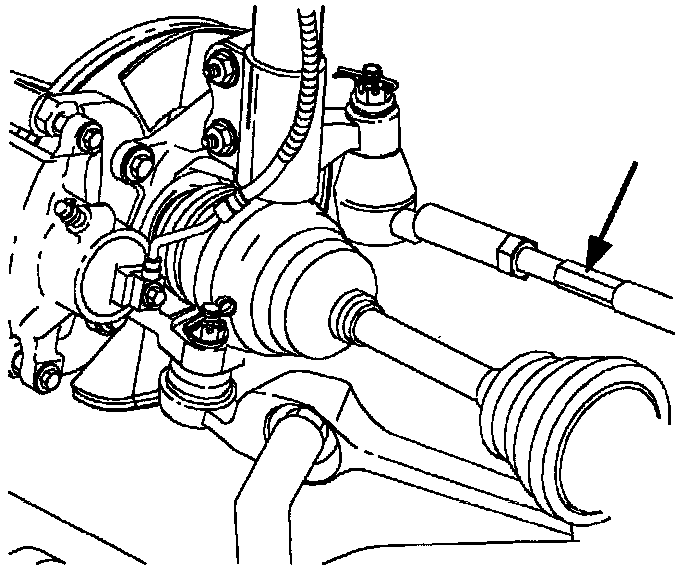

3. Turn inner tie rod, by flats, to change toe.
4. After adjustment, torque outer tie rod end jam nuts 100 Nm (74 ft lbs).
5. Ensure seals do not become twisted.
6. Recheck toe angle.
