EGR Control Module: Service and Repair

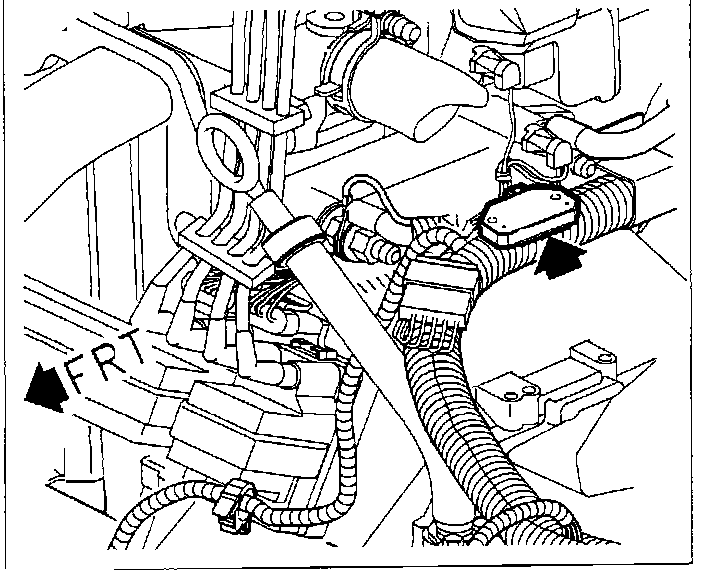

Linear EGR Module.:






REMOVAL

1. Cut tape which attaches module to harness conduit.


2. Disconnect electrical connector.


INSTALLATION

1. Connect electrical connector.


2. Retape module to harness conduit.
