Scan Tool Data Values

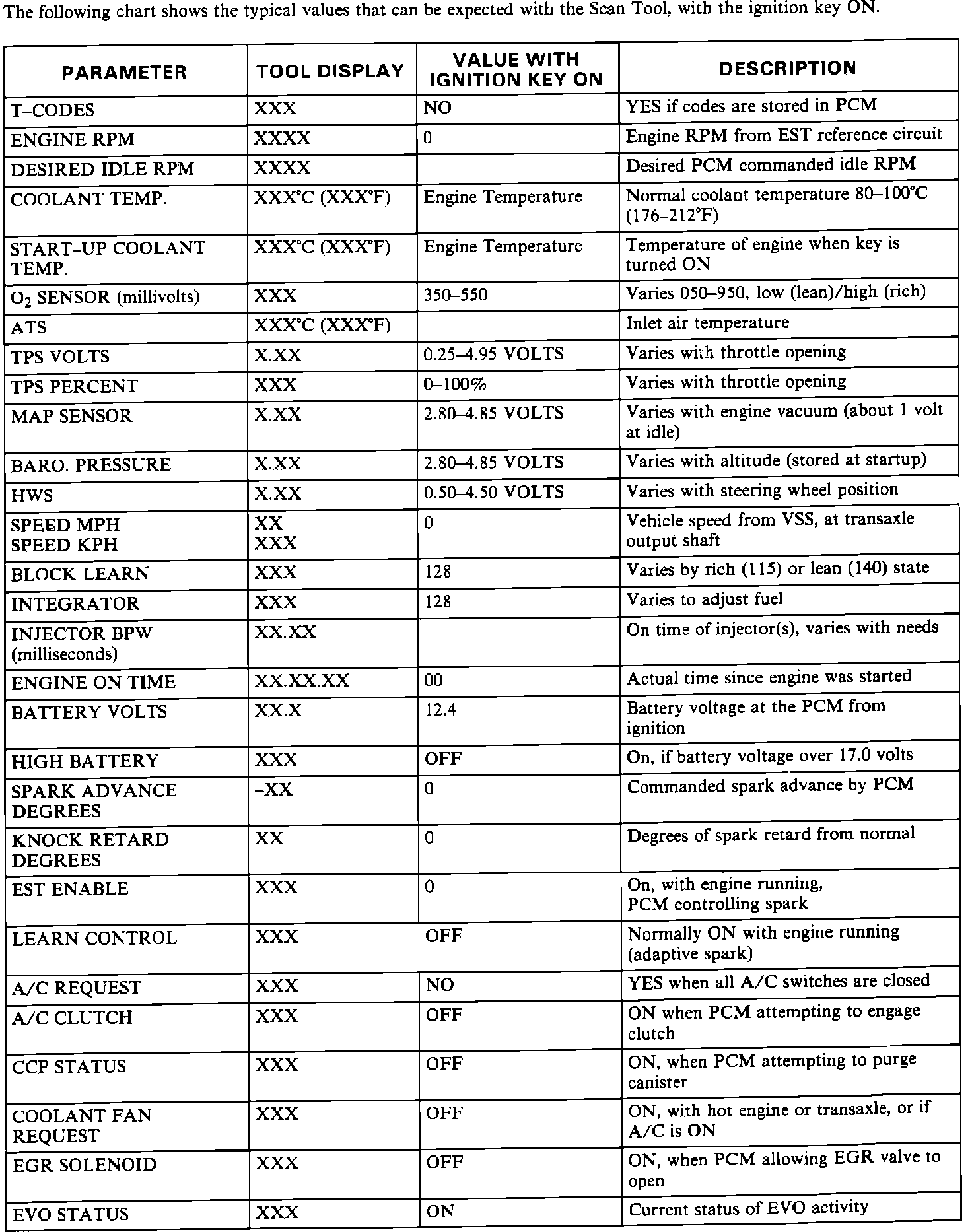

Typical Values With Scan Tools.:

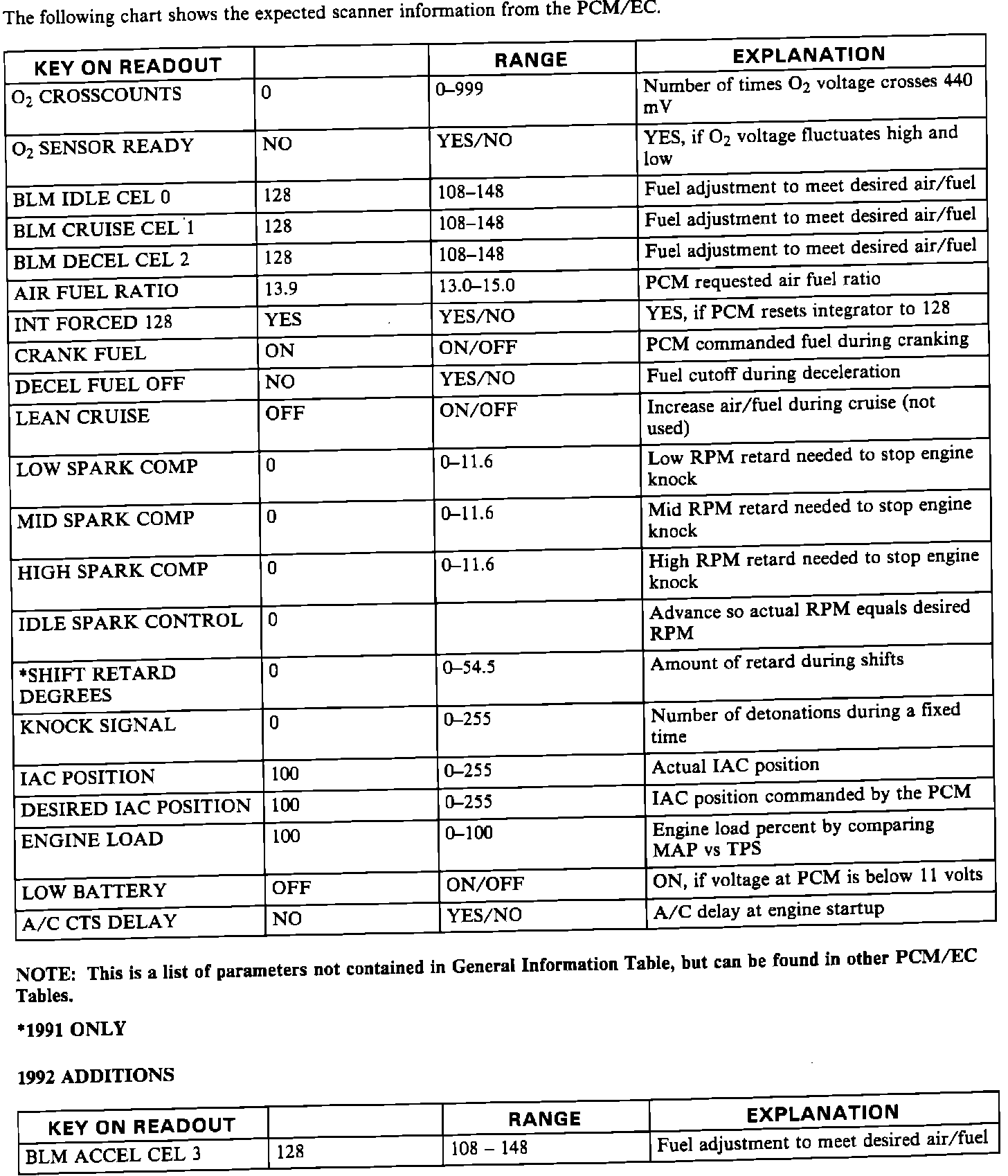

Typical Values With Scan Tools.:

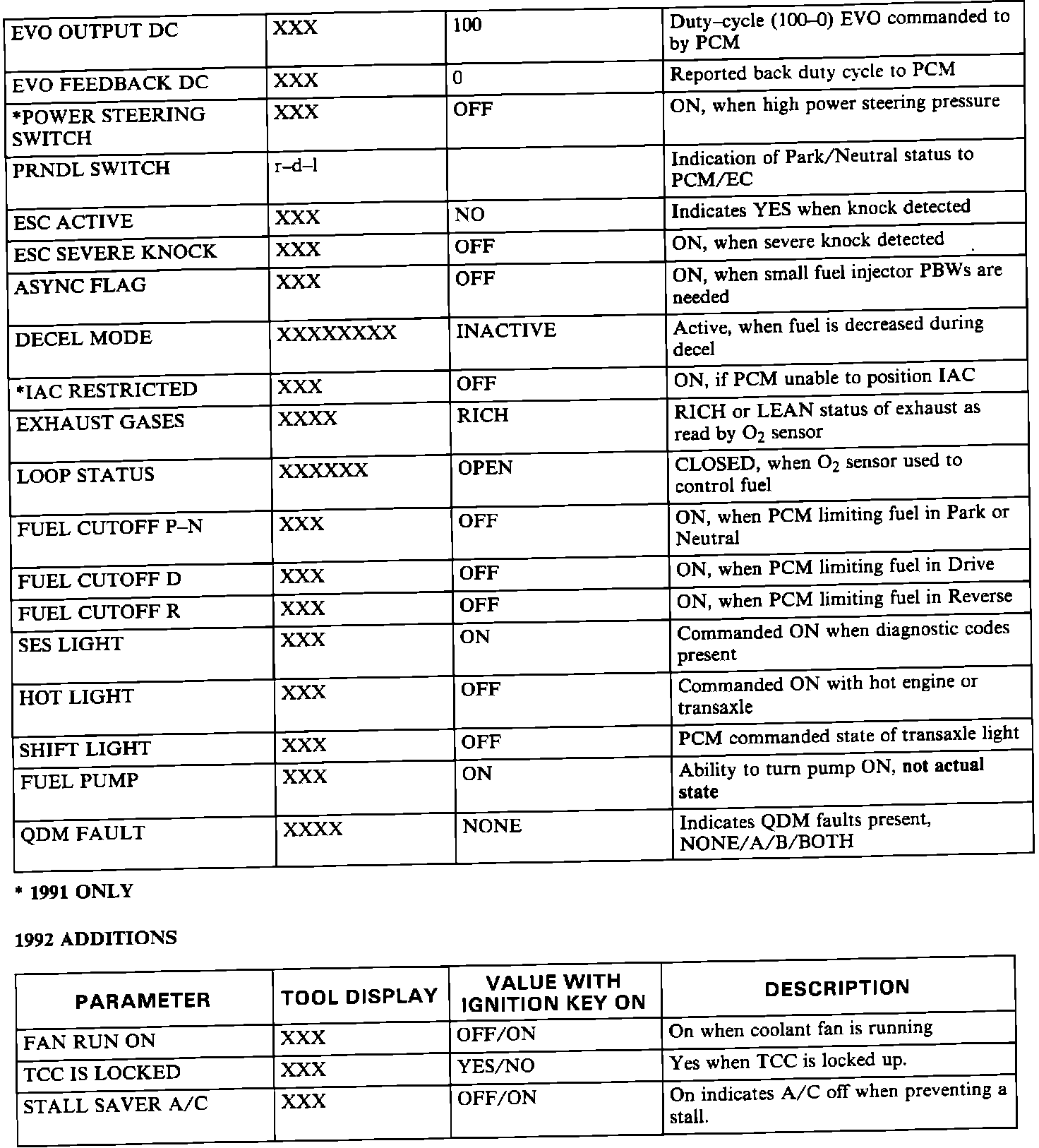

Typical Values With Scan Tools.:

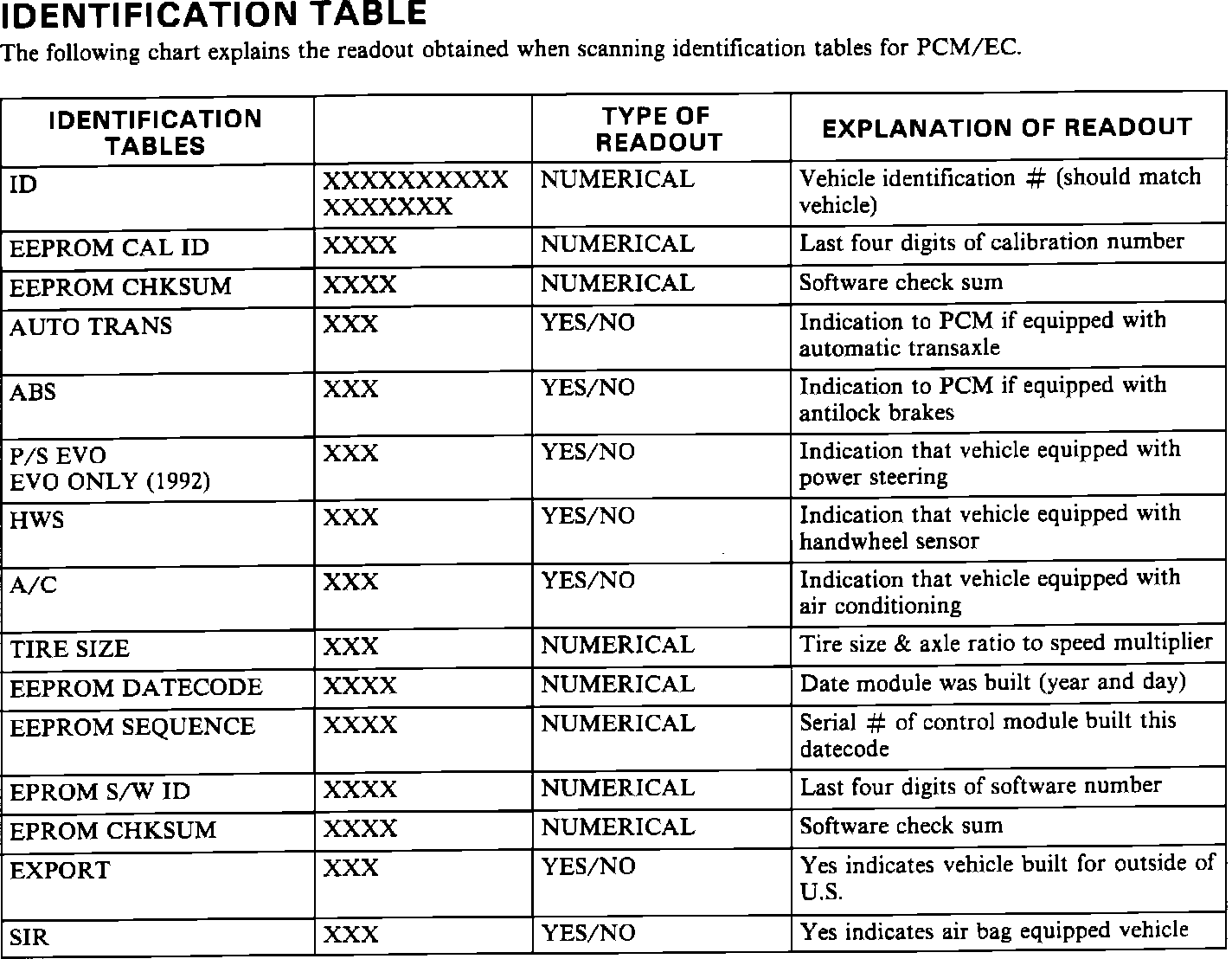

Identification Table.:

The charts show the typical values that can be expected with a Saturn scan tool, with the ignition key "ON". Some scan tools may not show this information. Check with the scan tool manufacturer for compatibility with the SATURN scan tool.
