Multifunction Switch Logic

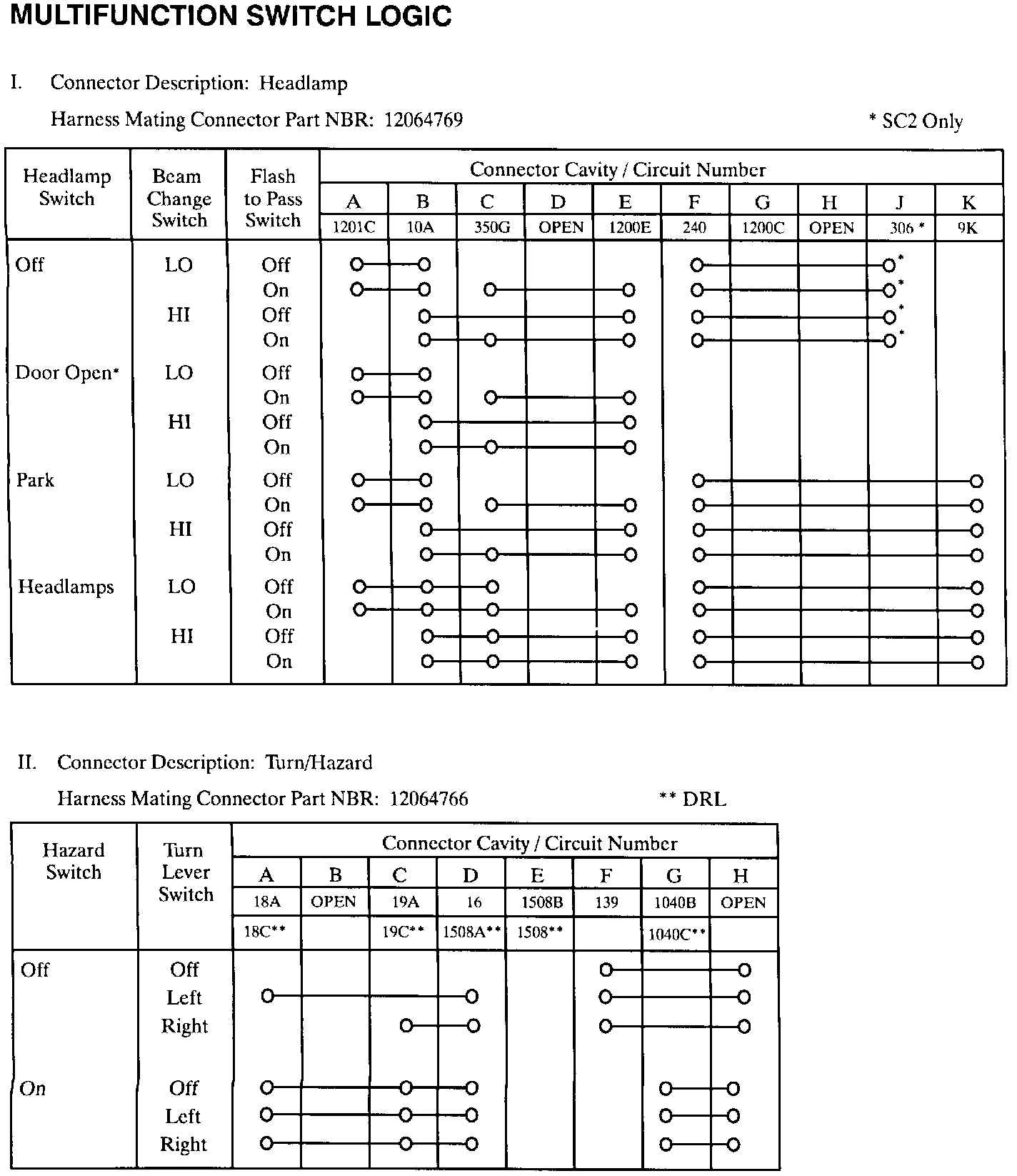

Multifunction Switch Logic (Part 1 Of 3):




Multifunction Switch Logic (Part 2 Of 3):

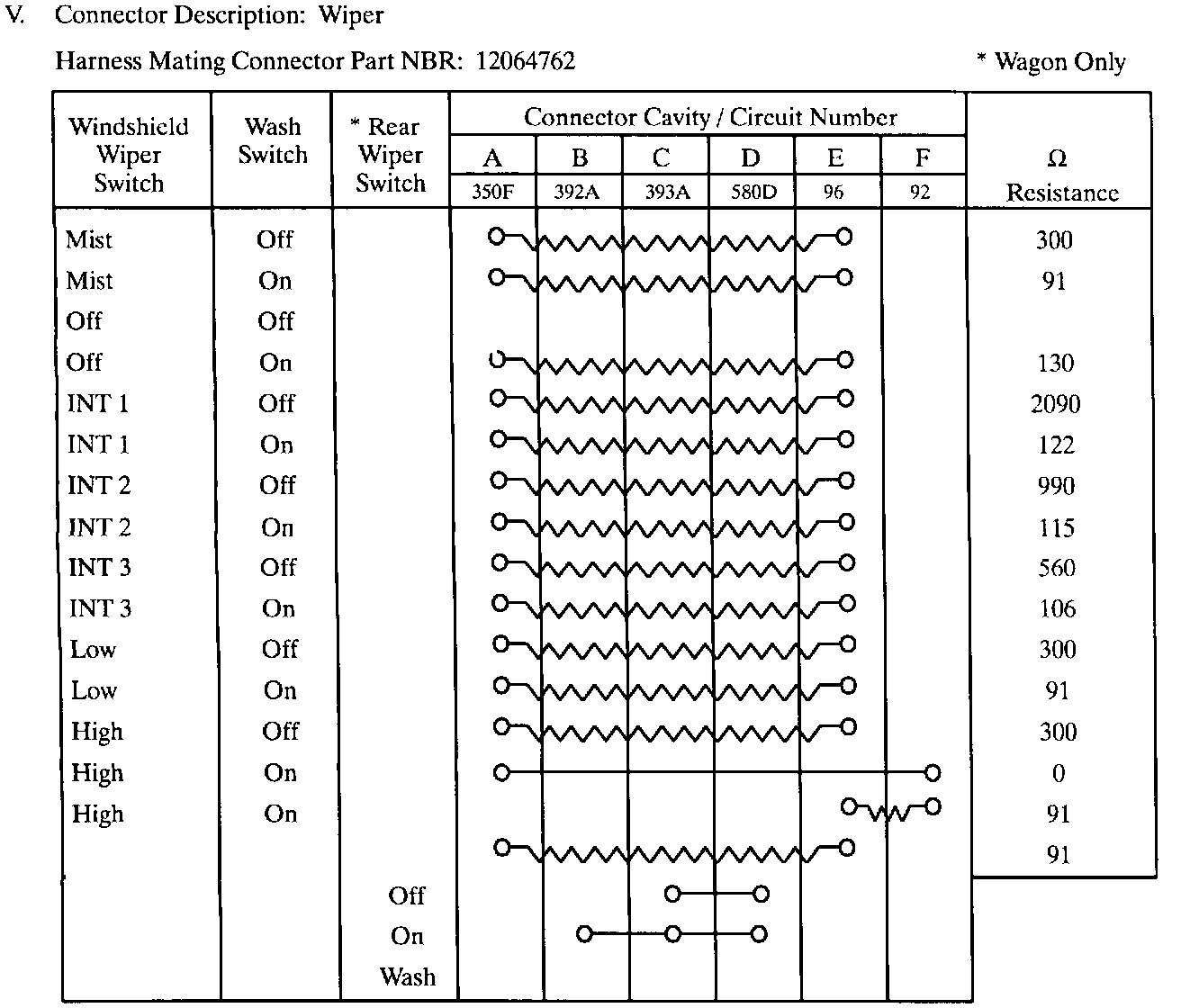

Multifunction Switch Logic (Part 3 Of 3):
