Powertrain Control Module / Serial Data

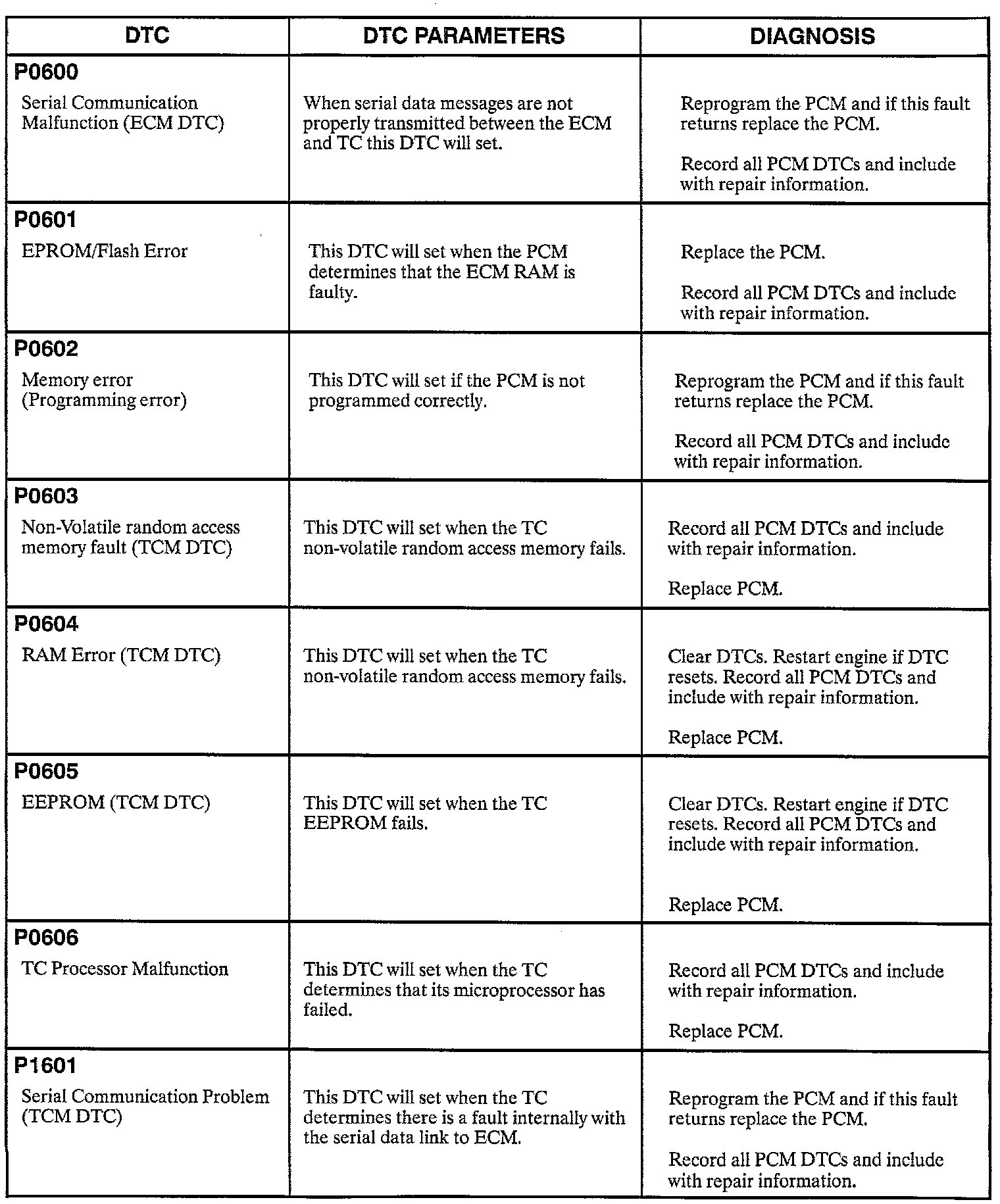

Diagnostic Chart:

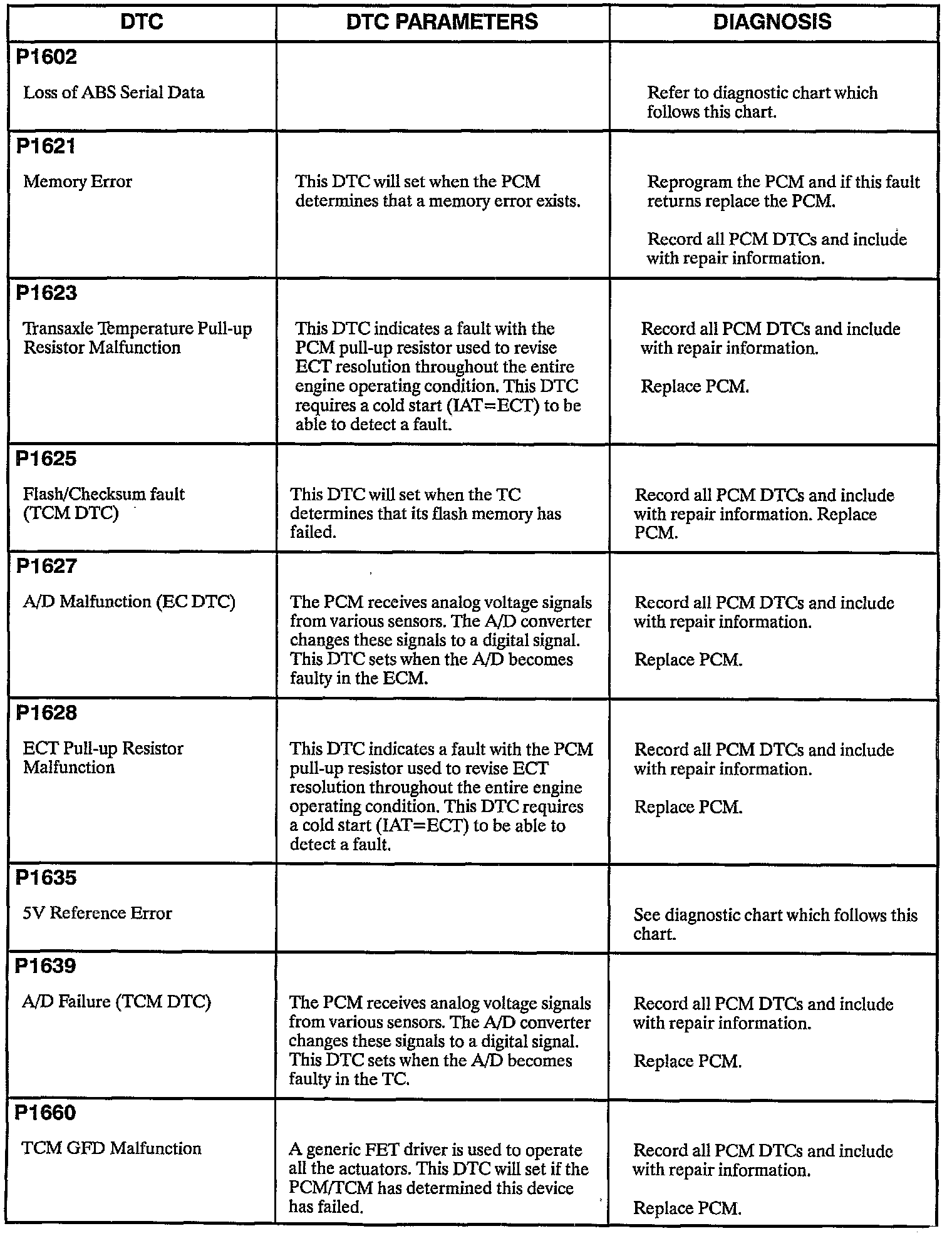

Diagnostic Chart (cont'd):
Diagnostic Chart (cont'd):
