Audible Warning Device Control Module: Service and Repair

Chime Module:

REMOVAL

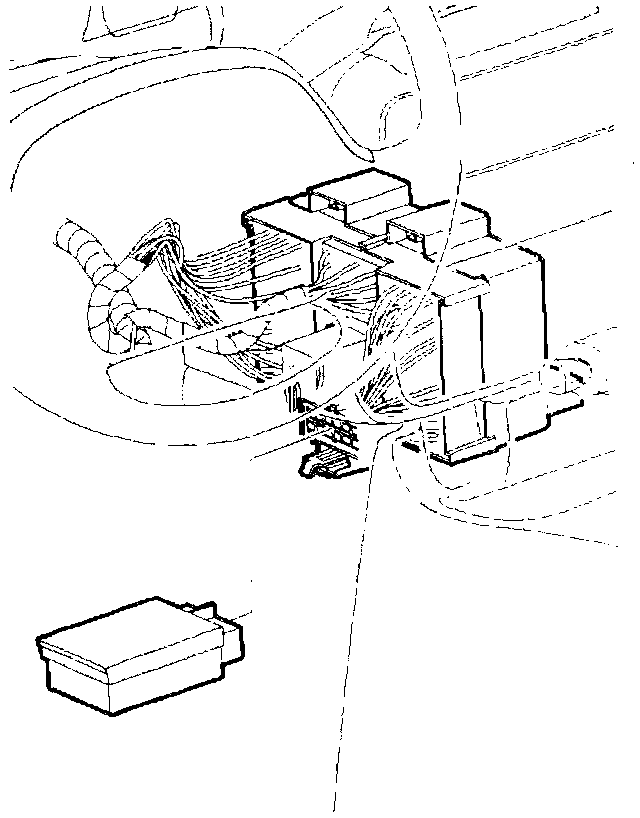

1. Remove driver's side close-out panel to expose I/P junction block.
2. Press lock tab on the bottom side of the chime module to release connector from I/P chime module.
3. Carefully pull out chime module.

INSTALLATION
1. Carefully plug the chime module into the I/P junction block until it locks into place.
2. Install driver's side close-out panel.
