Service Manual Update - Powertrain Control Module Diagnostic Info (95-T-44)

Publication date: 1995-10-01
Reference number: 95-T-44

SERVICE MANUAL UPDATE - POWERTRAIN CONTROL MODULE DIAGNOSTIC INFO

95-T-44

Reference Number(s): October, 1995

SERVICE MANUAL UPDATE FOR POWERTRAIN CONTROL MODULE DIAGNOSTIC INFORMATION

Model(s): 1996 Saturns All Models

Group/Seq. No.: Electrical-12

Corporation No.: 586507

Bulletin No.: 95-T-44

Date: October, 1995

PURPOSE

The first edition of the "1996 Electrical Service Manual" was published with some omissions in the electrical schematics of the "Powertrain Control Module (PCM)" section. This bulletin provides complete electrical schematics for the 1996 PCM. See Fig 1 thru 9 . This information will be included in the second edition of the "1996 Electrical Service Manual" which is expected to be printed in late 1995. Additional diagnostic information for the PCM can be found in the "1996 Powertrain Controls Service Manual."

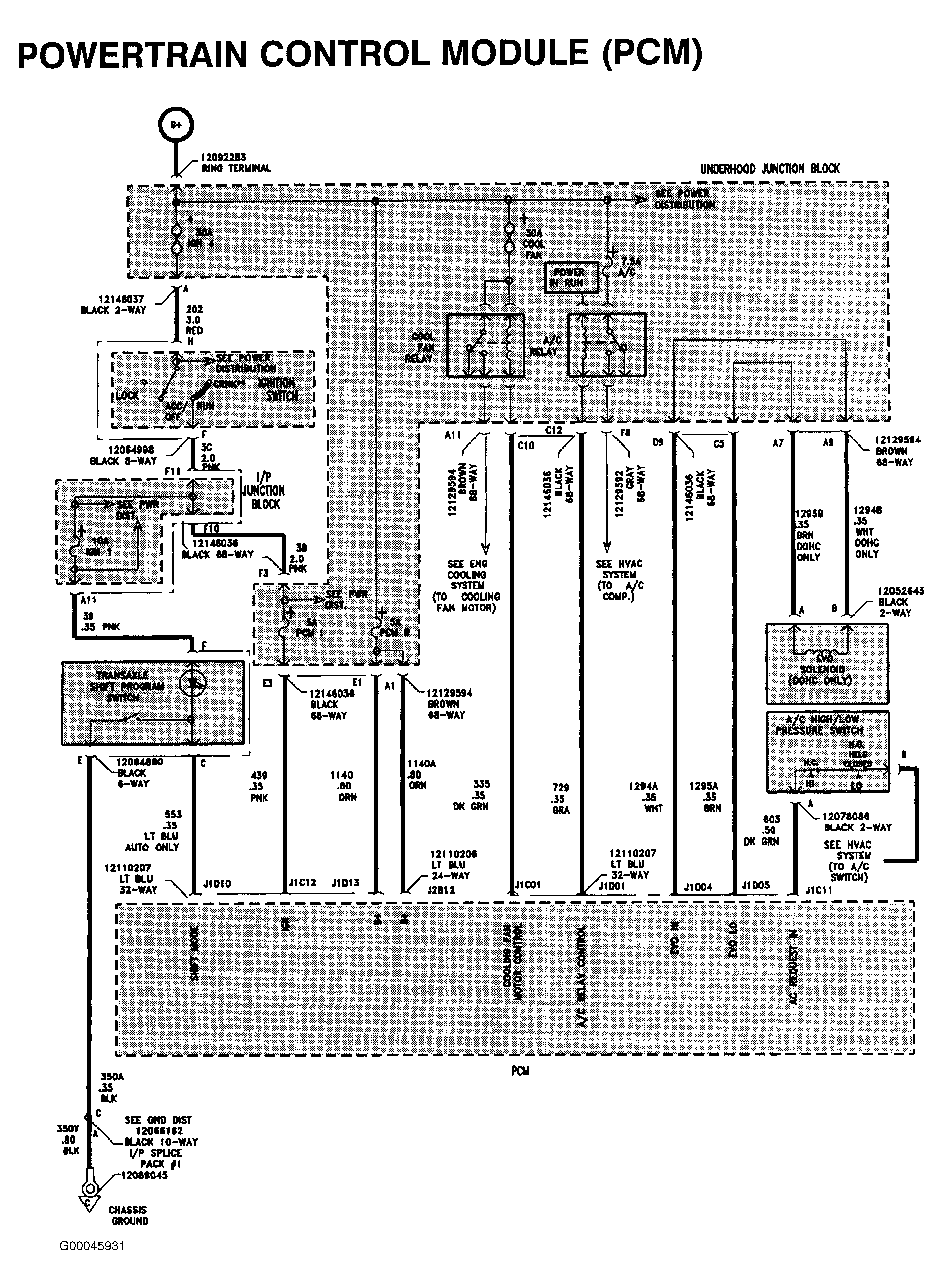

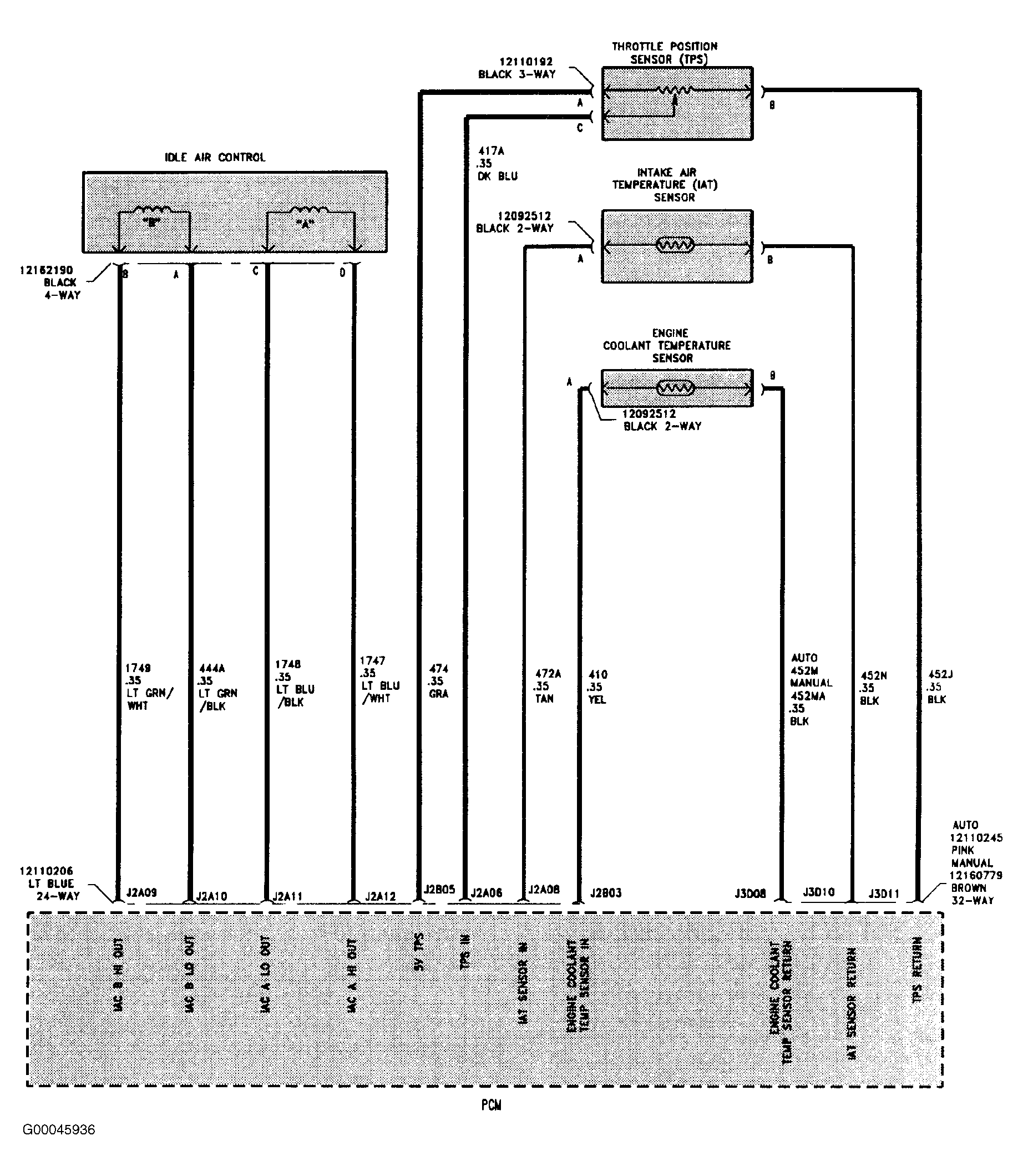

Fig 1: Powertrain Control Module (PCM) Part 1

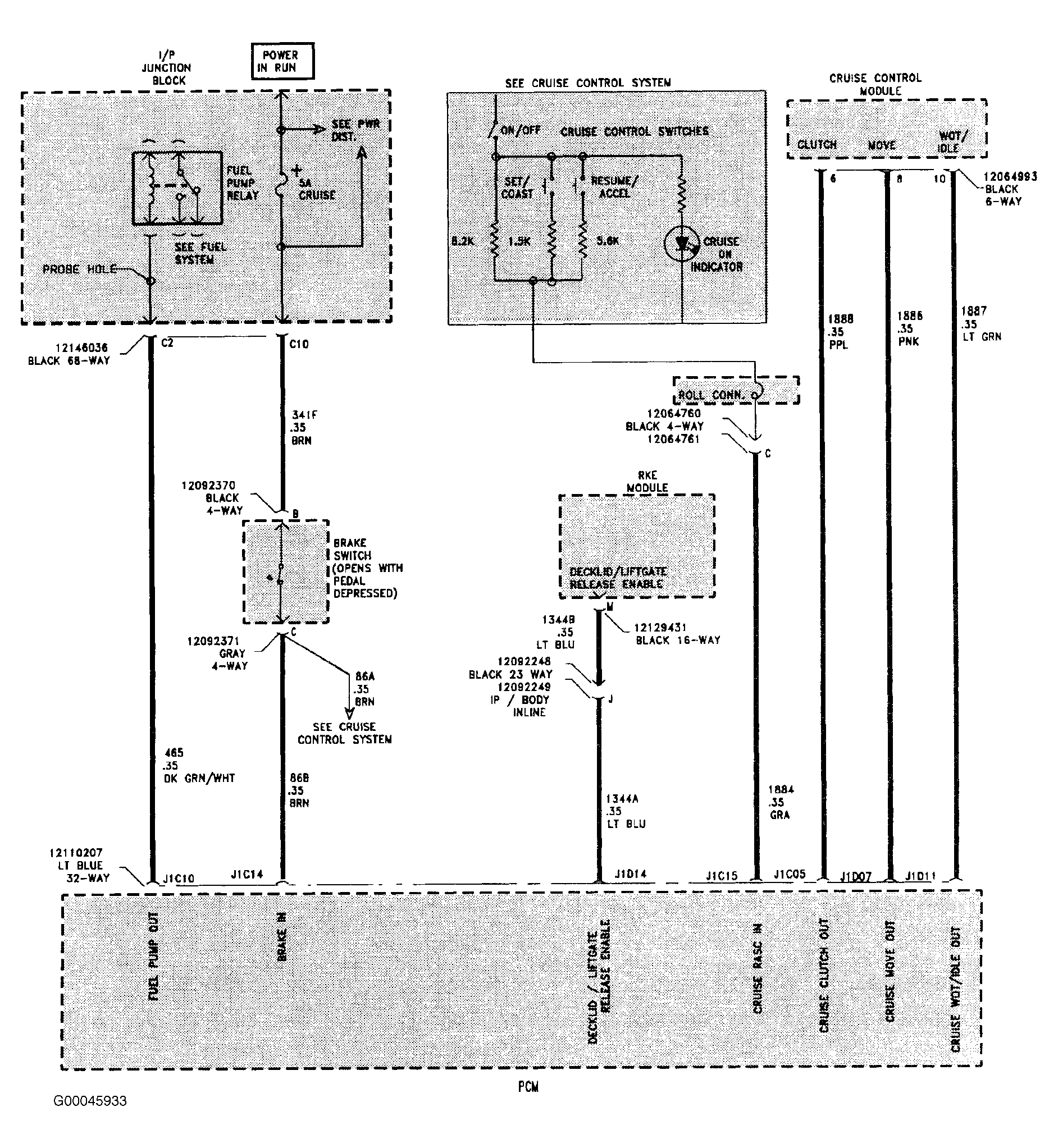

Fig 2: Powertrain Control Module (PCM) Part 2

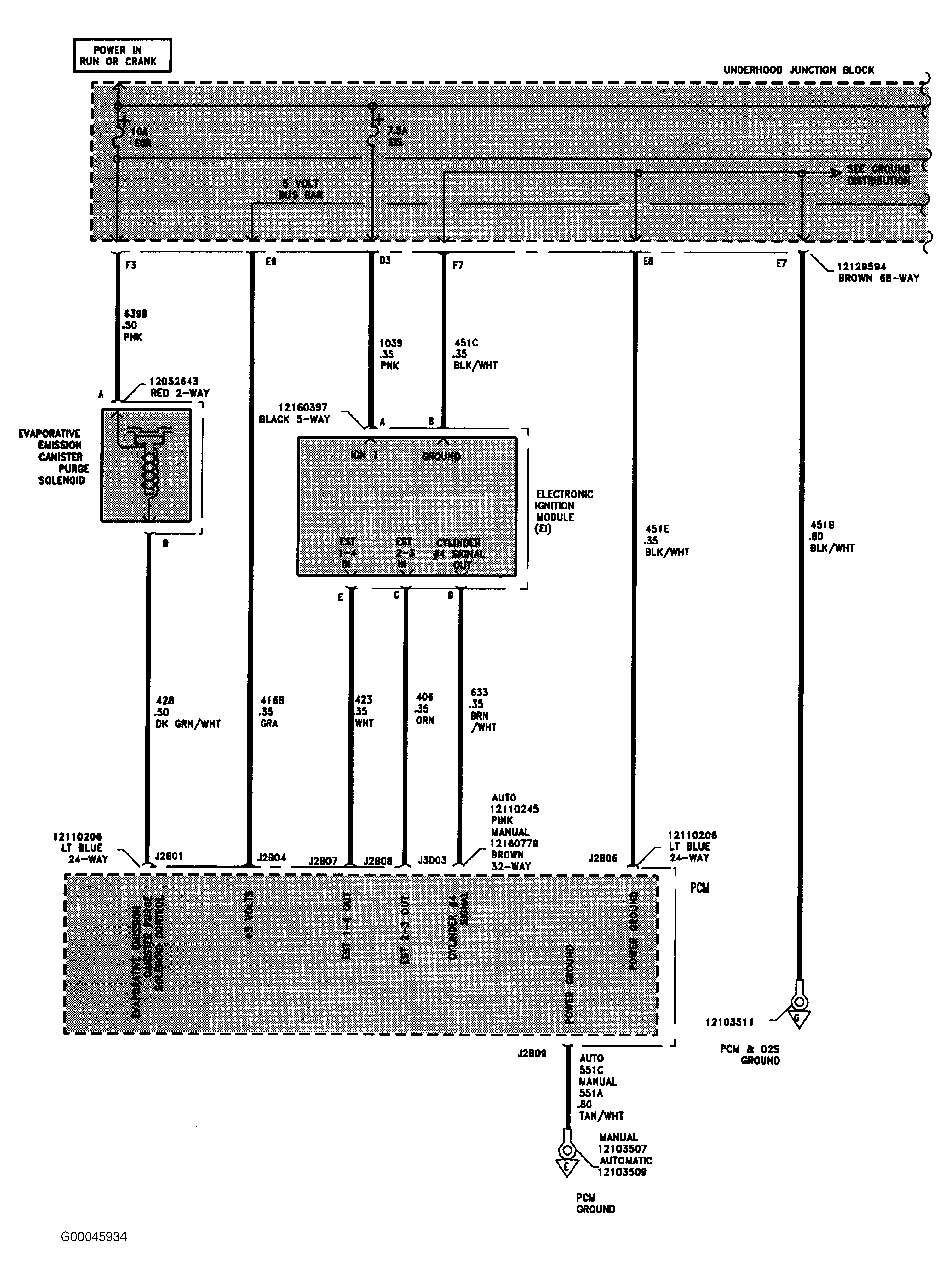

Fig 3: Powertrain Control Module (PCM) Part 3

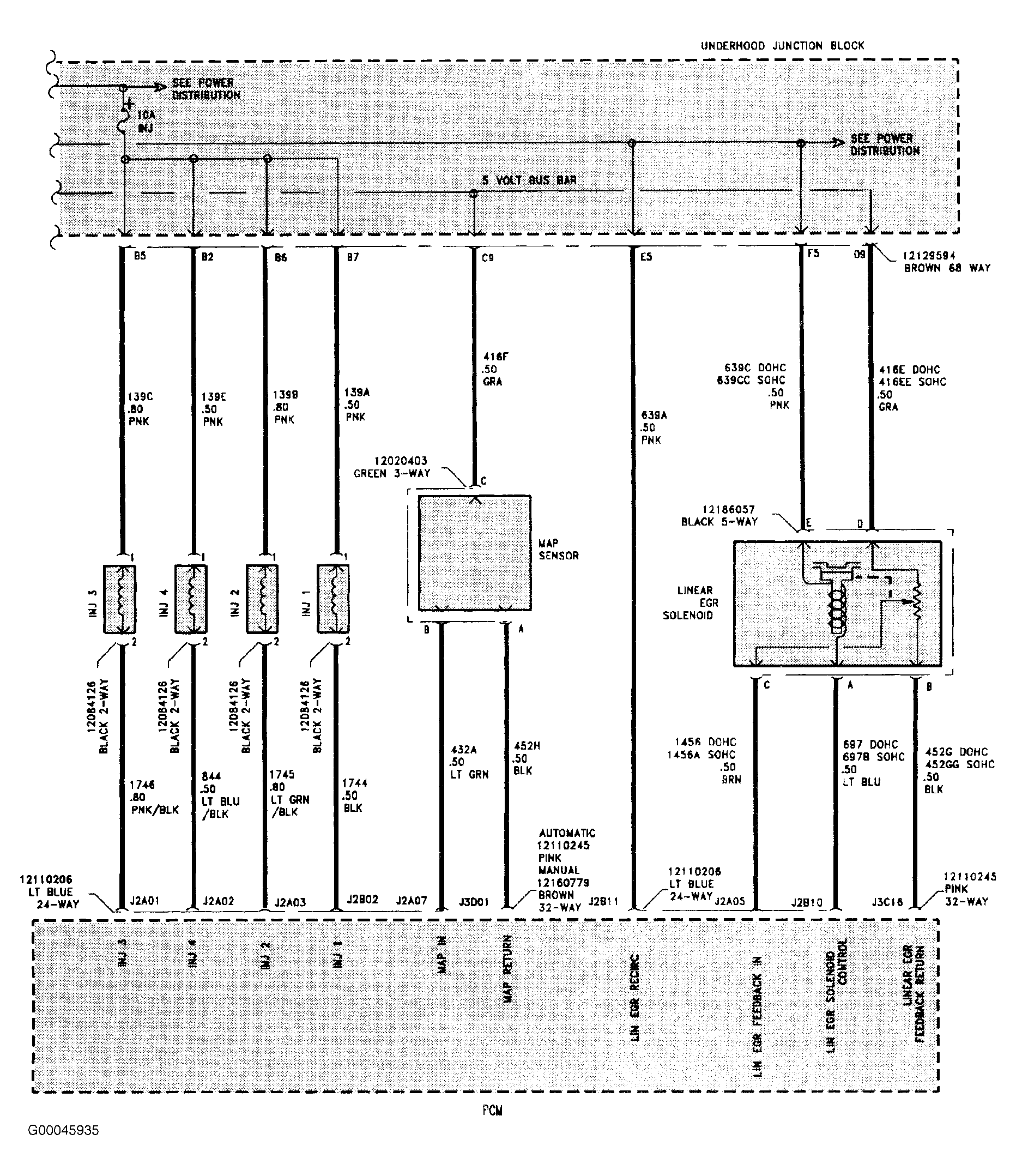

Fig 4: Powertrain Control Module (PCM) Part 4

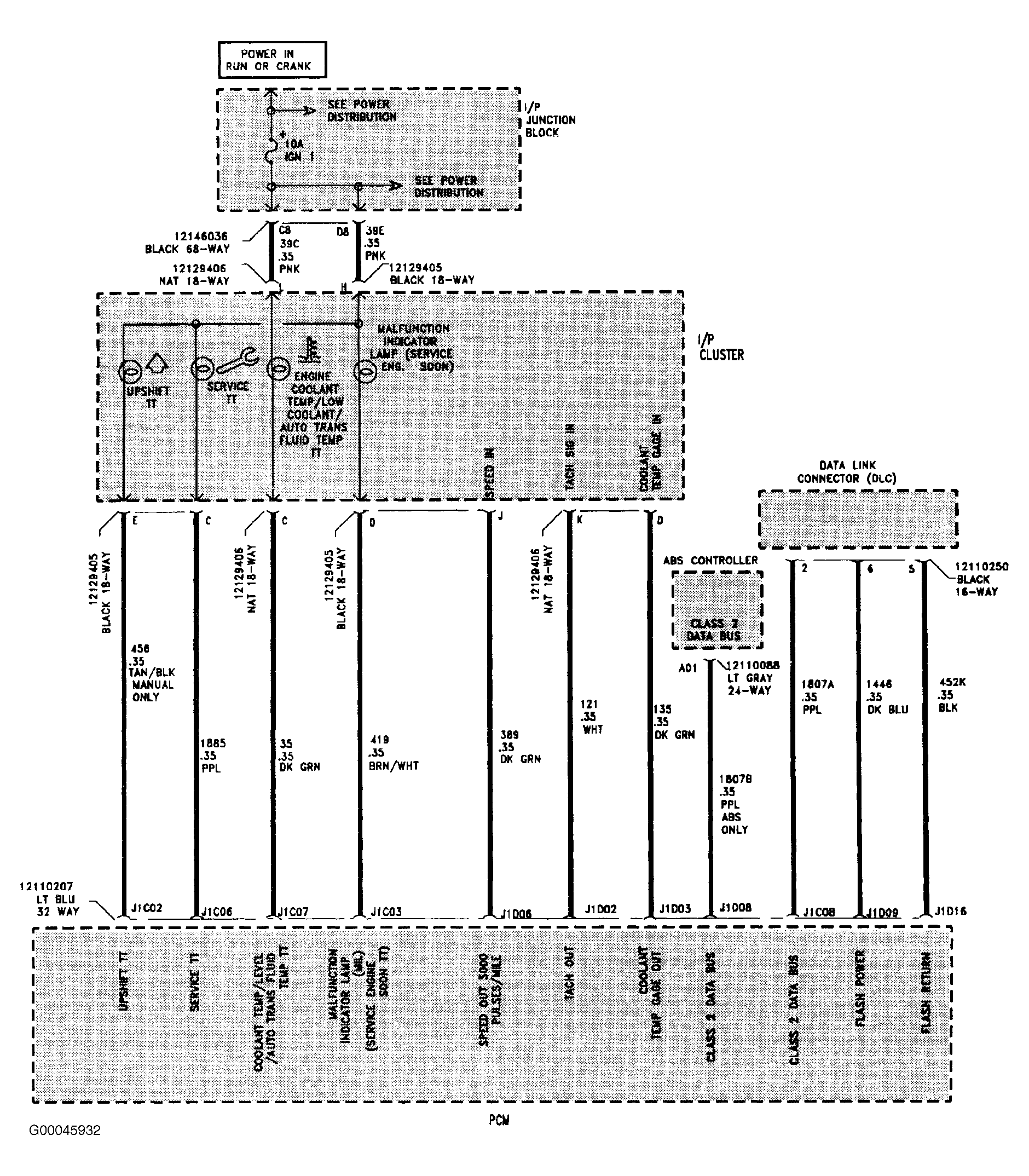

Fig 5: Powertrain Control Module (PCM) Part 5

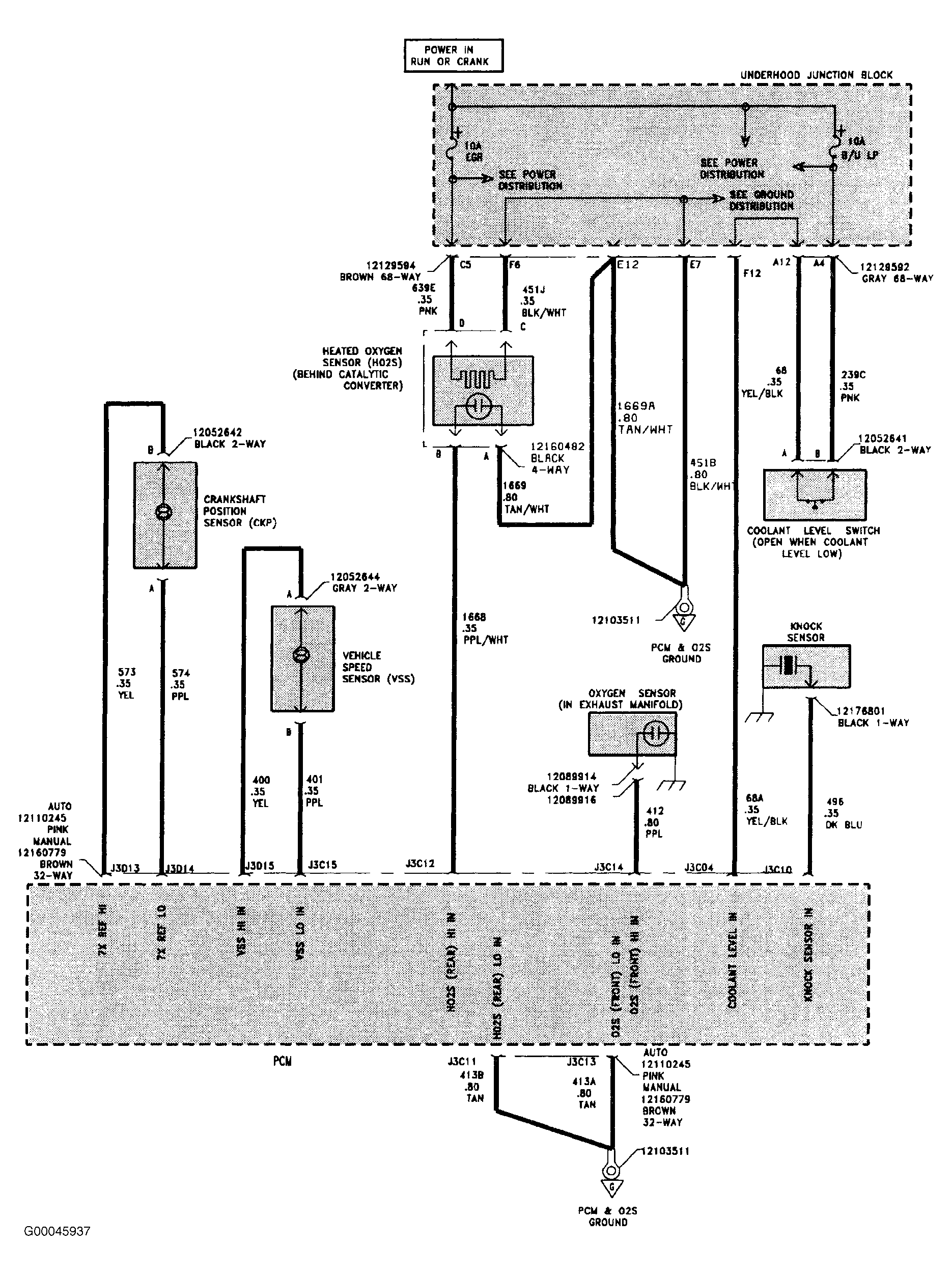

Fig 6: Powertrain Control Module (PCM) Part 6

Fig 7: Powertrain Control Module (PCM) Part 7

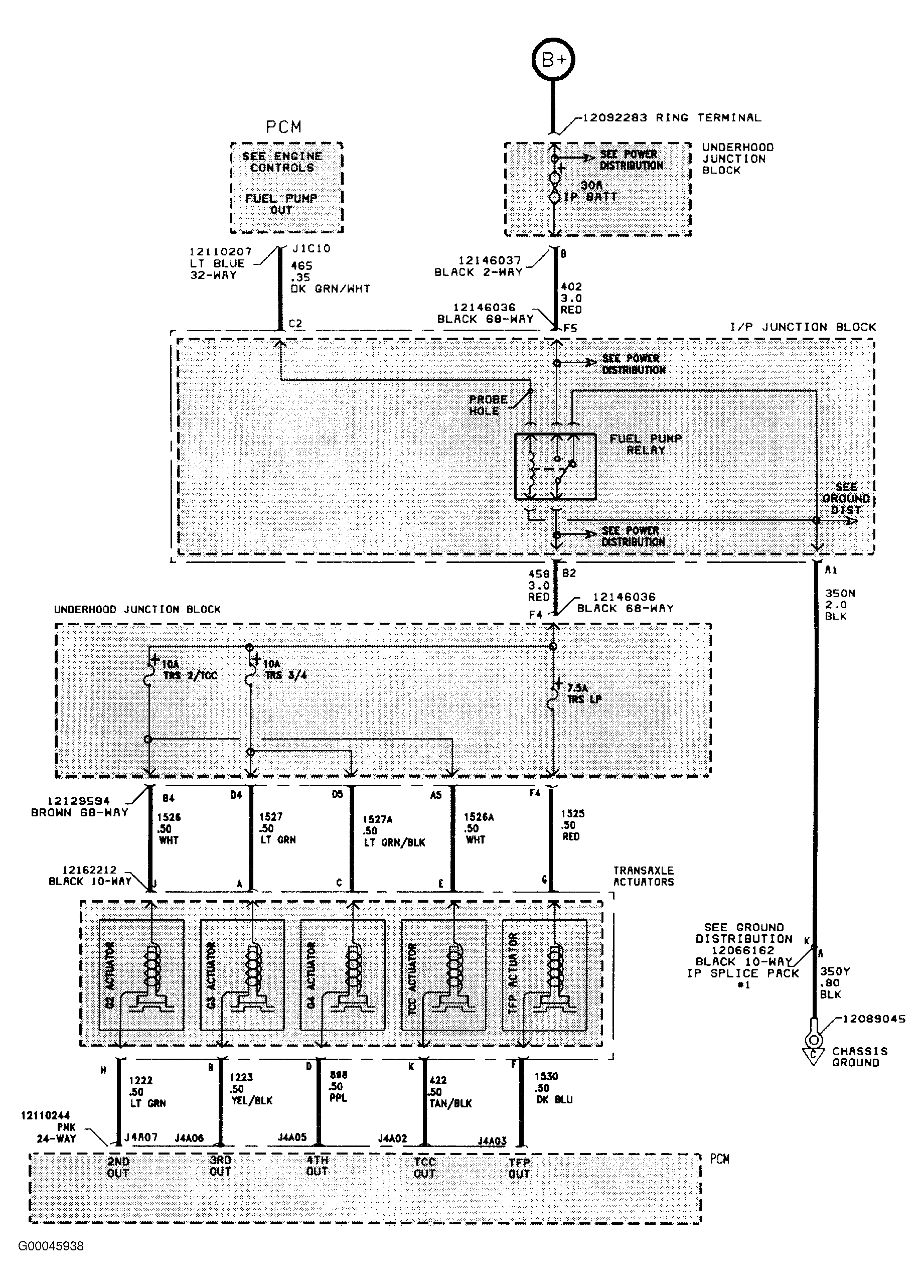

Fig 8: Powertrain Control Module (PCM) Part 8

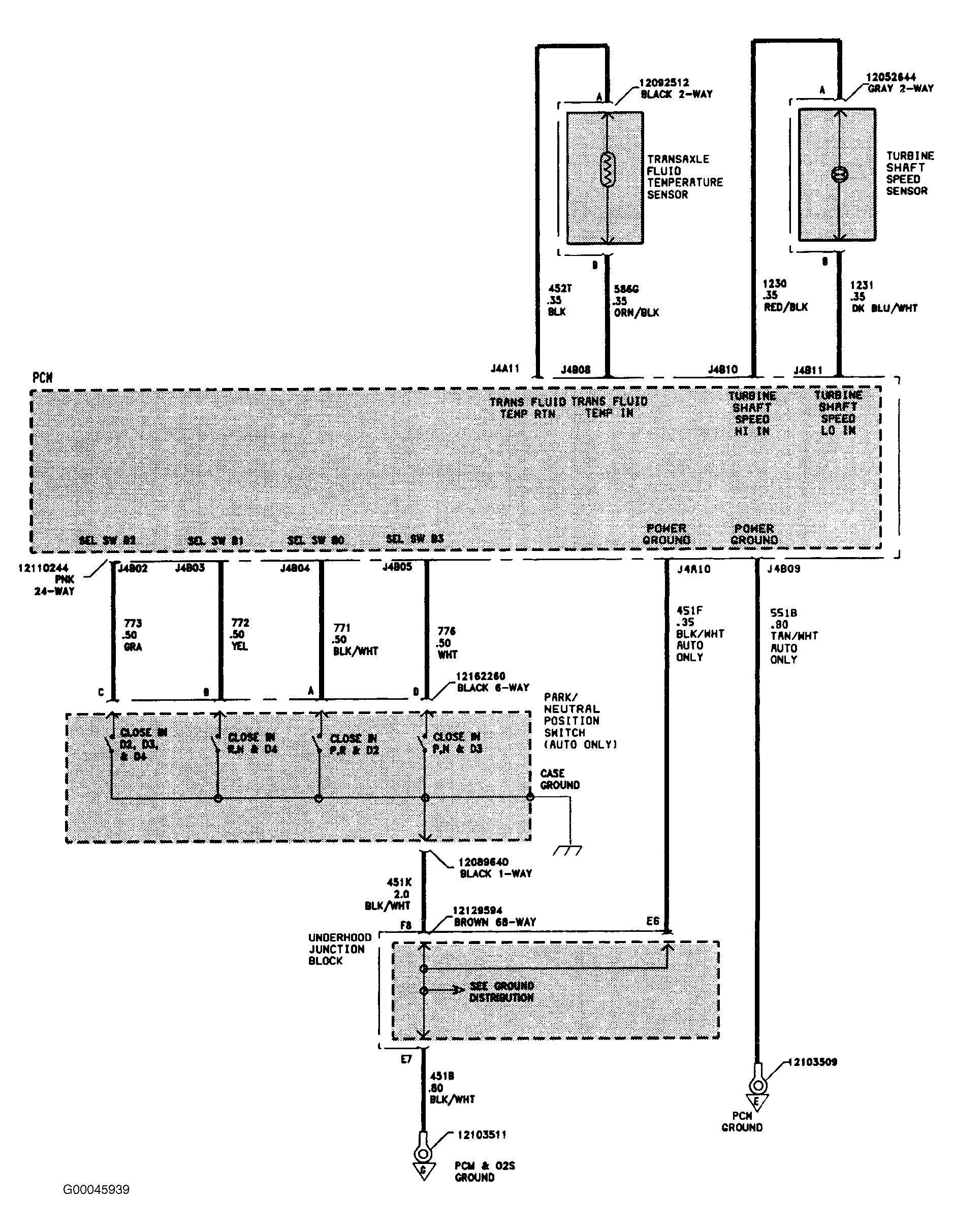

Fig 9: Powertrain Control Module (PCM) Part 9
