Power Window Switch

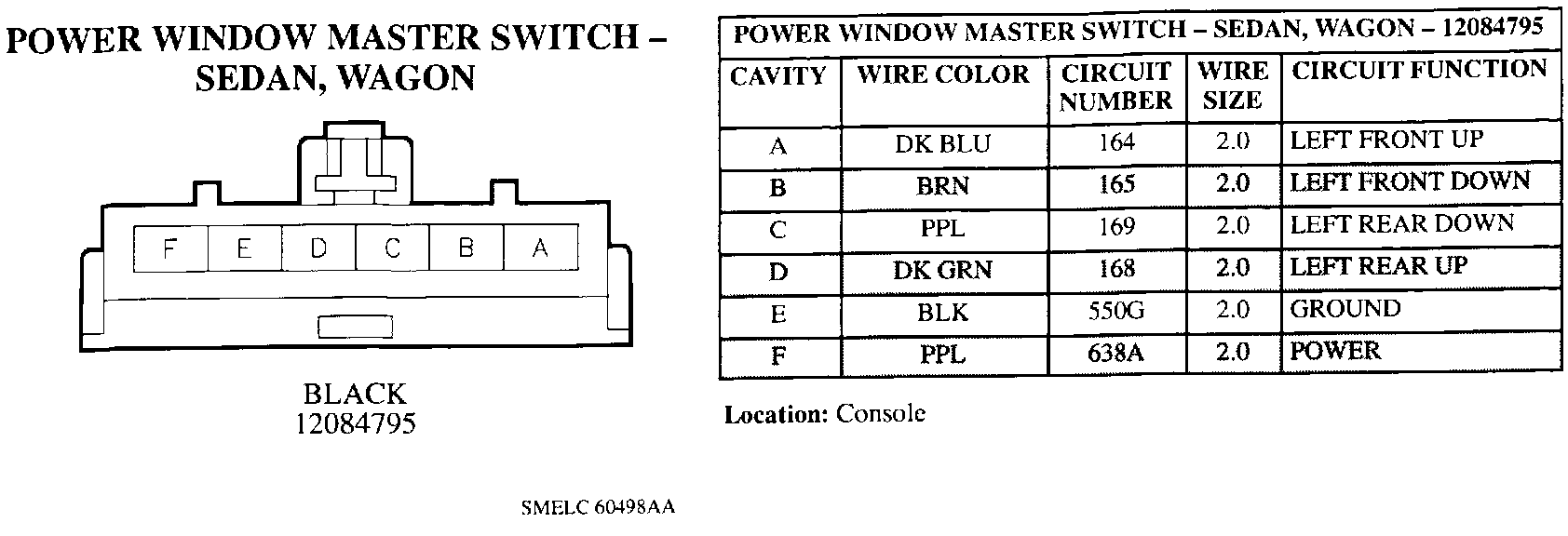

Power Window Master Switch:

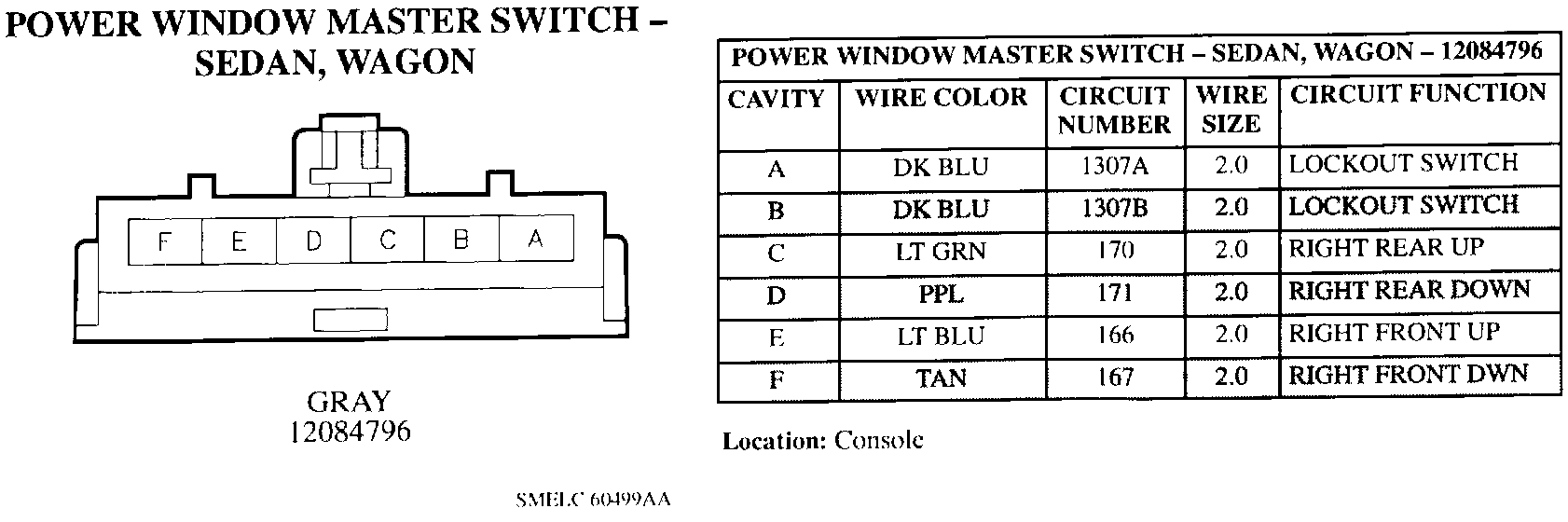

Power Window Master Switch:



Power Window Switches - Rear:
