Generator

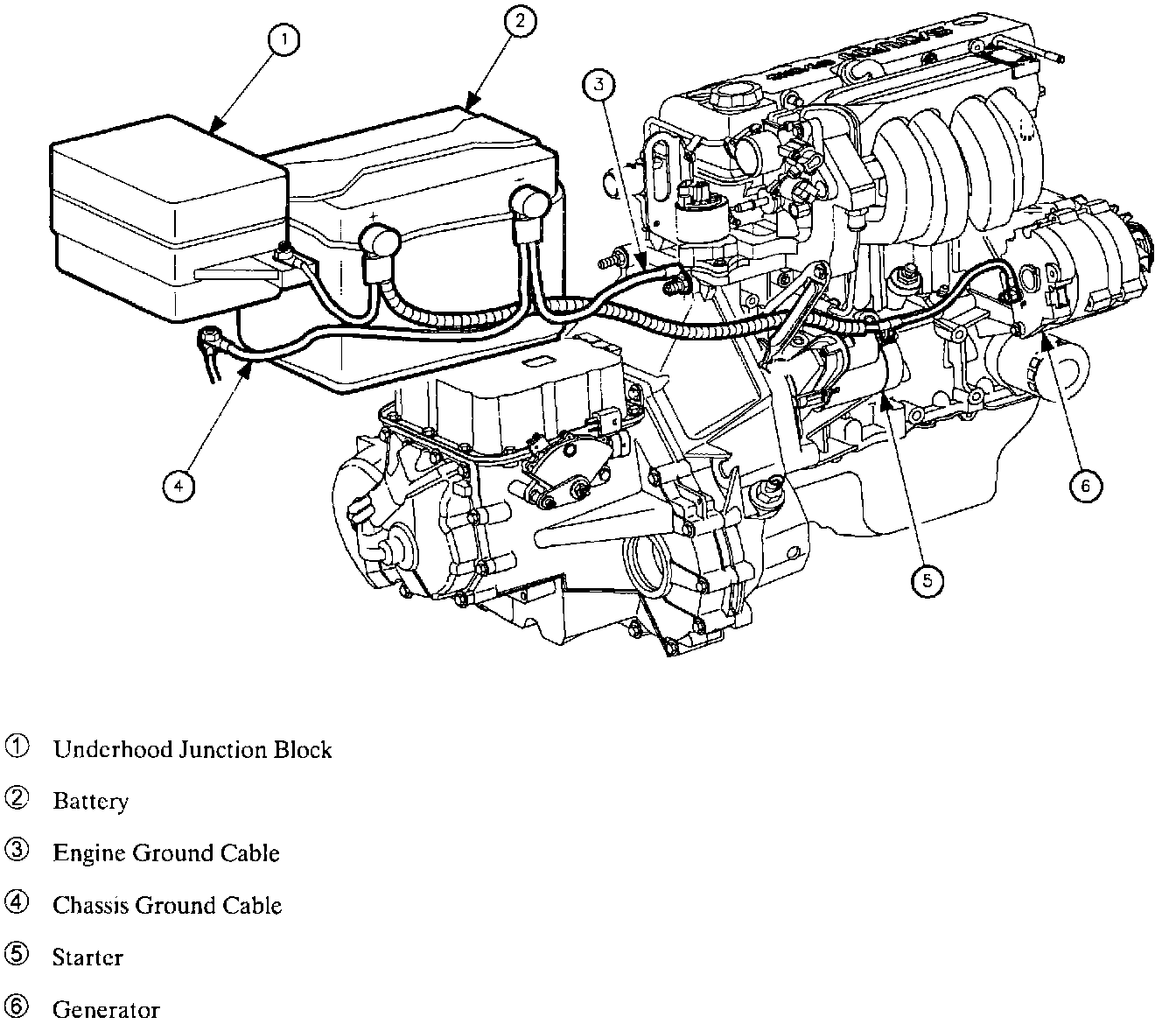

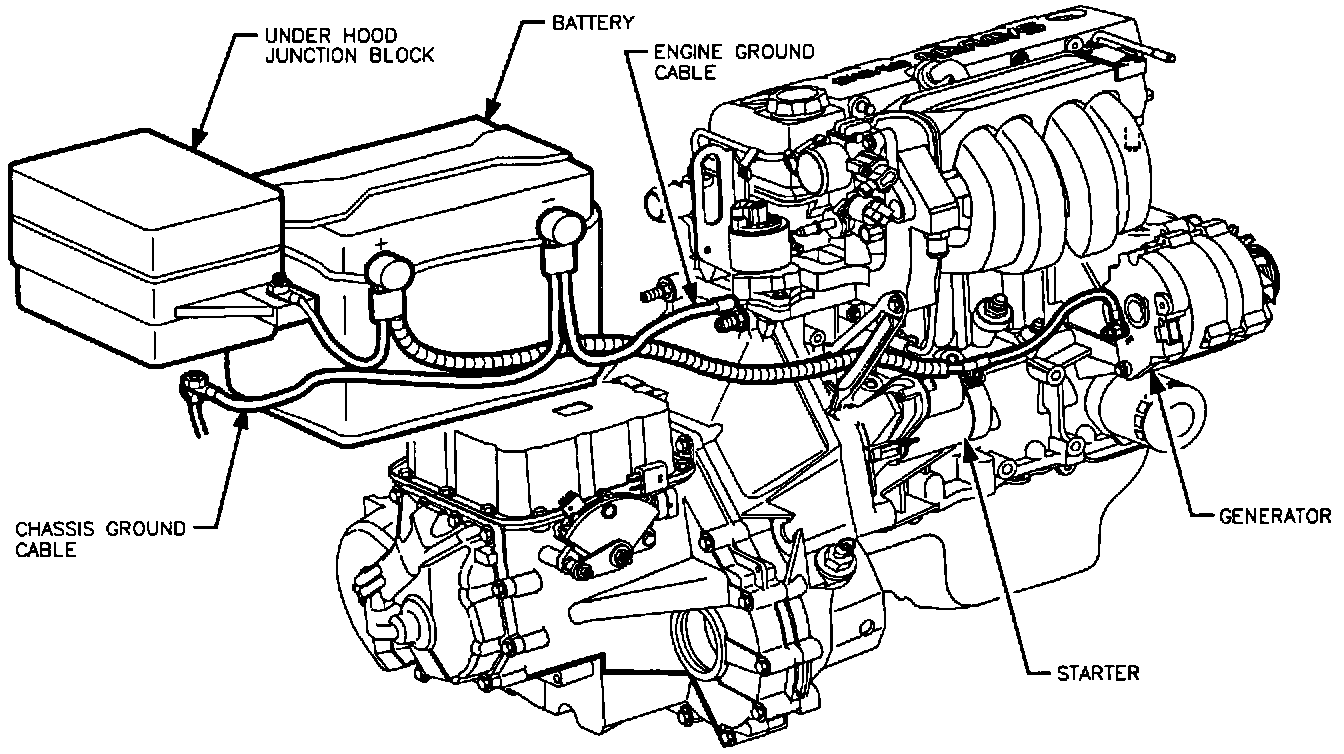

Battery System Component Location:

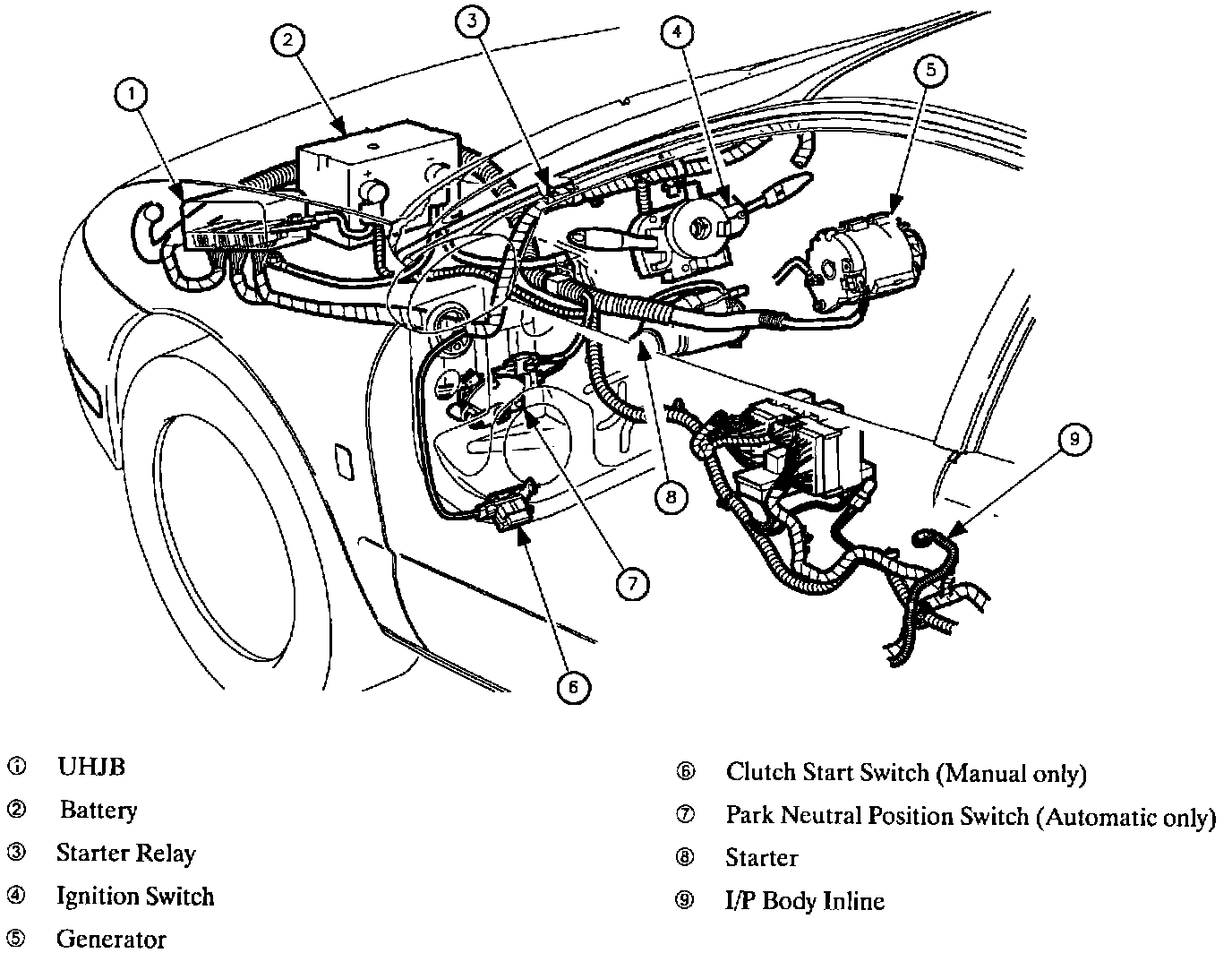

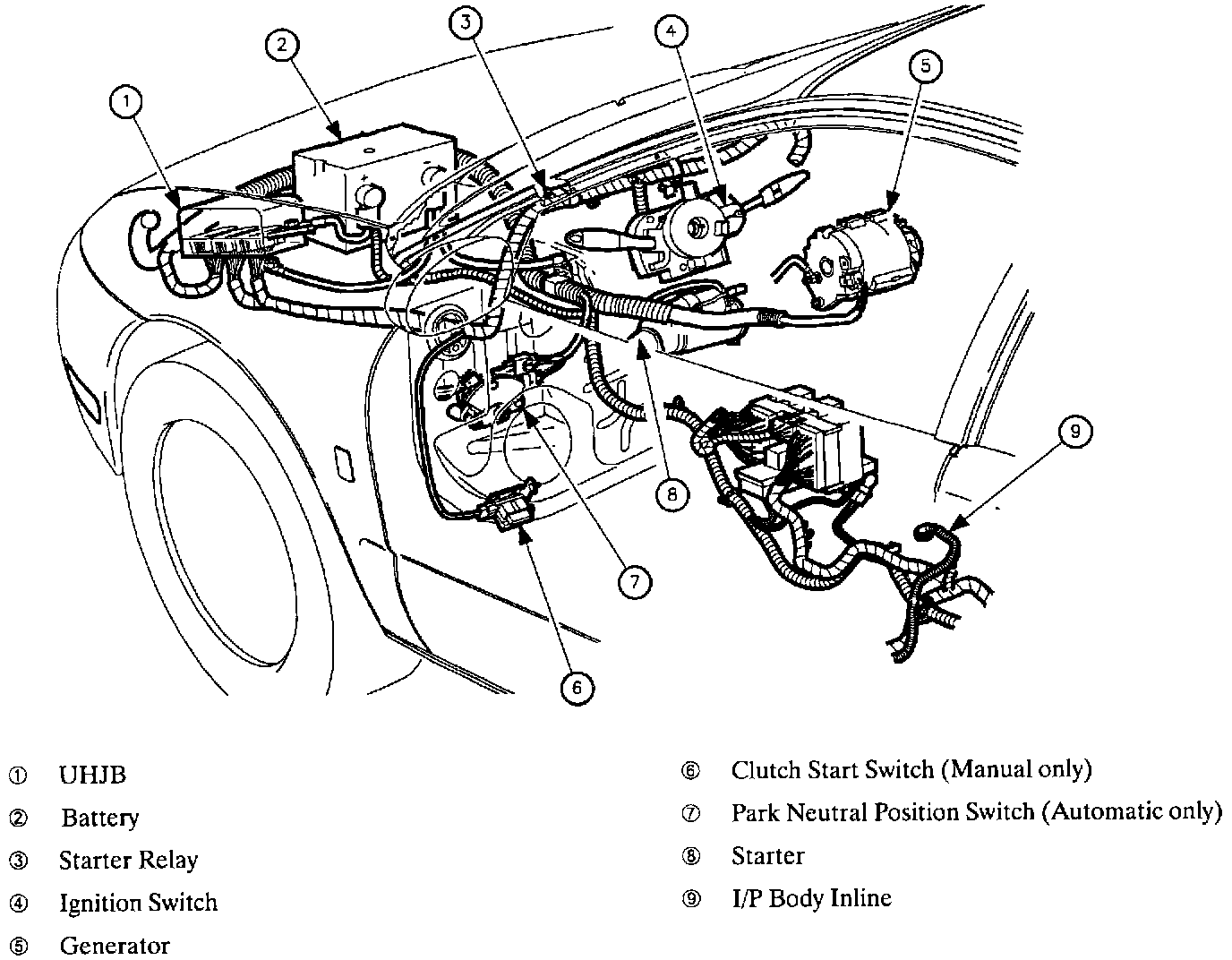

Ignition Switch System Component Location:




Battery:




Generator:




Starter:




Instrument Cluster Telltales And Signal Inputs Component Location:
