Generator

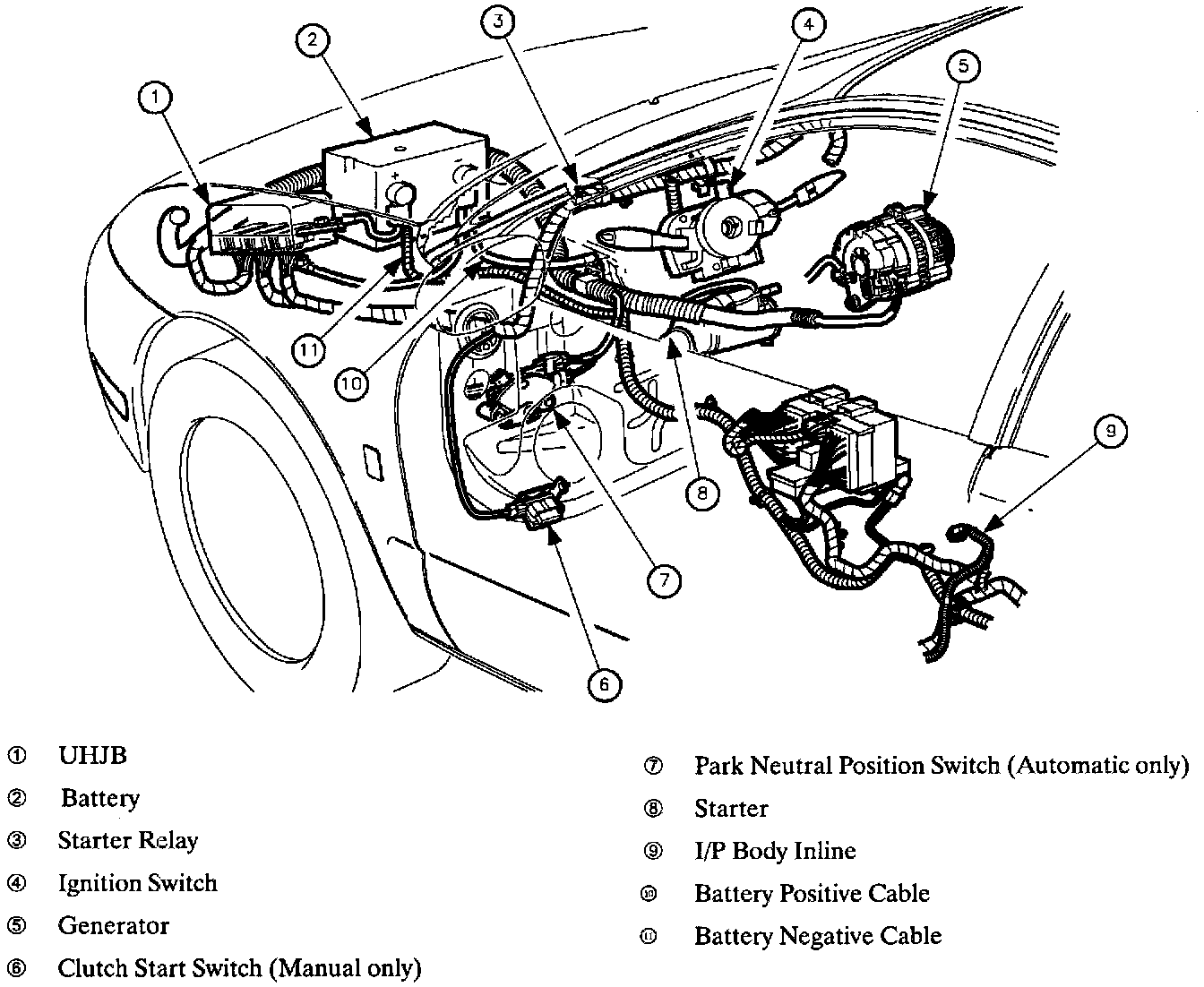

Battery System Component Location:

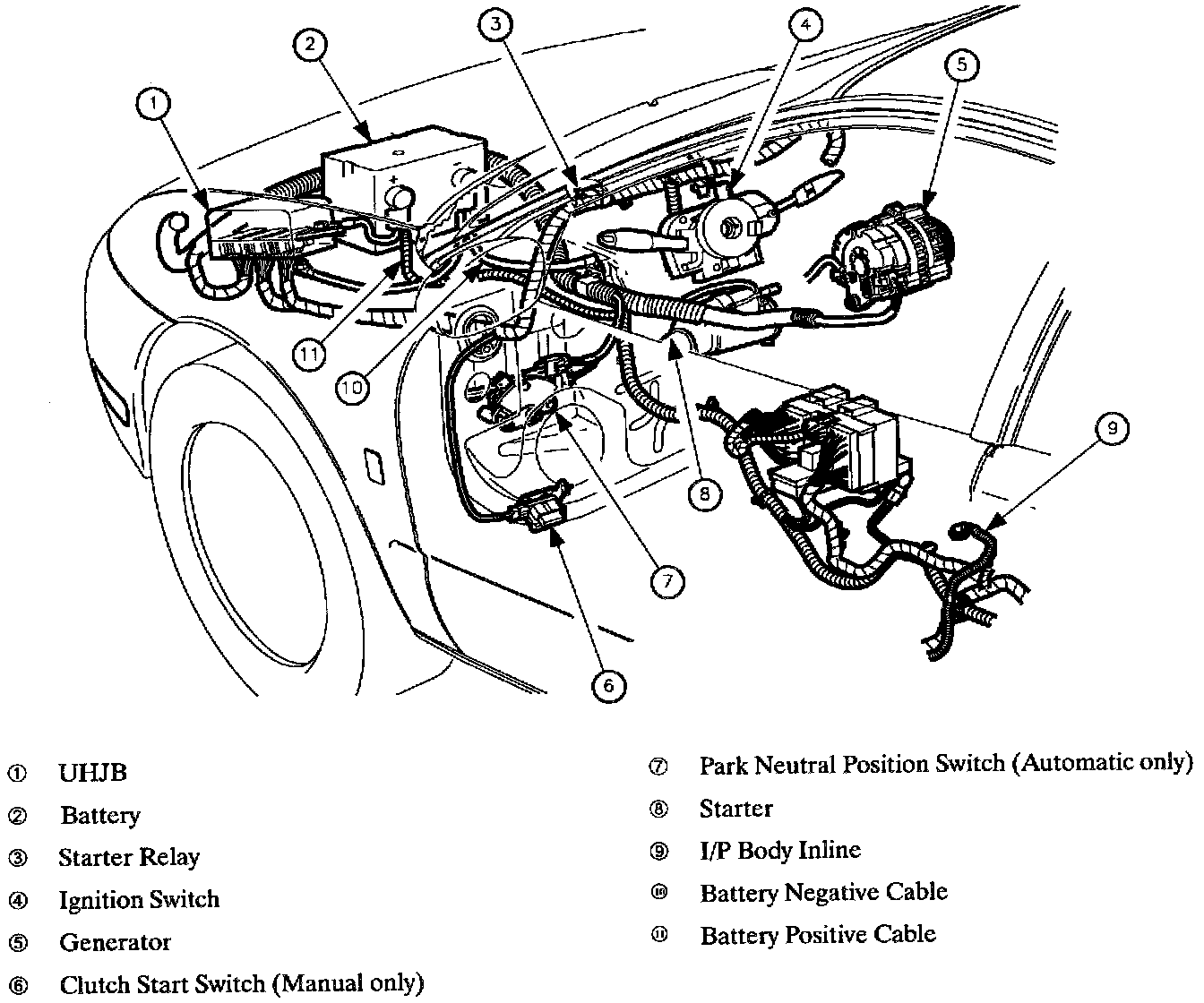

Ignition Switch System Component Location:

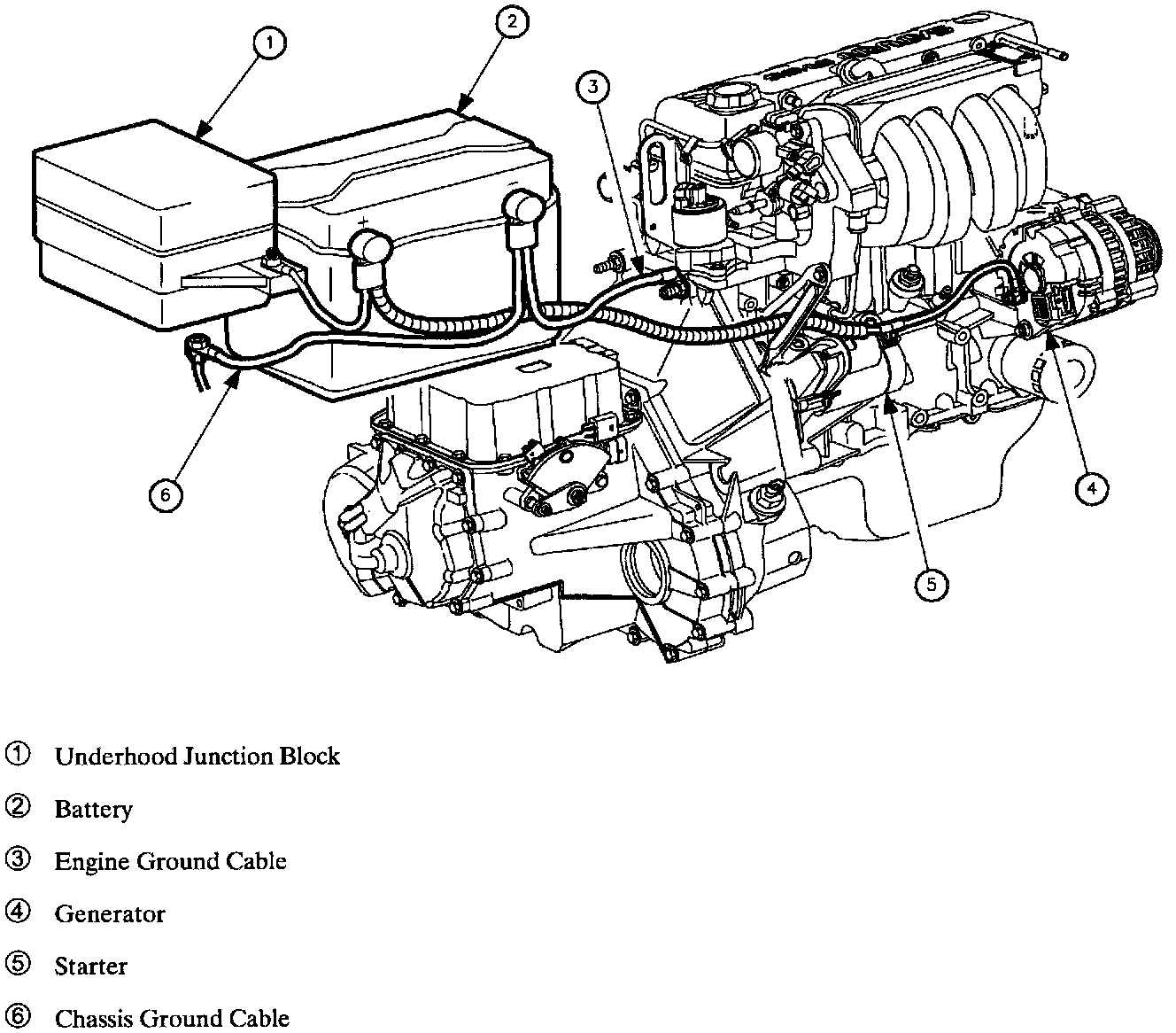

Battery:

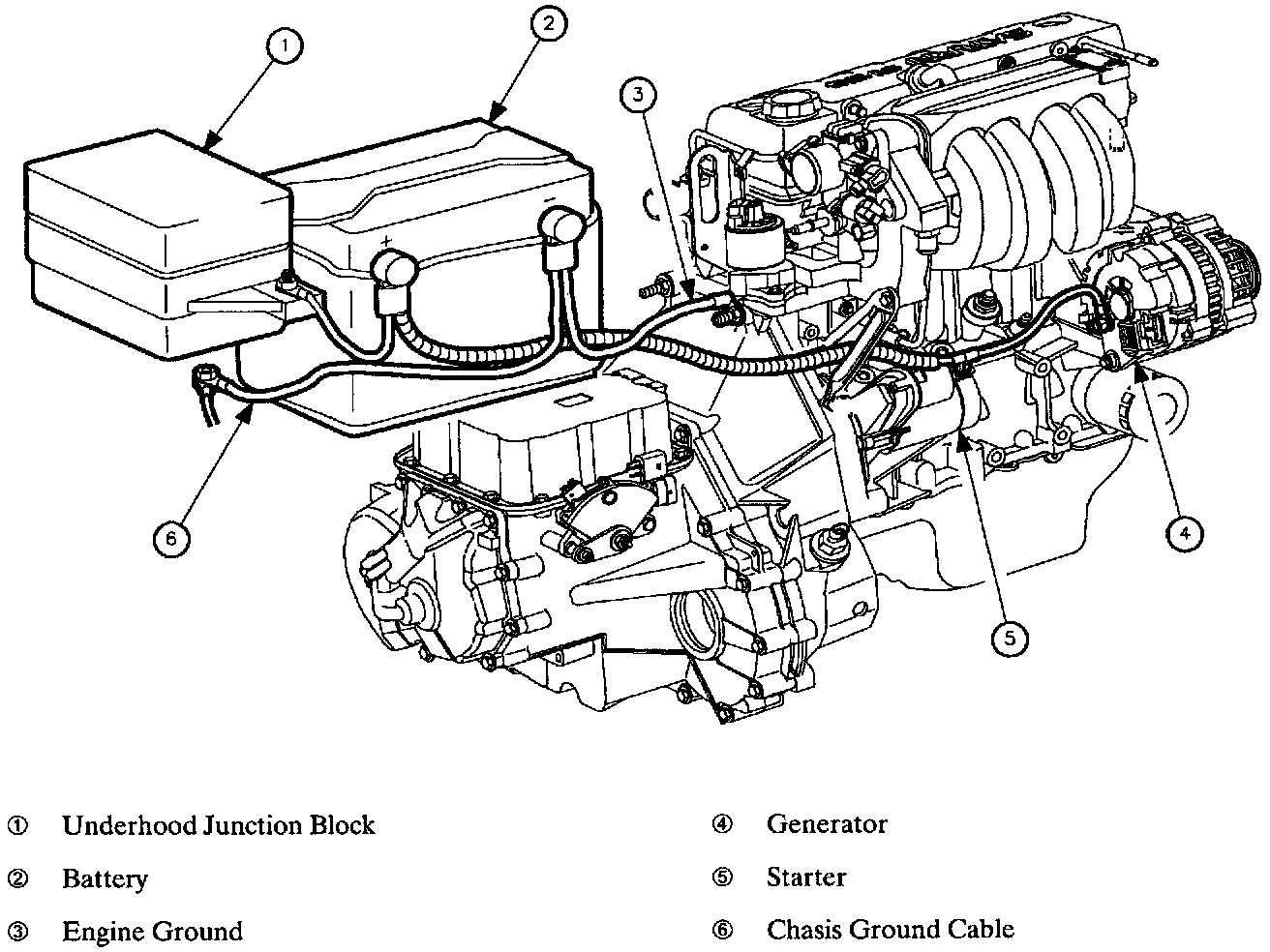

Generator:

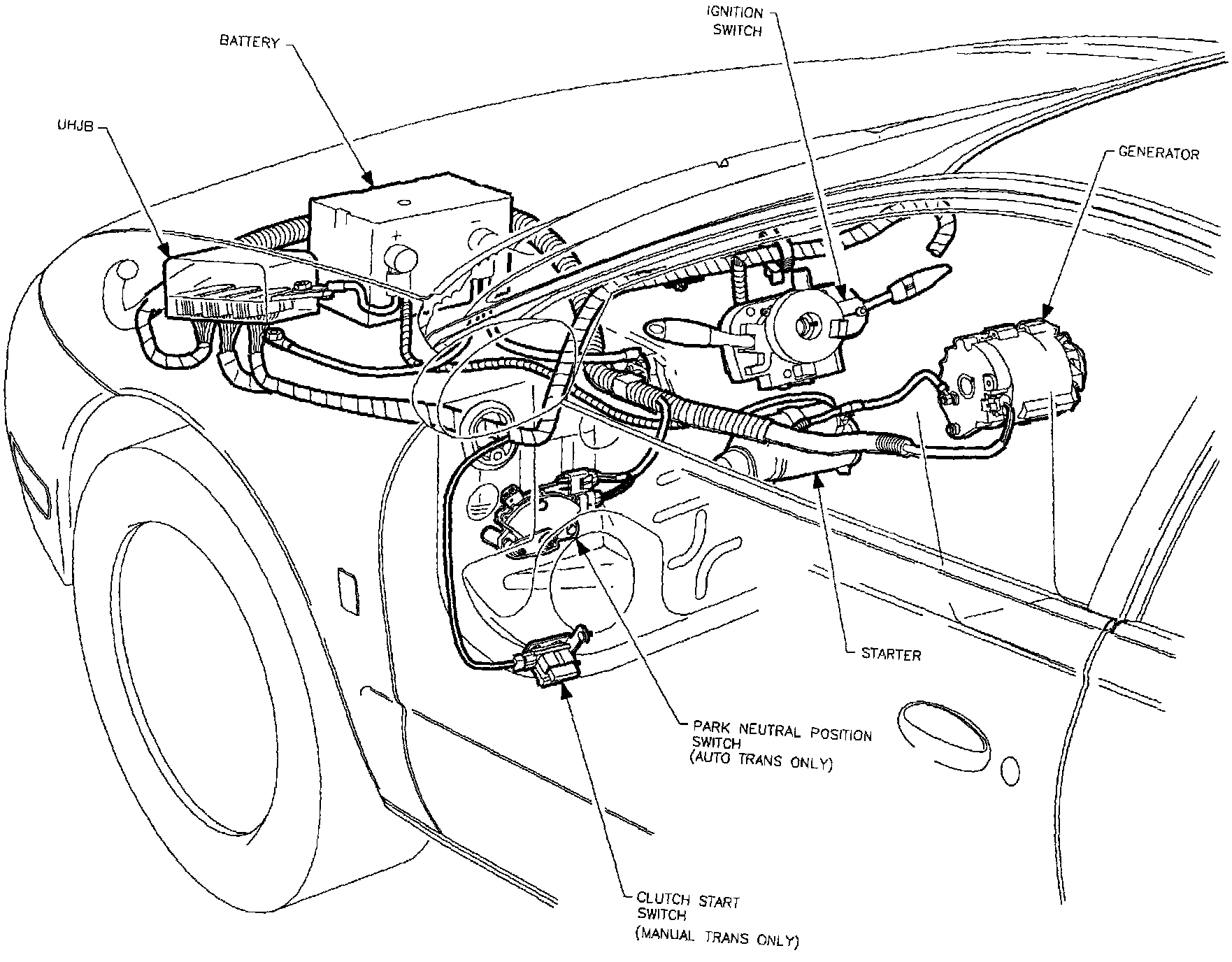

Starter:




Instrument Cluster Telltales And Signal Inputs Component Location:




Instrument Cluster Telltales And Signal Inputs Component Location:
