Wiper Module, Rear

REMOVAL




1. Remove wiper arm by disengaging wiper arm retaining latch.




2. Remove liftgate inner lower panel.




3. Disengage electrical connection from wiper module.

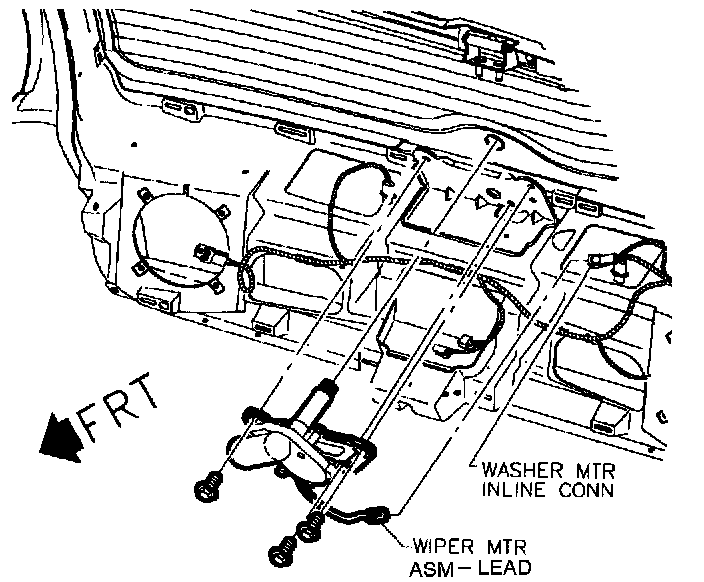

4. Remove wiper module fasteners and remove wiper module.

INSTALLATION
1. Install wiper module with fasteners.

Torque: Torque: 12 N.m (106 in-lbs)

2. Connect electrical harness.







3. Install liftgate inner lower panel.


NOTE: Before installing wiper arm, cycle motor to insure it is in park neutral.




4. Install rear wiper arm.
5. Check wiper system for proper operation.
