Installation

IMPORTANT: All service replacement control cables will have the bolt-in type pass-through grommet. The bolt-in type cable pass-through grommet is installed from the inside of the vehicle.





1. Guide control cable assembly through cable pass-through hole in floor pan.
2. Insert the cable pass-through grommet into the cable pass-through hole in the floor pan, engaging the passenger side of the grommet first. Snap the driver's side of the grommet into place by pressing inward and toward the passenger side of the vehicle.
3. Tighten grommet nuts.

Torque: 7 Nm (62 inch lbs.)

4. Lower vehicle.





5. Connect control cable end to control base assembly.
6. Install control cable housing to control base assembly.
7. Replace sound deadening material and re-secure to front of dash.
8. Replace carpeting.
9. Install console. (Refer to "Console Installation" procedure.)

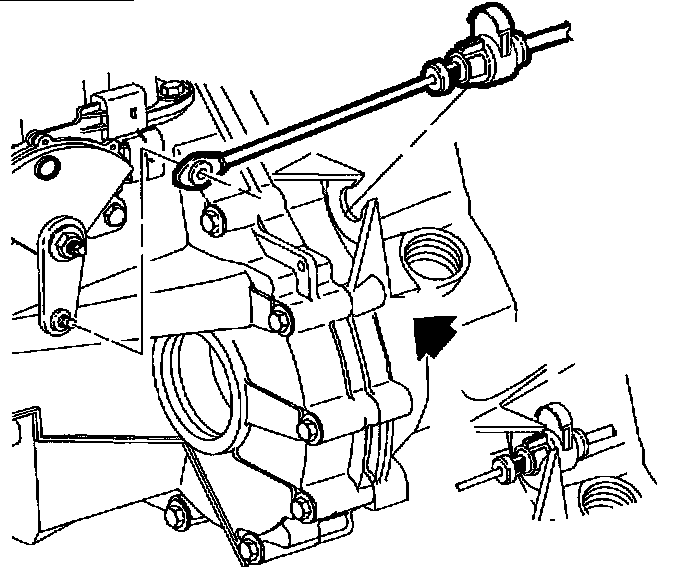

10. Install control cable into converter housing. Make sure both tabs snap into housing.
11. Connect control cable to control lever.





12. Install air induction system.
13. Enable the SIR system. (Refer to "Enabling the SIR System".)
