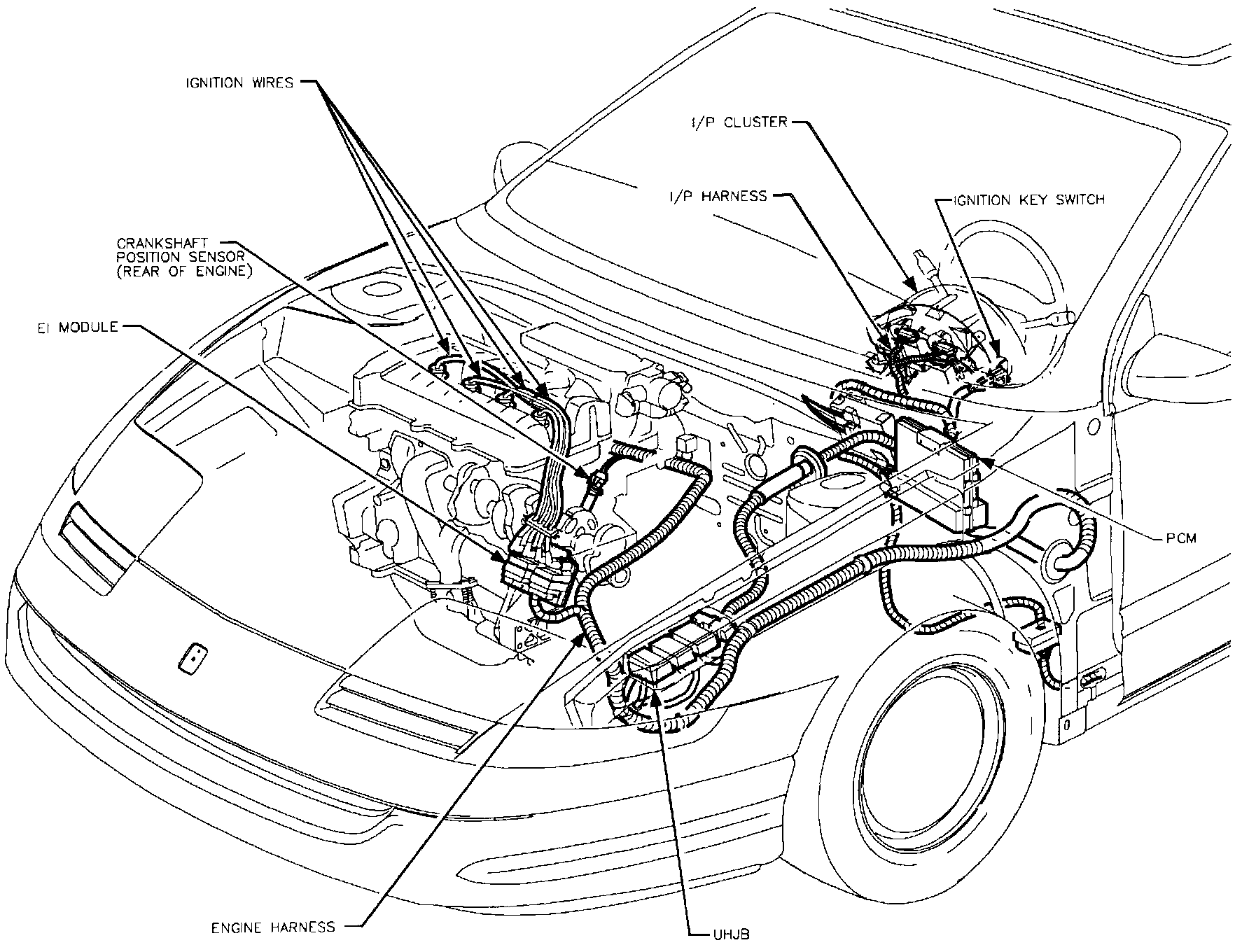

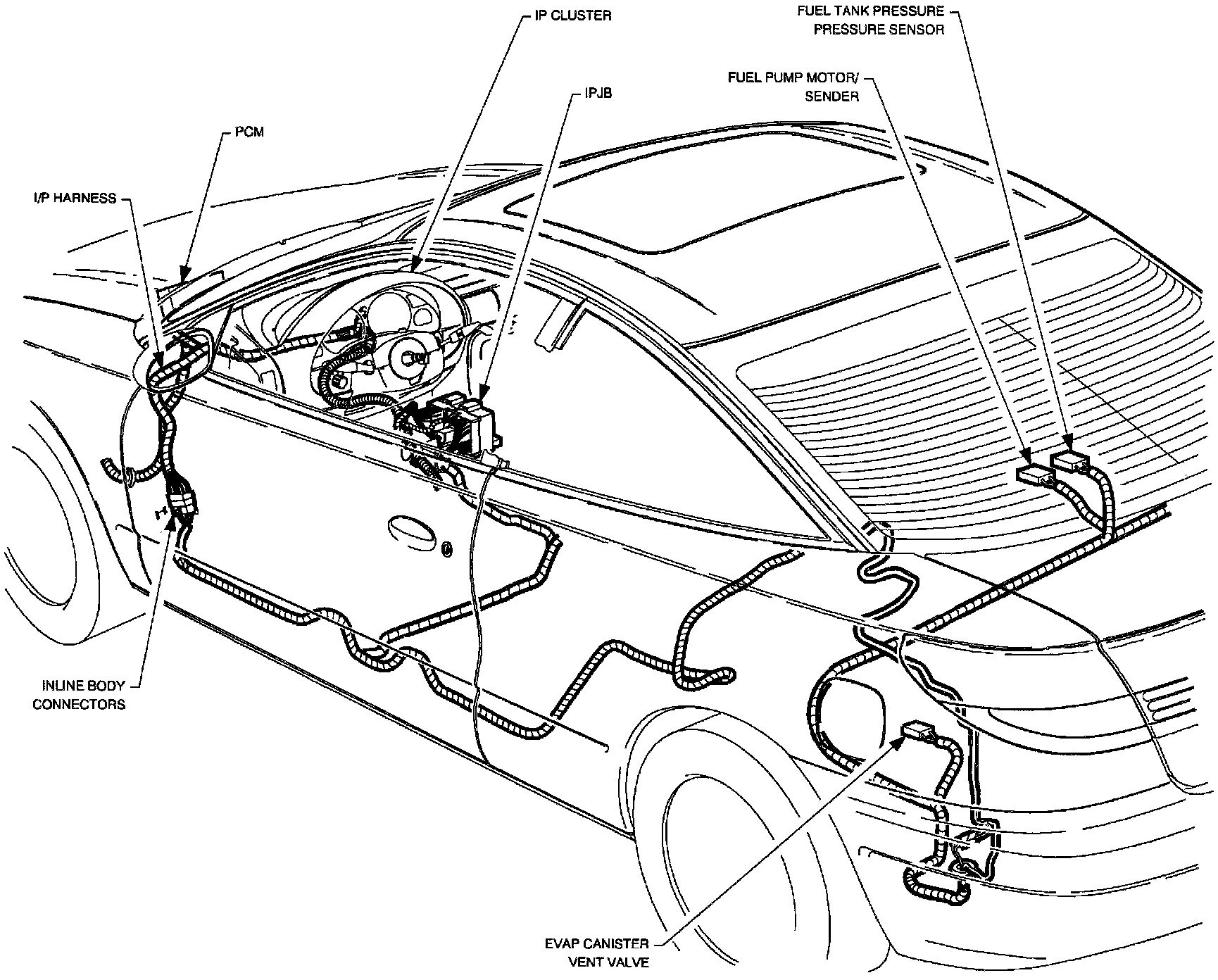

Powertrain Control Module (PCM)

Fuel Injection: Fuel System Component Location:




Ignition System Component Location:




Cruise Control System:




Instrument Cluster Telltales And Signal Inputs Component Location:
