Control Valve Body: Installation

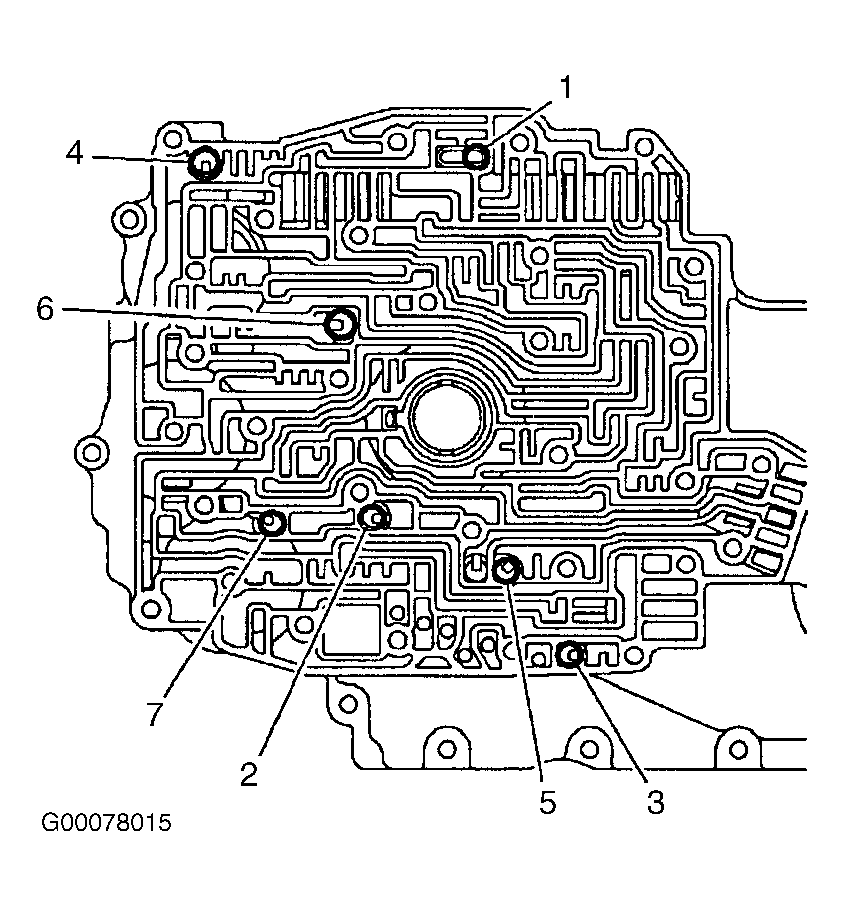

- Make sure check balls are in proper locations on channel plate. See Fig 1. Retain check balls with petroleum jelly. Install a new spacer plate-to-channel plate gasket onto channel plate. Install spacer plate with spacer plate filter attached.

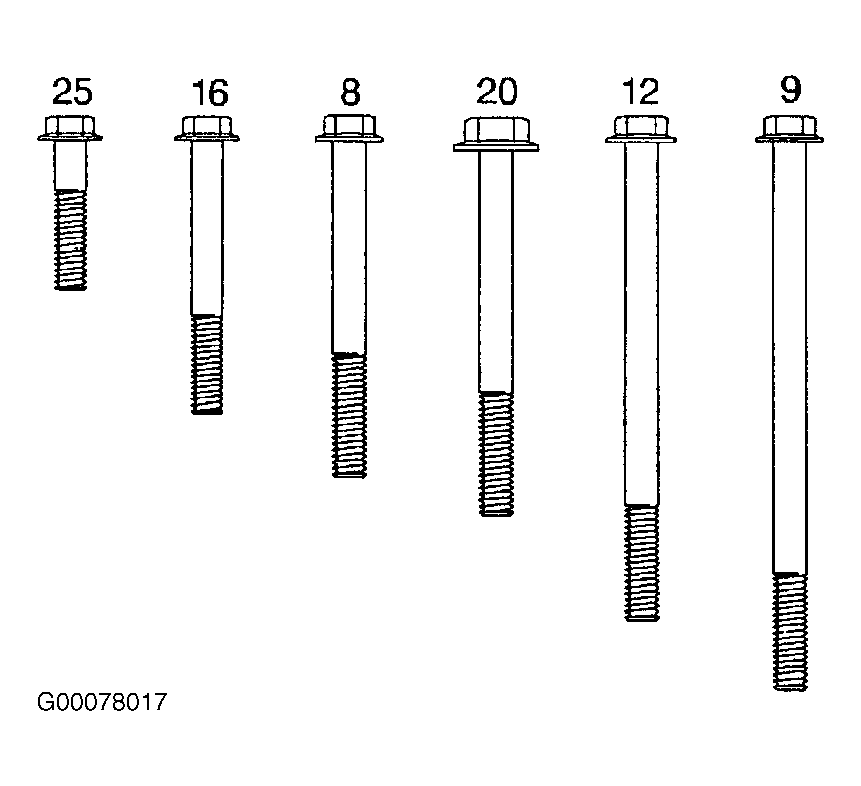

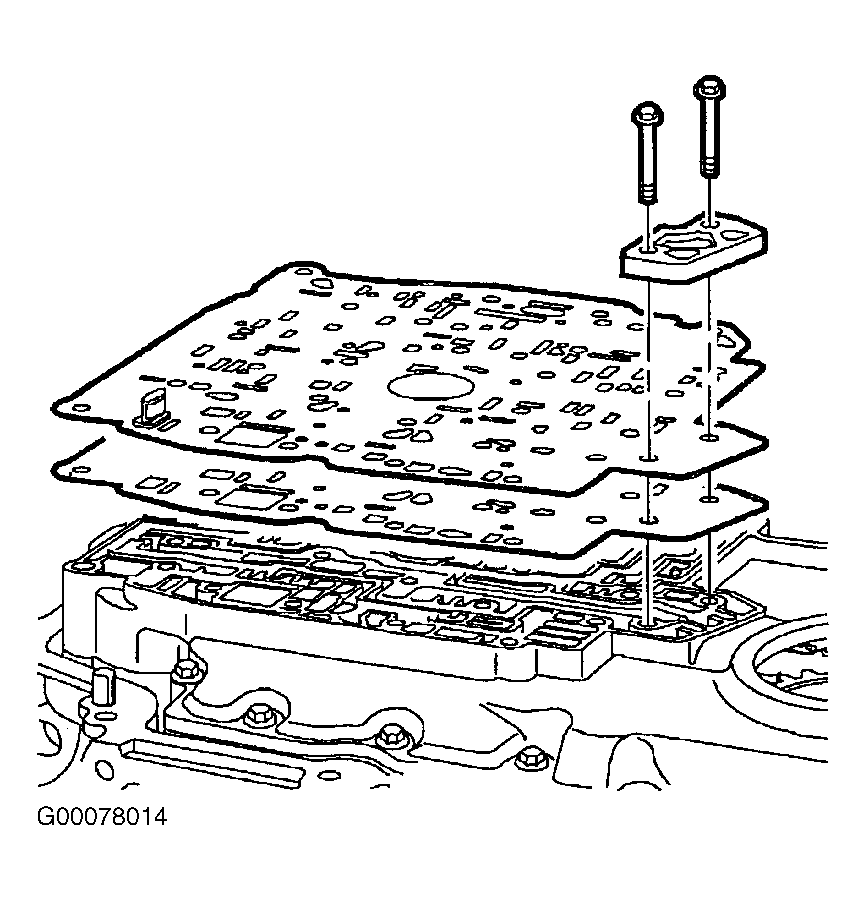

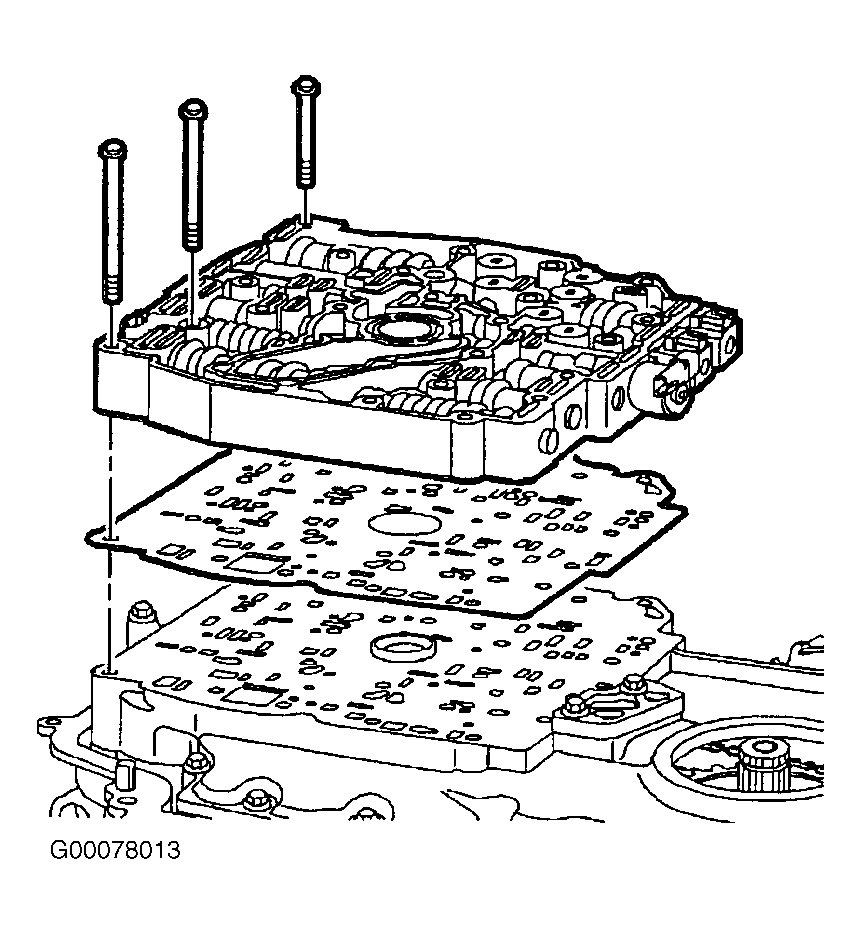

- Hand start spacer plate support bolts, and install spacer plate support. See Figure. Tighten spacer plate support bolts to specification. See TORQUE SPECIFICATIONS . Install a new control valve body-to-spacer plate gasket onto spacer plate. Install control valve body assembly onto gasket. Hand start control valve body assembly bolts, to hold valve body in place. See Figure.
- Inspect TFP switch assembly in order to verify condition and correct location of pressure switch O-rings. If necessary, replace TFP switch assembly O-rings. Install TFP switch assembly onto control valve body assembly. Install remaining control valve body bolts. See Fig 2 and Fig 3 .

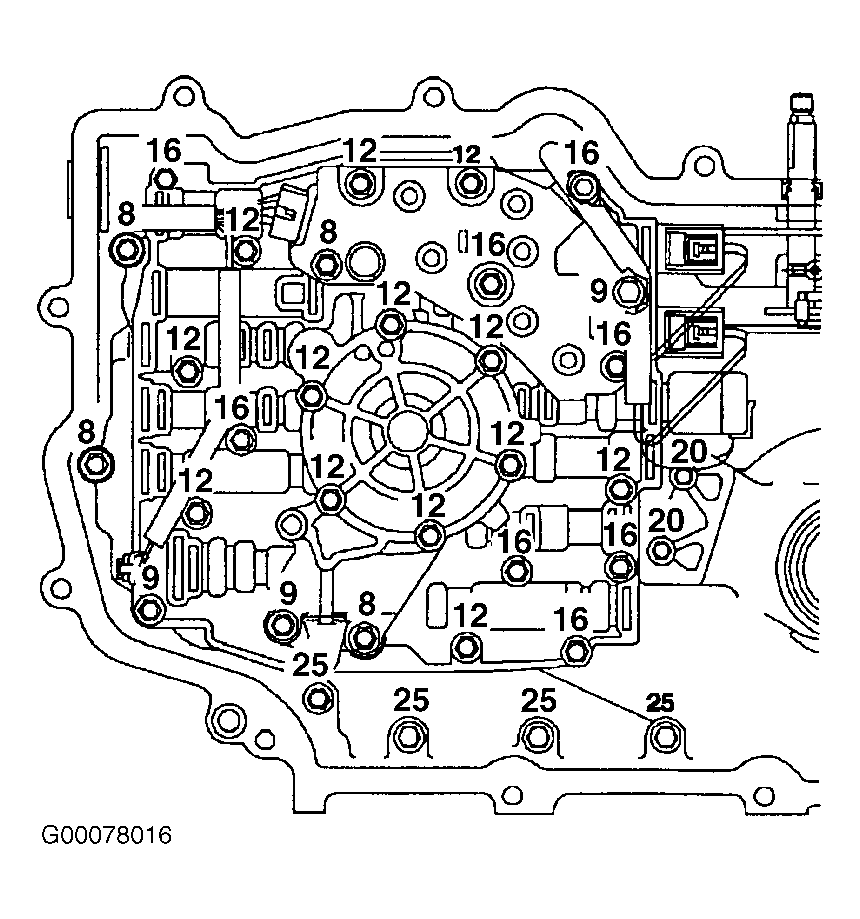

- Hand start bolts. Tighten control valve body bolts to specification. See TORQUE SPECIFICATIONS . Connect transaxle wiring harness to following components:
- TFP switch assembly.
- Pressure control solenoid (Red connector).
- TCC solenoid.
- 1-2 shift solenoid.
- 2-3 shift solenoid.

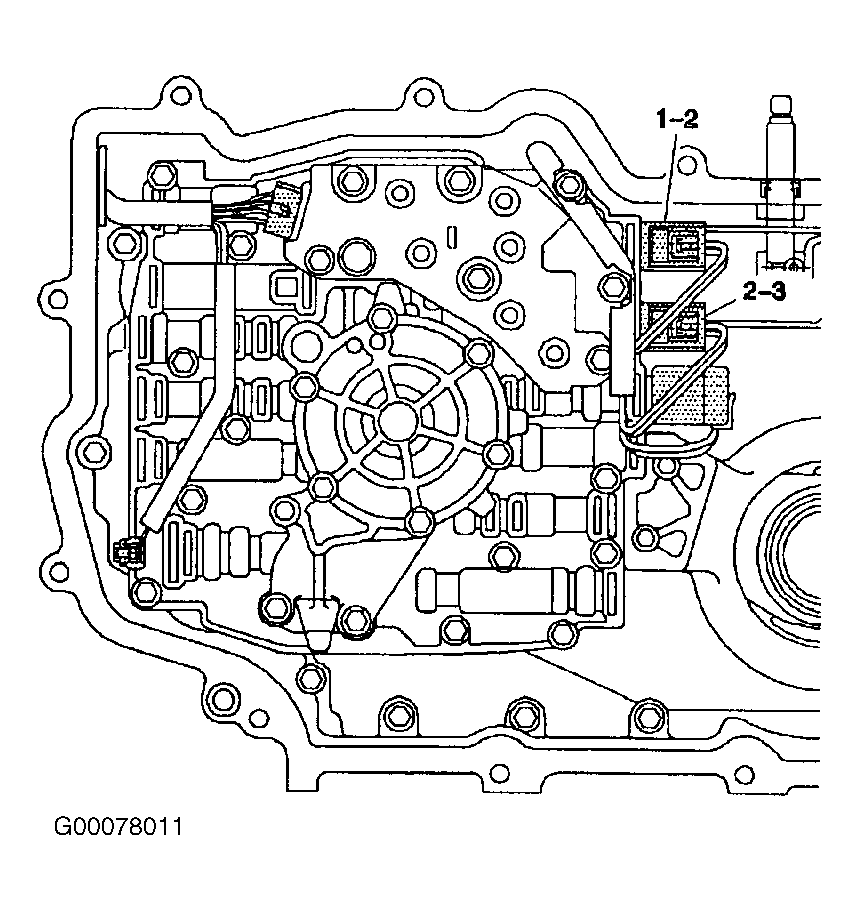

For shift solenoid identification, refer to illustration. See Figure.

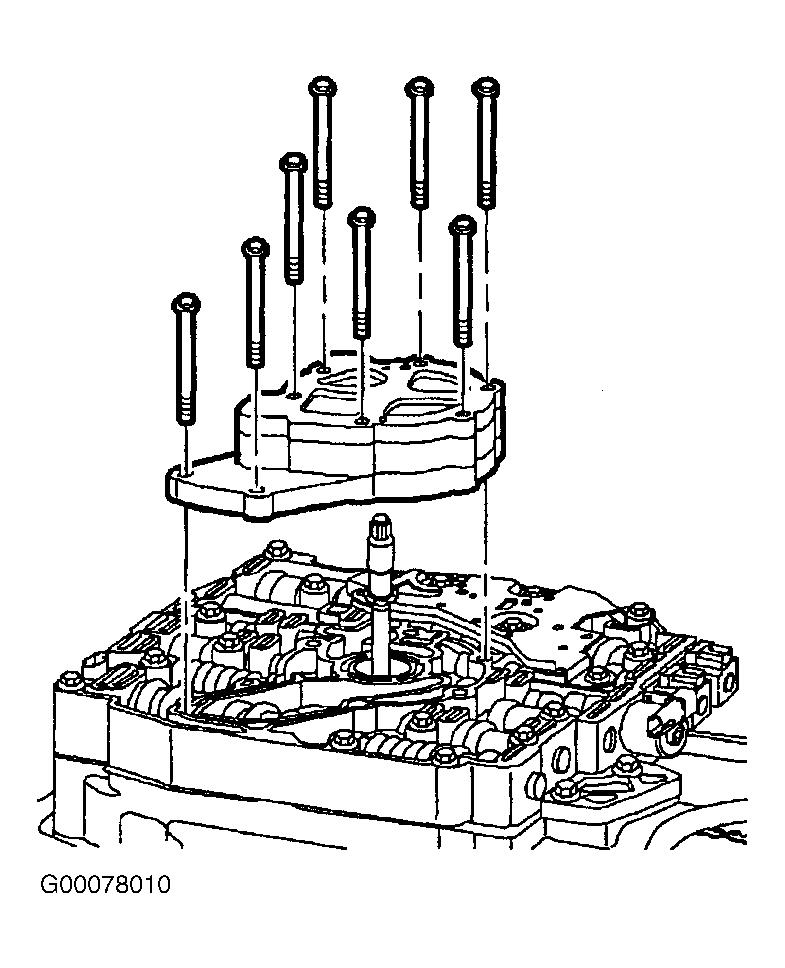

- Install oil pump shaft into control valve body assembly. Install oil pump assembly onto oil pump shaft and control valve body. Install and hand start oil pump assembly bolts. See Figure. Tighten oil pump bolts to specification. See TORQUE SPECIFICATIONS .
- Install transaxle case side cover. See TRANSAXLE CASE SIDE COVER . Start engine, warm up transaxle, and check for leaks. Check for proper fluid level. See CHECKING FLUID LEVELS under LUBRICATION.
NOTE:
1-2 shift solenoid wires are Red and Green and 2-3 shift solenoid wires are Red and Yellow.
NOTE:
If necessary, rotate oil pump shaft while installing oil pump assembly in order to engage shaft splines to splines on oil pump rotor.
