Brake Light Switch: Service and Repair

REMOVAL

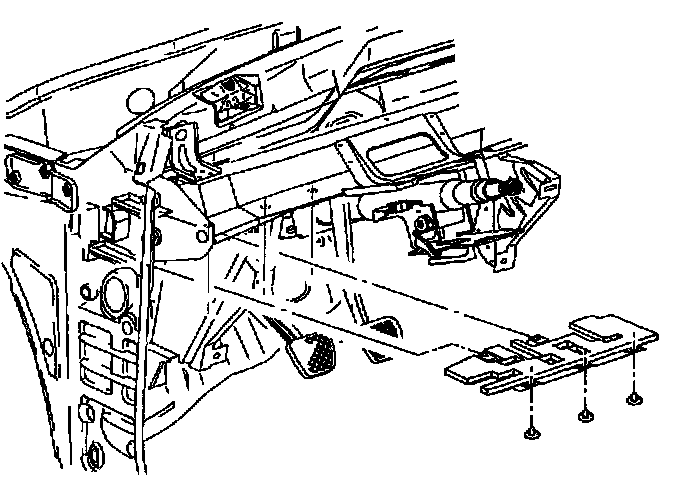

1. Remove left lower I/P closeout panel (hush panel) push pins and remove.





2. Disconnect electrical connector.
3. Disconnect switch by rotating it 180 degrees and then pull out of bracket.

INSTALLATION
1. Install switch into bracket and rotate 180 degrees.
2. Install electrical connector.
3. Install left lower I/P closeout panel (hush panel).
