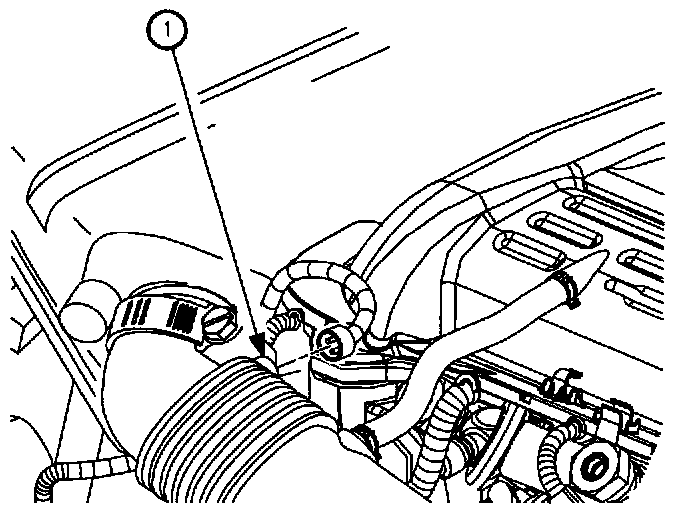

Air Temperature Sensor ( Ambient / Intake ): Service and Repair

REMOVAL
1. Turn ignition Off.
2. Disconnect electrical connector from IAT sensor.
3. Remove intake air temperature sensor.

INSTALLATION
1. Install IAT sensor.
2. Connect electrical connector to the air intake temperature sensor. Push in on connector until a click is heard and pull back to confirm a positive engagement.
