Mode 6 - L - Series W/V6: 2000-2003

Fig 1: Mode $06 Data Definitions For L-Series W/V6 (1 Of 3)
G00414383Courtesy of GENERAL MOTORS CORP.

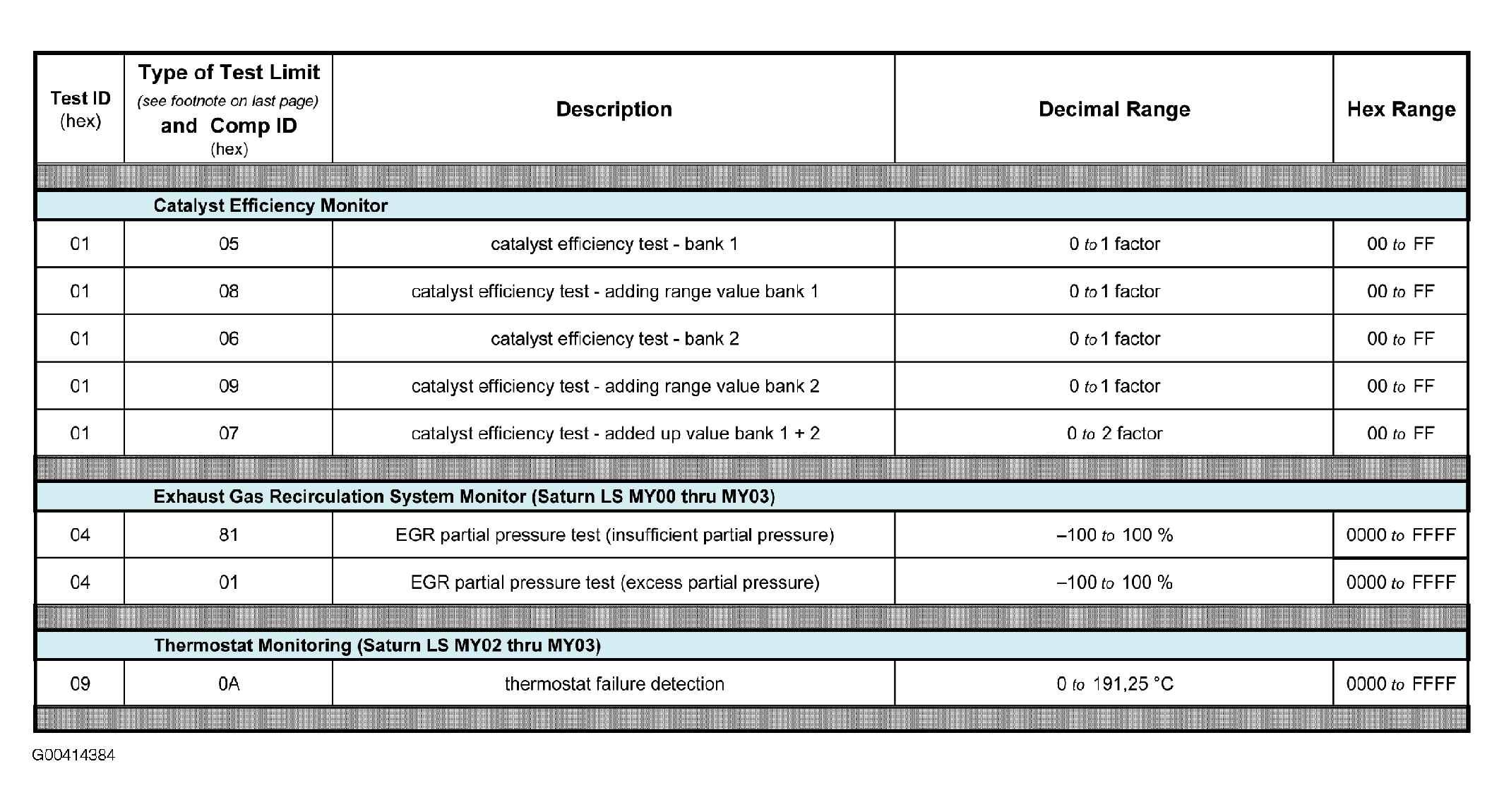

Fig 2: Mode $06 Data Definitions For L-Series W/V6 (2 Of 3)
G00414384Courtesy of GENERAL MOTORS CORP.

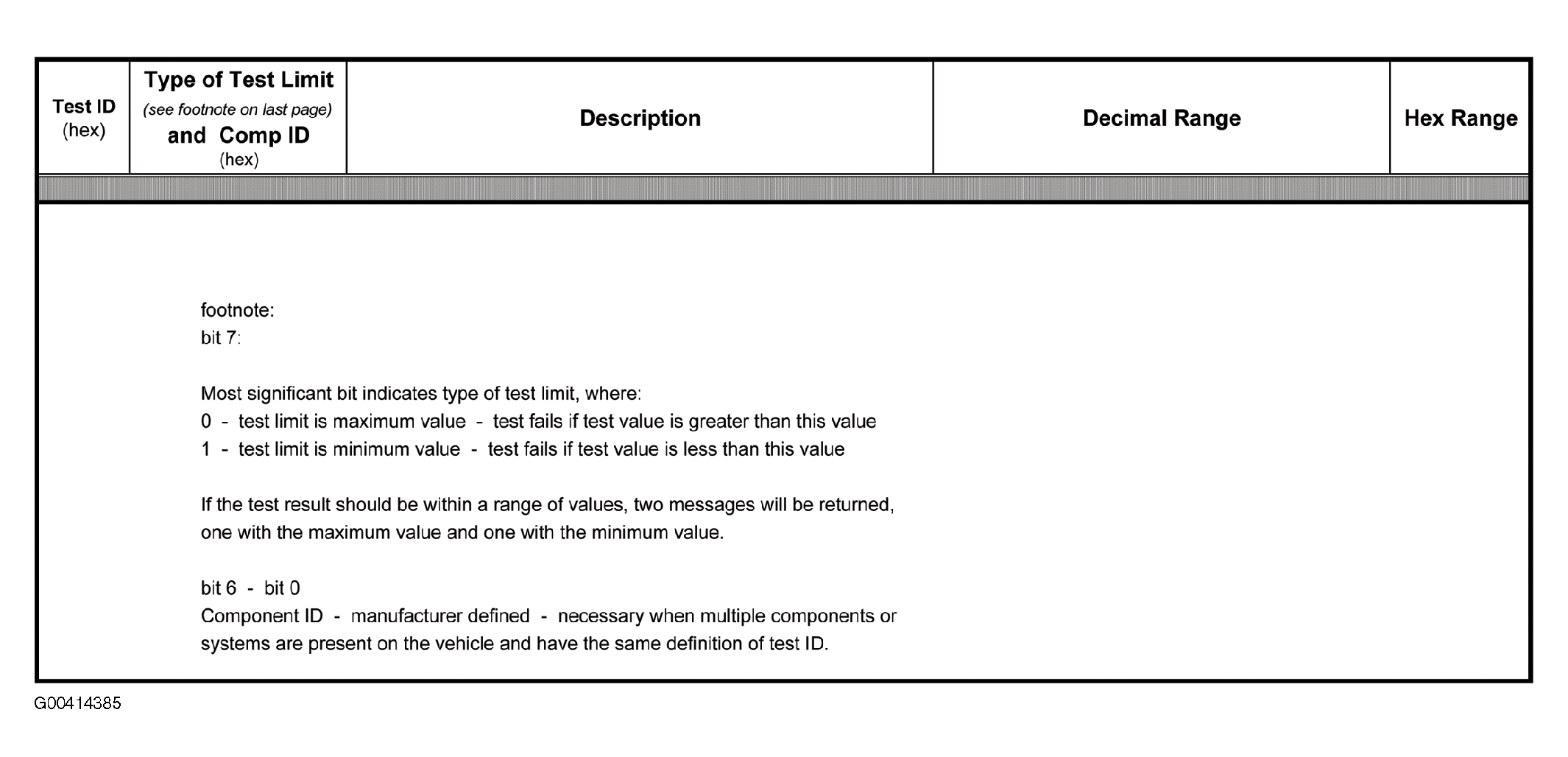

Fig 3: Mode $06 Data Definitions For L-Series W/V6 (3 Of 3)
G00414385Courtesy of GENERAL MOTORS CORP.
