Alternator: Service and Repair

REMOVAL




1. Disconnect negative battery cable.

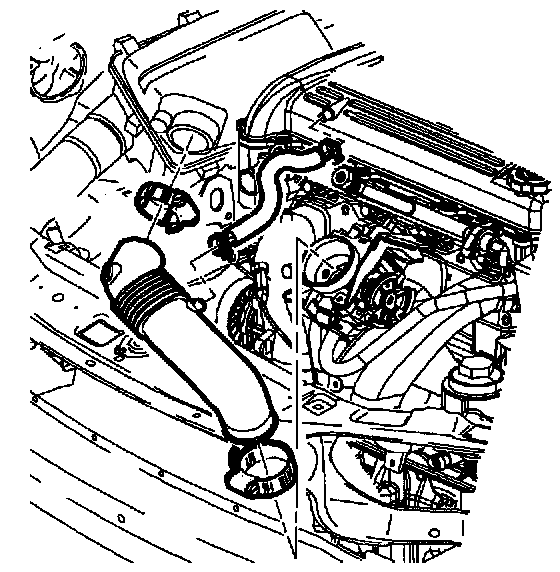

2. Remove throttle body air duct.

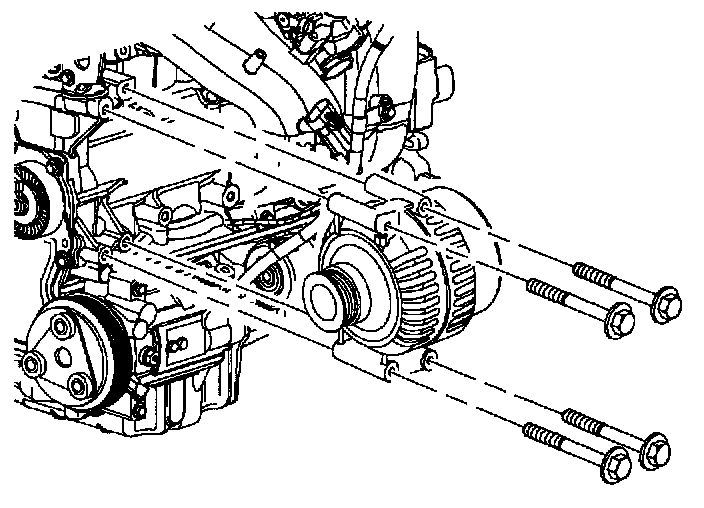

3. Remove accessory drive belt.
4. Disconnect two generator electrical connections.
5. Remove generator to engine block bolts.

INSTALLATION




1. Position generator and install top bolts finger tight.
2. Install bottom bolts and tighten all generator bolts.

Torque: 40 N.m (30 ft-lbs)

3. Connect two generator electrical connections.
4. Install accessory drive belt.
5. Install throttle body air duct.
6. Connect negative battery cable.
