Left Instrument Panel Fuse Block

Left instrument panel fuse block is located under driver's side of instrument panel, on kick panel. See Fig 1 .

Fig 1: Locating Fuse Blocks

Courtesy of GENERAL MOTORS CORP.

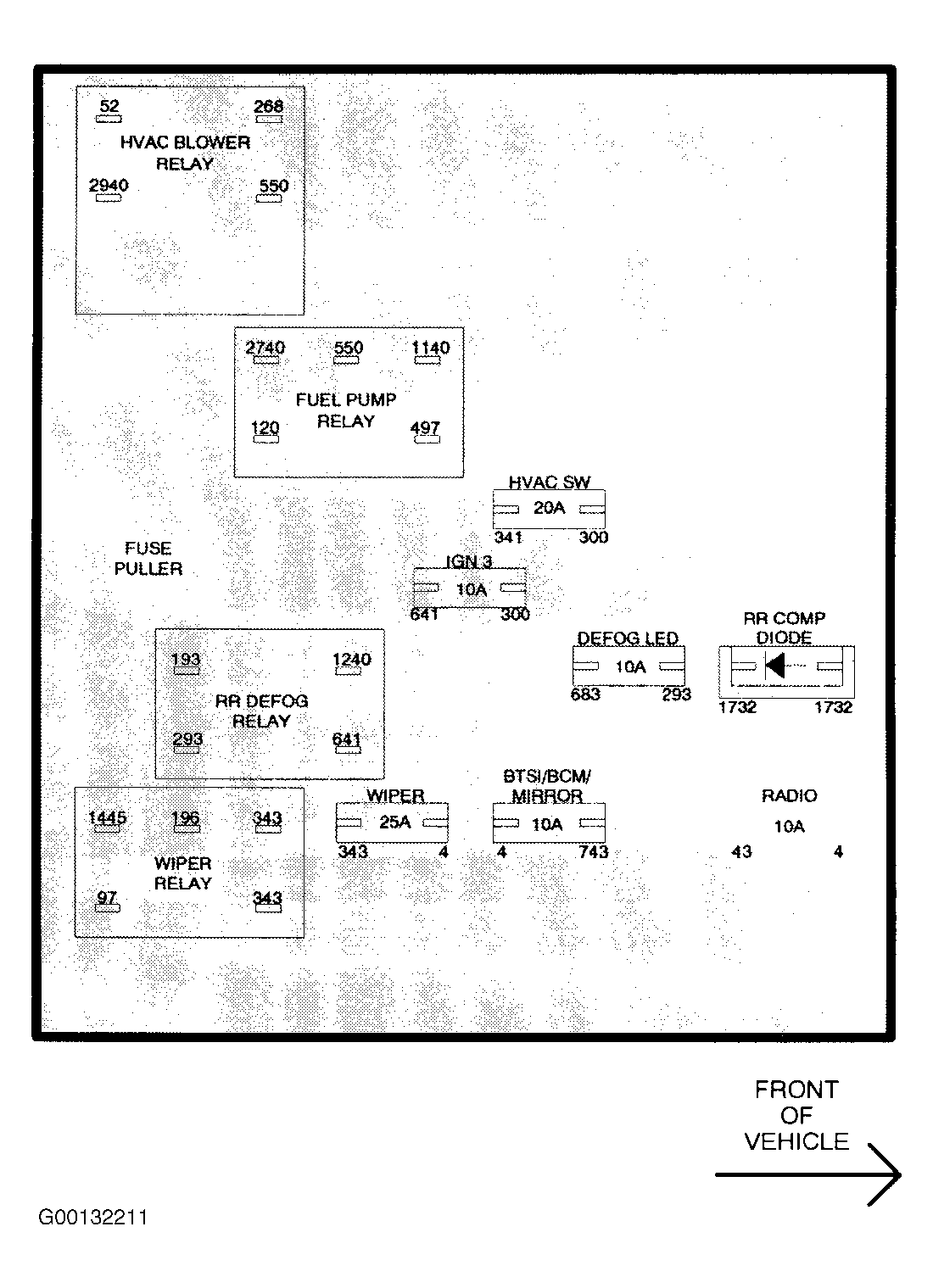

Fig 2: Identifying Left Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

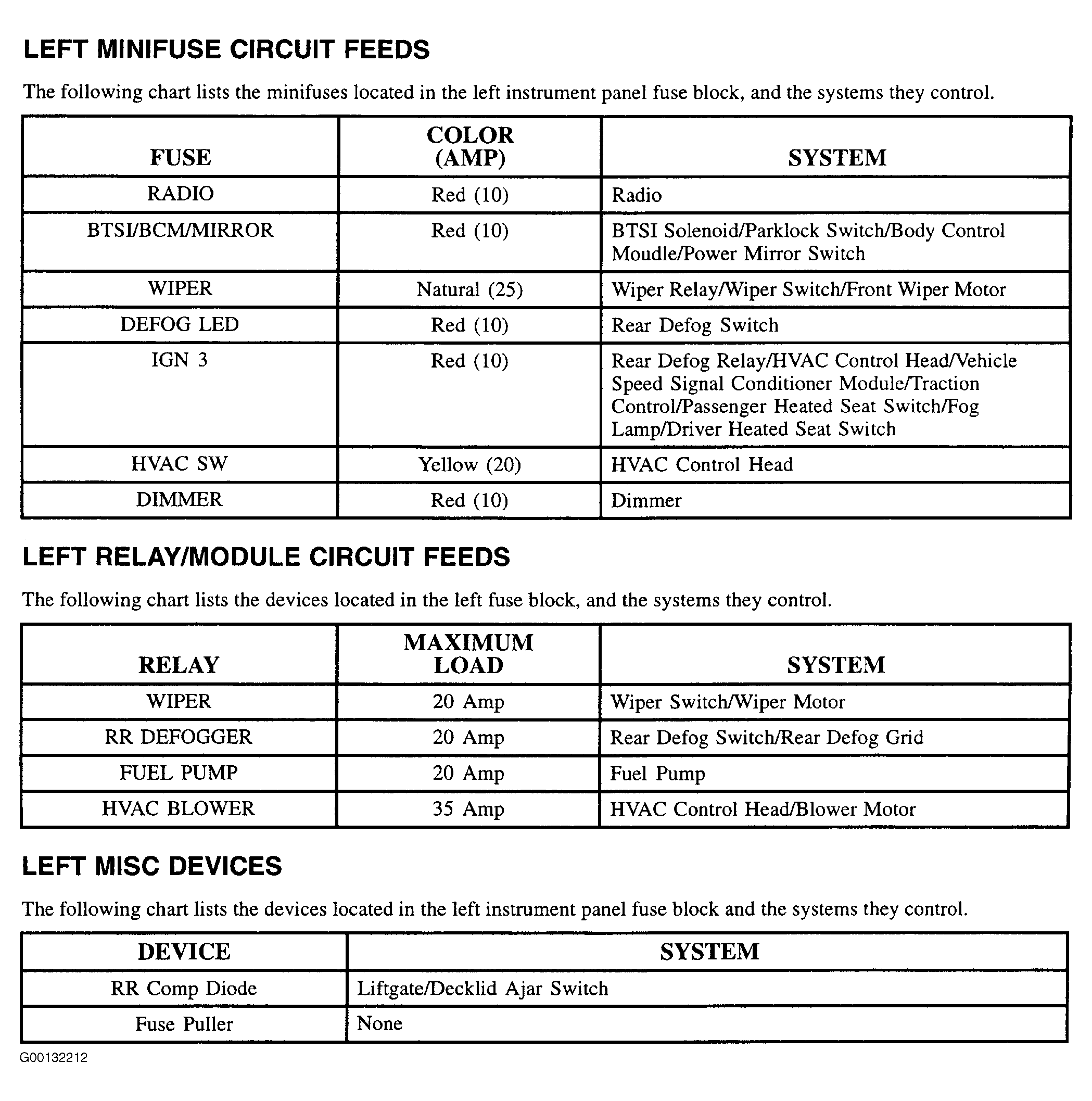

Fig 3: Left Instrument Panel Fuse Block Legend

Courtesy of GENERAL MOTORS CORP.
