Keyless Entry

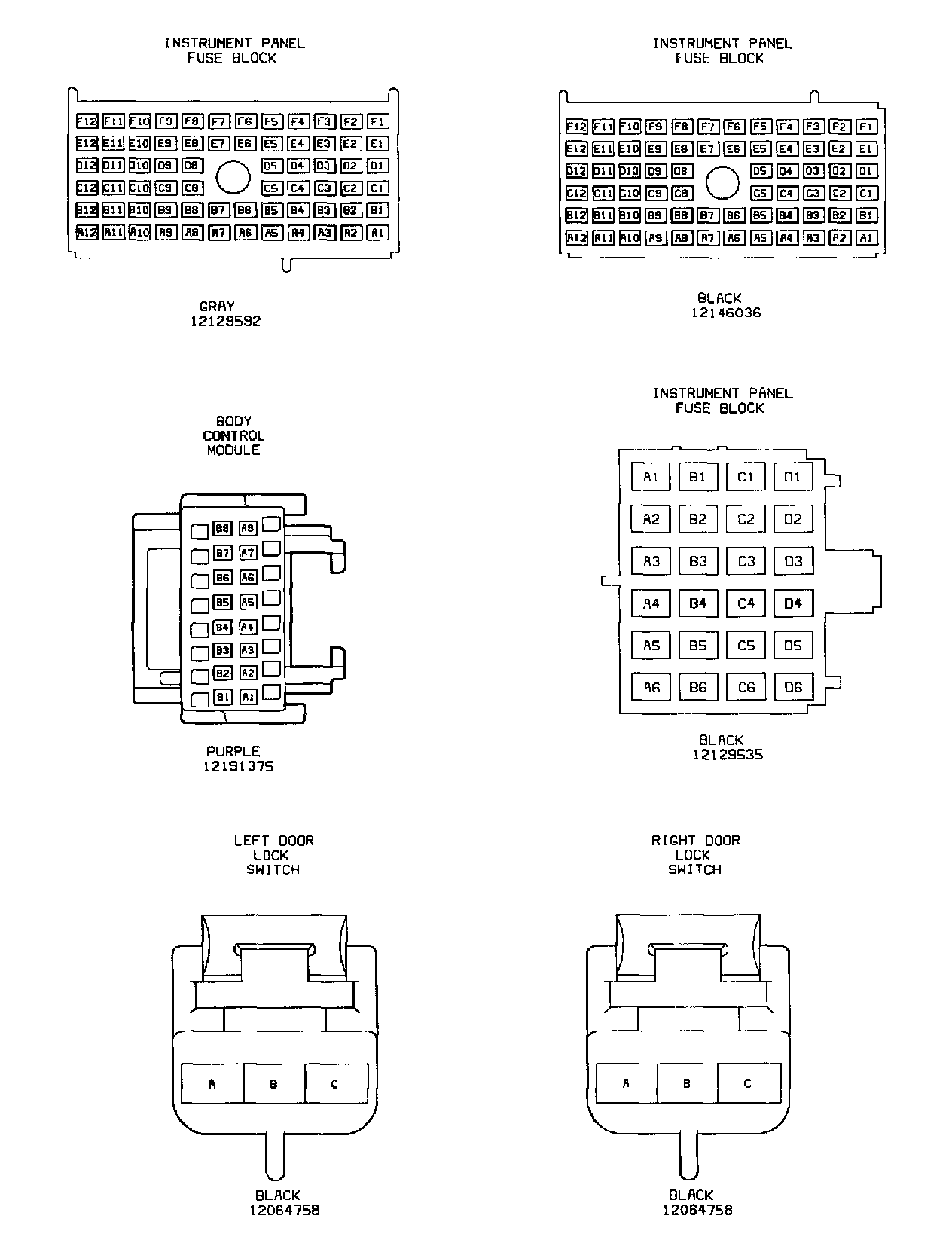

RKE/Security System Connector Face Views:

NOTE: For complete Connector/Wire information, refer to Diagrams.
