Body Control Module
>>
Diagrams
>>
J2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
J2

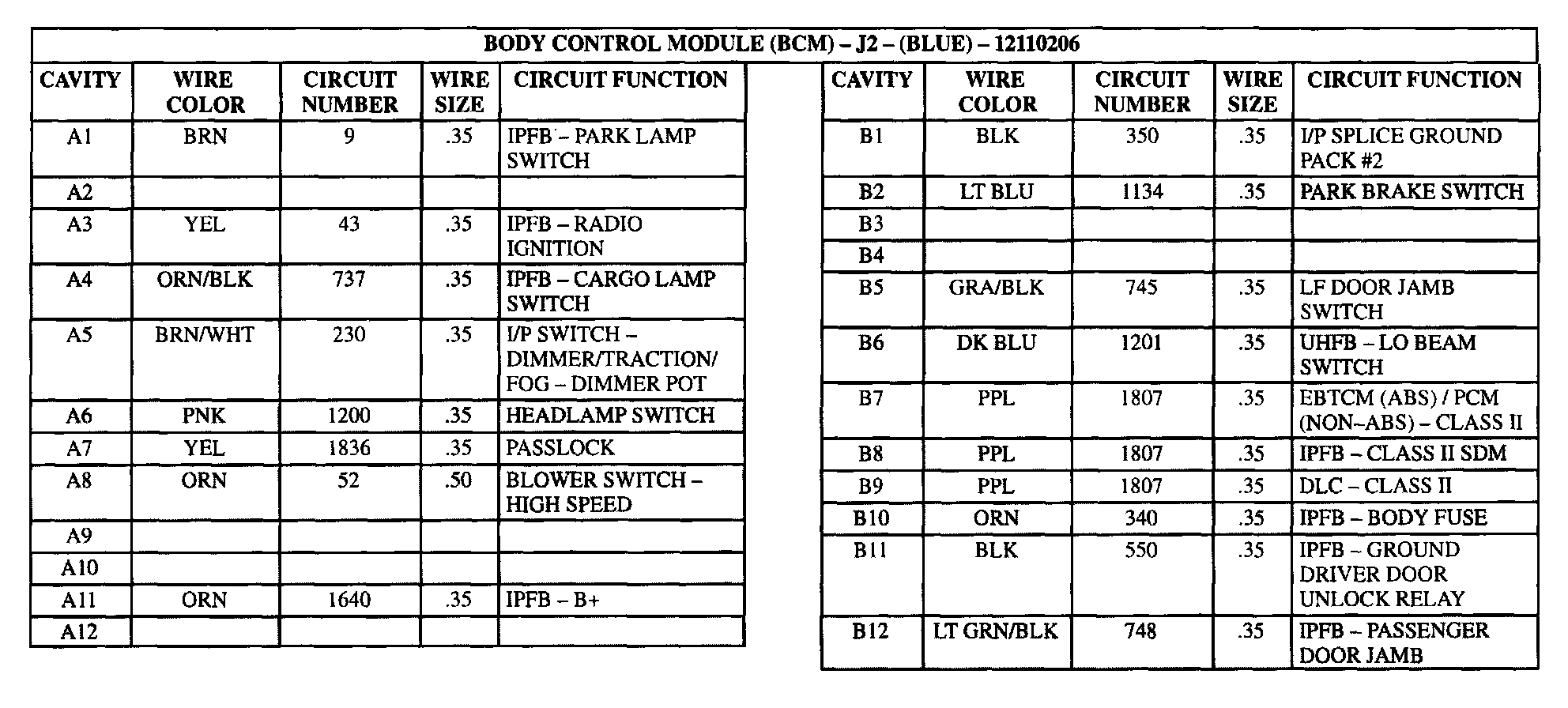

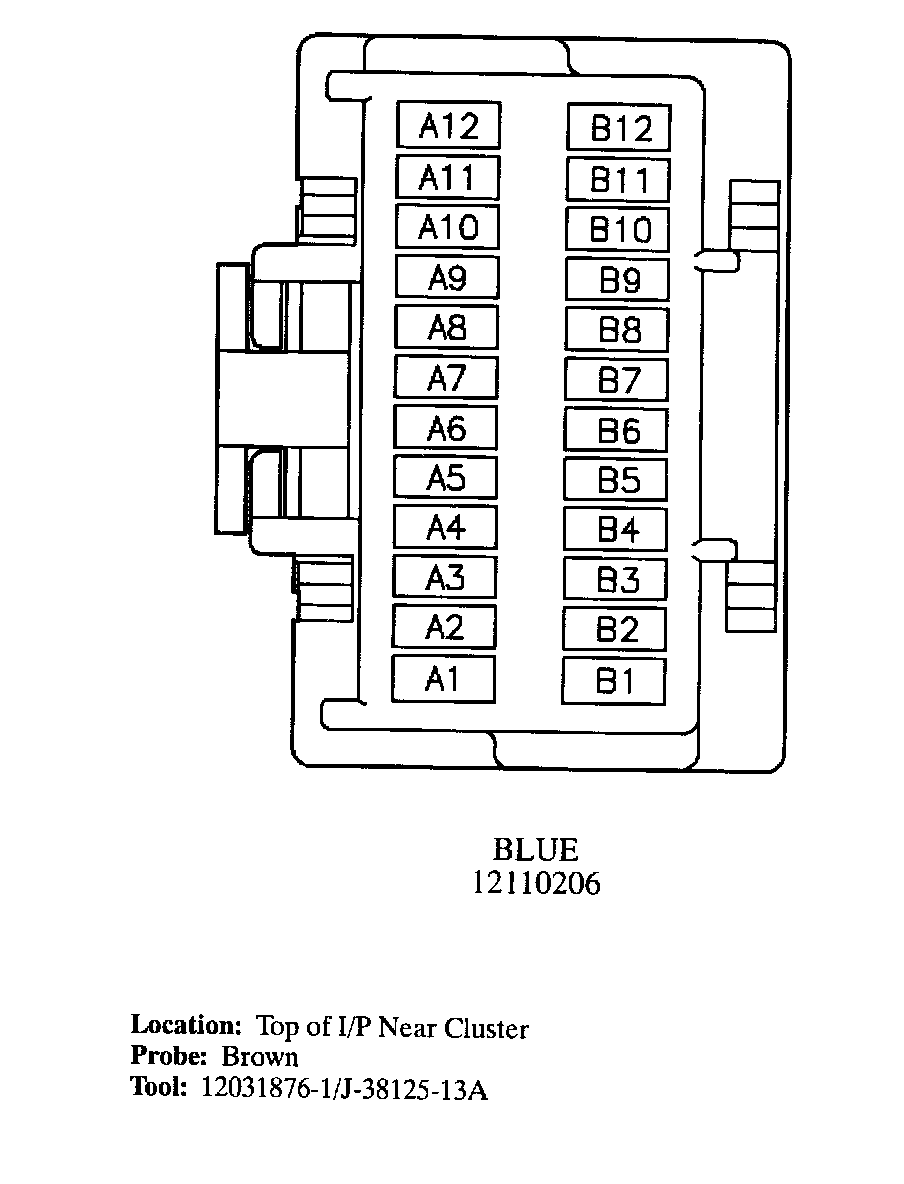

Body Control Module (BCM) - J2 (Part 1 Of 2):
Body Control Module (BCM) - J2 (Part 2 Of 2):
